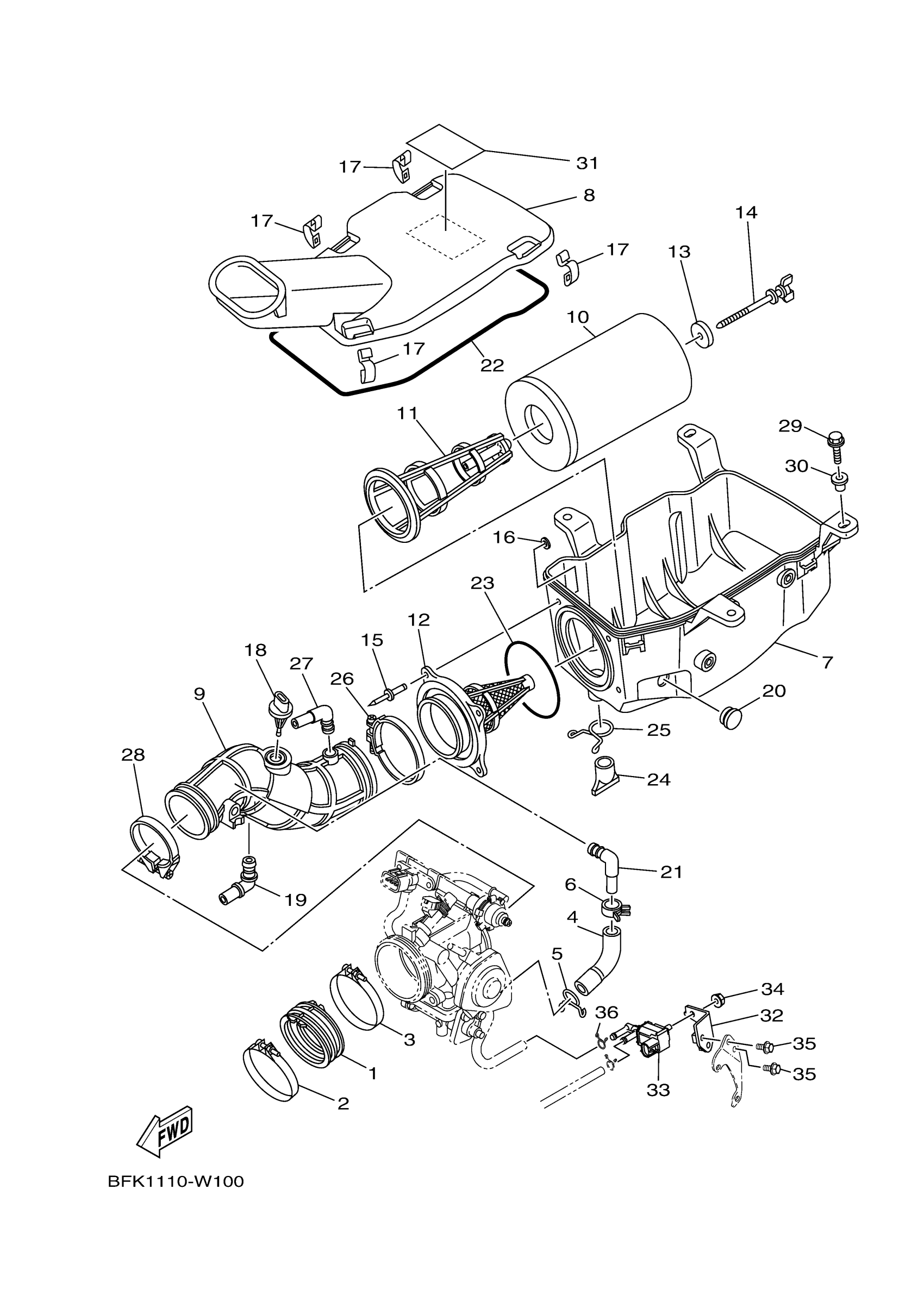

Yamaha YFM70RCCSL (RAPTOR 700R CAL) BFKH 2025 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5VK-13586-00-00

$31.99

2

HOSE CLAMP ASSY

90450-72003-00

$18.99

3

HOSE CLAMP ASSY

90450-72003-00

$18.99

4

HOSE 1

1PE-E3545-00-00

$9.49

5

CLIP

90467-160A4-00

$8.49

6

CLIP (806-24358-00)

90467-15012-00

$8.49

7

CASE, AIR CLEANER 1

1S3-14411-00-00

$53.99

8

CAP, CLEANER CASE 1

1S3-14412-01-00

$29.99

9

JOINT, AIR CLEANER

2LS-14453-01-00

Unavailable

10

ELEMENT, AIR CLEAN

1S3-14451-01-00

$43.99

11

GUIDE

1S3-14458-00-00

Unavailable

12

HOLDER, GUIDE

1S3-14459-01-00

$49.99

13

WASHER (4H7)

90209-06096-00

$9.49

14

BOLT, WING

90122-06010-00

$10.49

15

RIVET, BLIND(80N)

90267-48138-00

$3.76

16

WASHER, PLATE

90201-04028-00

Unavailable

17

HOOK

5TH-14436-00-00

Unavailable

18

SENSOR, AIR TEMPERATURE

5VU-85886-00-00

Unavailable

19

PIPE

5KM-14419-00-00

Unavailable

20

PLUG

90338-18266-00

Unavailable

21

PIPE

31A-14419-00-00

Unavailable

22

SEAL

1VJ-14462-00-00

Unavailable

23

SEAL

1S3-14457-00-00

Unavailable

24

SEAL

59V-14457-00-00

Unavailable

25

CLIP

90467-220A1-00

Unavailable

26

HOSE CLAMP ASSY

90450-75002-00

Unavailable

27

PIPE

5TJ-14419-00-00

Unavailable

28

HOSE CLAMP ASSY

90450-59005-00

Unavailable

29

BOLT, FLANGE

90105-06084-00

Unavailable

30

COLLAR

90387-08073-00

Unavailable

31

PLATE, ROUTING

BFK-F1684-10-00

Unavailable

32

STAY 1

BFK-14493-00-00

Unavailable

33

SOLENOID VALVE ASSY

BG4-86120-00-00

Unavailable

34

NUT, FLANGE

95702-06500-00

Unavailable

35

BOLT, FLANGE

95817-06012-00

Unavailable

36

CLIP

90467-090A2-00

Unavailable
