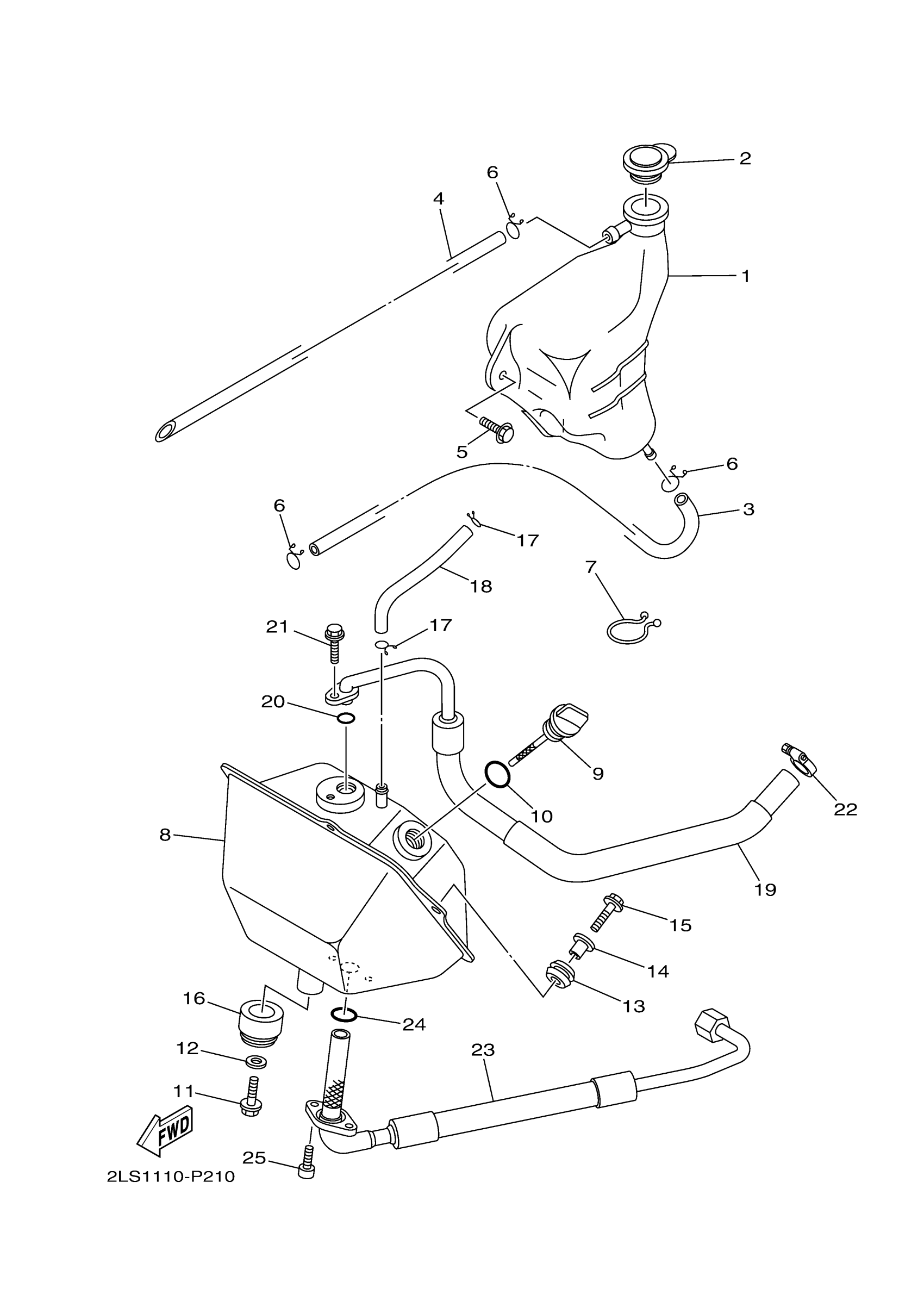

Yamaha YFM70RCCSG (RAPTOR 700R SE CAL) BFKJ 2025 OIL TANK Diagram

#

Description
Price

1

TANK, RECOVERY

1PE-F1871-00-00

$33.27

2

CAP

1S3-21875-00-00

$8.50

3

HOSE (L865)

90445-09021-00

$29.52

4

HOSE (L420)

90445-092K1-00

$10.47

5

BOLT, WITH WASHER

90119-06152-00

$2.56

6

CLIP 101235600

90467-08003-00

$5.88

7

CLAMP

90464-25267-00

$5.53

8

OIL TANK ASSY

1S3-21750-10-00

Unavailable

9

GAUGE, LEVEL

5LP-21761-01-00

$8.31

10

O-RING

93210-21190-00

$5.37

11

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

12

WASHER, PLATE (4L0)

90201-082A6-00

$2.80

13

GROMMET(1VJ)

90480-13459-00

$1.58

14

COLLAR

90387-06205-00

$4.90

15

BOLT, FLANGE DEEP RECESS

95D32-06020-00

$0.71

16

GROMMET

90480-24004-00

Unavailable

17

CLIP

90467-100A1-00

Unavailable

18

HOSE (L147)

90445-11034-00

Unavailable

19

HOSE, OIL 2

2LS-13465-10-00

Unavailable

20

O-RING (371)

93210-10197-00

Unavailable

21

BOLT, FLANGE DEEP RECESS

95E32-06016-00

Unavailable

22

HOSE CLAMP ASSY

90450-18M09-00

$9.82

23

HOSE, OIL 1

1S3-13464-11-00

Unavailable

24

O-RING (26H)

93210-16629-00

Unavailable

25

BOLT(3MA)

91312-06016-00

Unavailable
