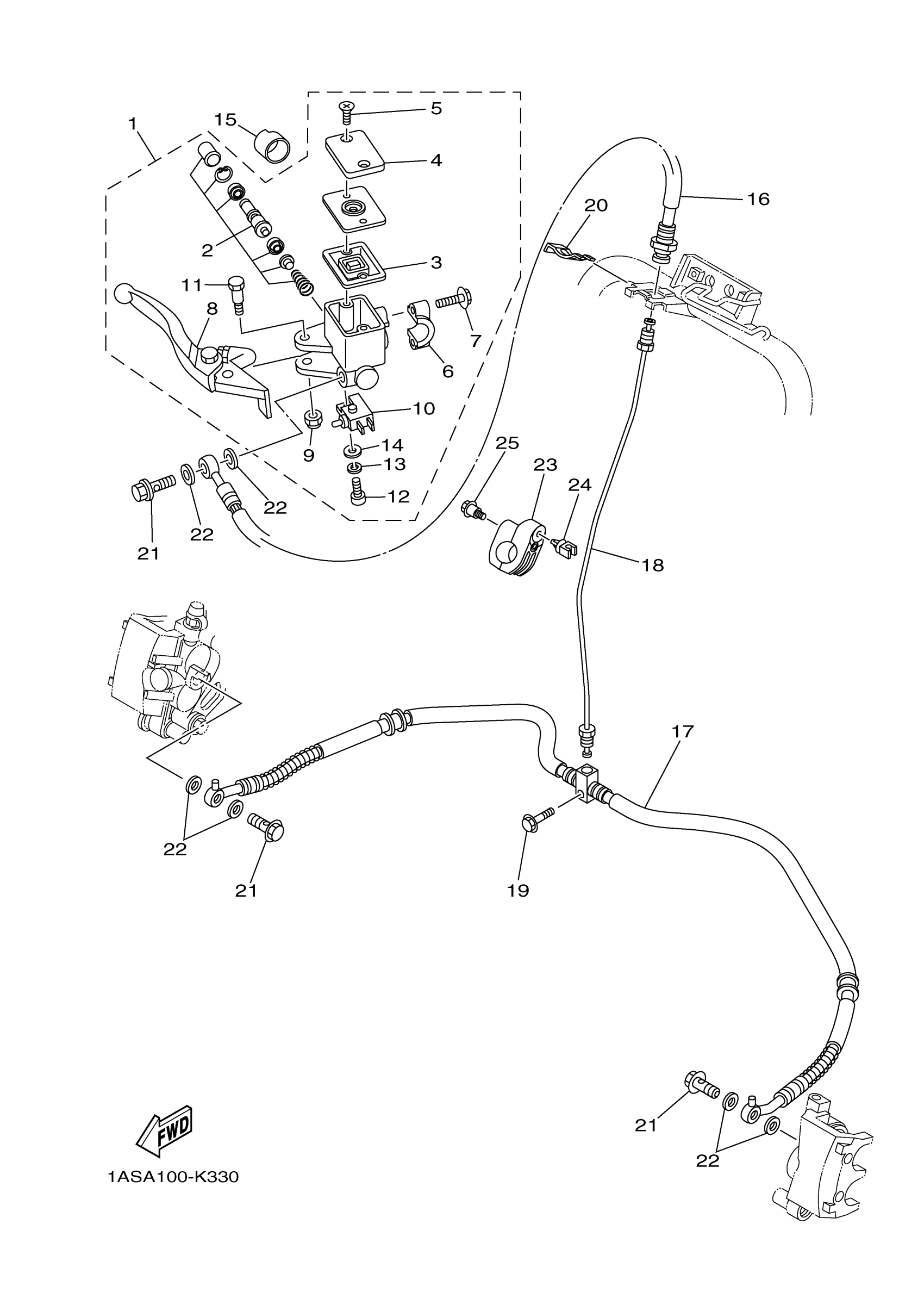

Yamaha YFM70RCCSG (RAPTOR 700R SE CAL) BFKJ 2025 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

5D3-2583T-02-00

$280.99

2

CYLINDER KIT, MASTER

5HH-W0041-00-00

$41.99

3

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$18.49

4

CAP, RESERVOIR

5YU-25852-00-00

$36.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$20.99

7

BOLT, FITTING

5MV-25833-00-00

$6.99

8

LEVER 2

5D3-83922-01-00

$96.99

9

NUT, FLANGE(7NB)

95780-06500-00

$2.60

10

FRONT STOP SWITCH ASSY

5D3-83980-00-00

Unavailable

11

BOLT, LEVER

3B4-2589F-30-00

$12.99

12

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

WASHER, PLAIN (646)

92990-04600-00

$5.99

15

COLLAR

1UY-26259-00-00

$19.49

16

HOSE, BRAKE 1

1PE-F5872-01-00

Unavailable

17

HOSE, BRAKE 2

5TG-25873-21-00

Unavailable

18

PIPE, BRAKE

1PE-F5871-00-00

Unavailable

19

BLOT, FLANGE DEEP RECESS

95D32-06025-00

Unavailable

20

CIRCLIP

2GU-25866-00-00

Unavailable

21

BOLT, UNION

90401-10015-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

HOLDER

1AS-25522-01-00

Unavailable

24

CLAMP 1

5KM-81677-00-00

Unavailable

25

BOLT

90109-06241-00

Unavailable
