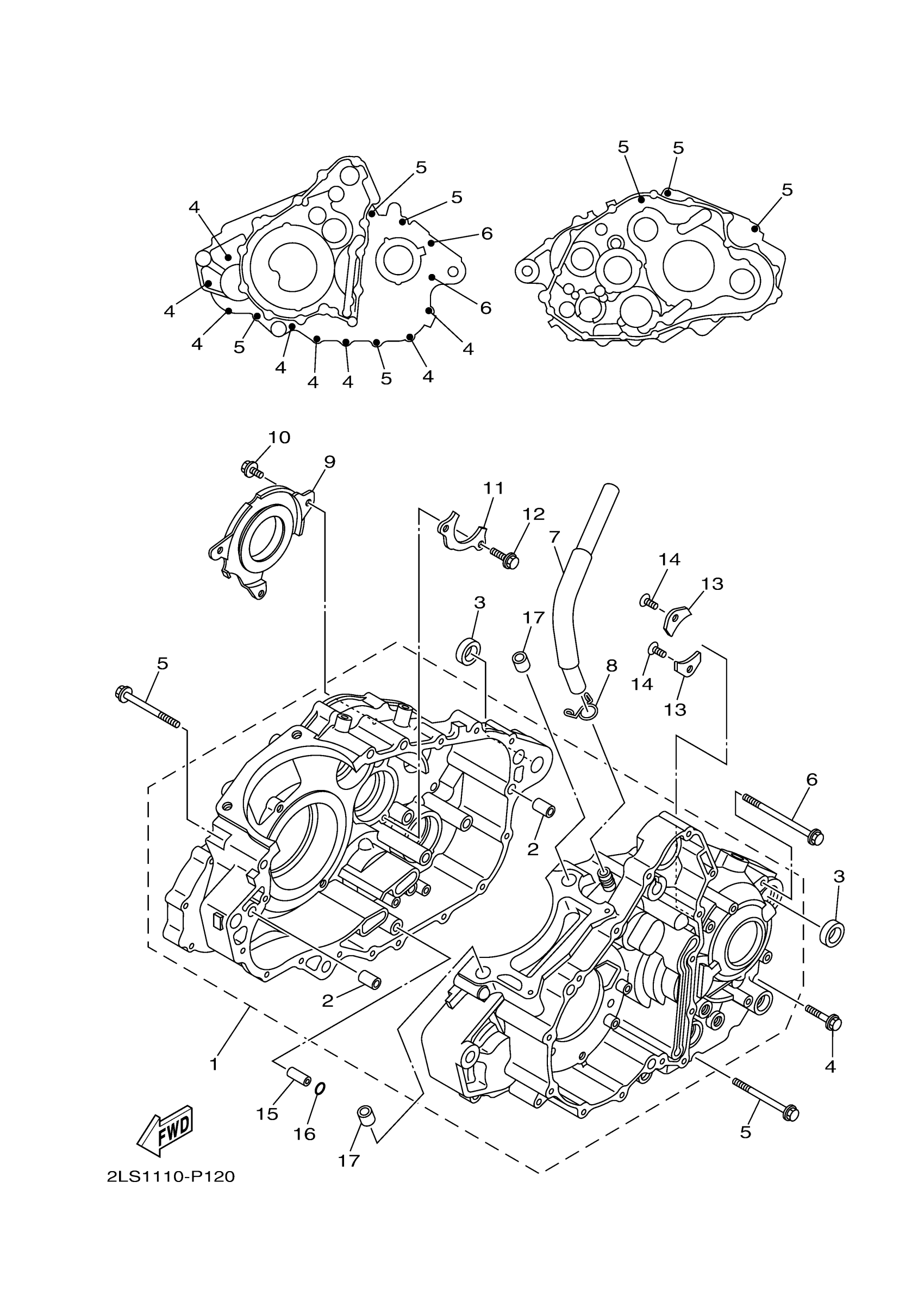

Yamaha YFM70RCCPL (RAPTOR 700R CALIF) BFK9 2023 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

1PE-15100-09-00

$1,291.99

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

COLLAR

90387-17009-00

$15.99

4

BOLT, FLANGE

95022-06030-00

$3.72

5

BOLT, FLANGE

95022-06070-00

$2.22

6

BOLT, FLANGE

95022-06090-00

$2.34

7

PIPE, BREATHER 1

2LS-E1166-00-00

Unavailable

8

CLIP

90467-140A4-00

$9.49

9

PLATE, BREATHER

1S3-11165-00-00

$17.49

10

BOLT, FLANGE

95022-06012-00

$3.29

11

PLATE, BEARING COVER

1S3-15383-00-00

$7.99

12

BOLT, FLANGE

95022-06020-00

$3.62

13

PLATE, BEARING COVER

4JT-15381-01-00

$13.49

14

SCREW, COUNTERSUNK

90151-06052-00

$8.49

15

PIN, DOWEL(3XW)

91808-16023-00

$8.49

16

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

17

PIN, DOWEL

99530-14016-00

Unavailable
