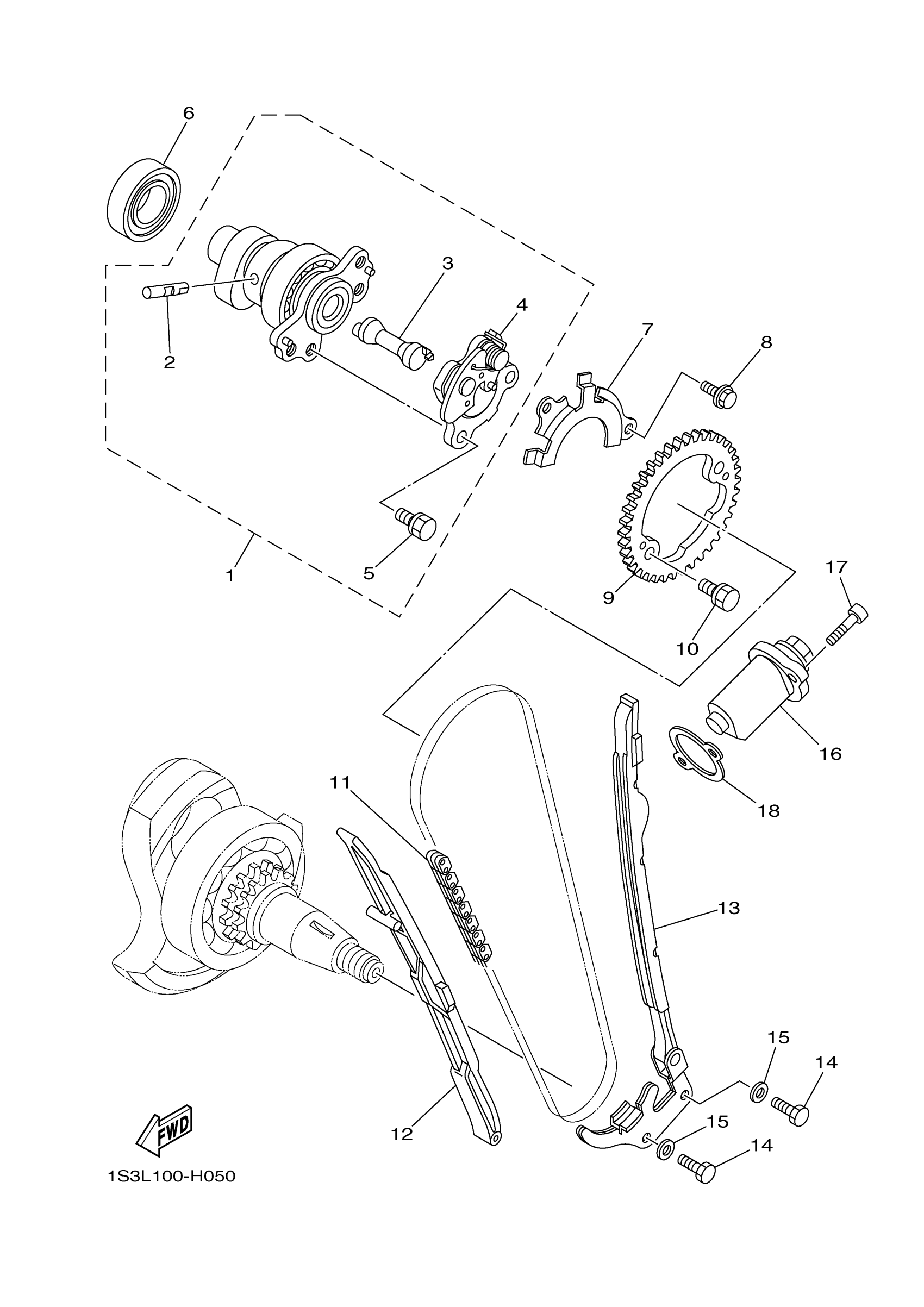

Yamaha YFM70RCCMY (RAPTOR 700R SPECIAL EDITION CALIF) BFK31 2021 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

2LS-12170-00-00

$437.99

PIN, DECOMPRESSION LEVER

5VK-12284-00-00

$22.99

LEVER, DECOMPRESSION SPRING

1S3-12290-00-00

$61.99

DECOMPRESSION ASSY

1S3-12280-01-00

$106.99

BOLT, FLANGE

90105-07006-00

$8.49

BEARING

93306-07209-00

$44.99

PLATE

5VK-1111F-00-00

$15.49

BOLT, FLANGE

95022-06012-00

$3.29

SPROCKET, CAM CHAIN

1S3-12176-00-00

$74.99

BOLT, FLANGE

90105-07006-00

$8.49

CHAIN

94591-57126-00

$38.99

GUIDE, STOPPER 1

5VK-12231-00-00

$43.99

GUIDE, STOPPER 2

1S3-12241-01-00

$45.99

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, PLAIN (646)

92990-06600-00

$2.80

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

Unavailable

BOLT,SOCKET

91317-06025-00

Unavailable

GASKET, TENSIONER CASE

4DW-12213-00-00

Unavailable
