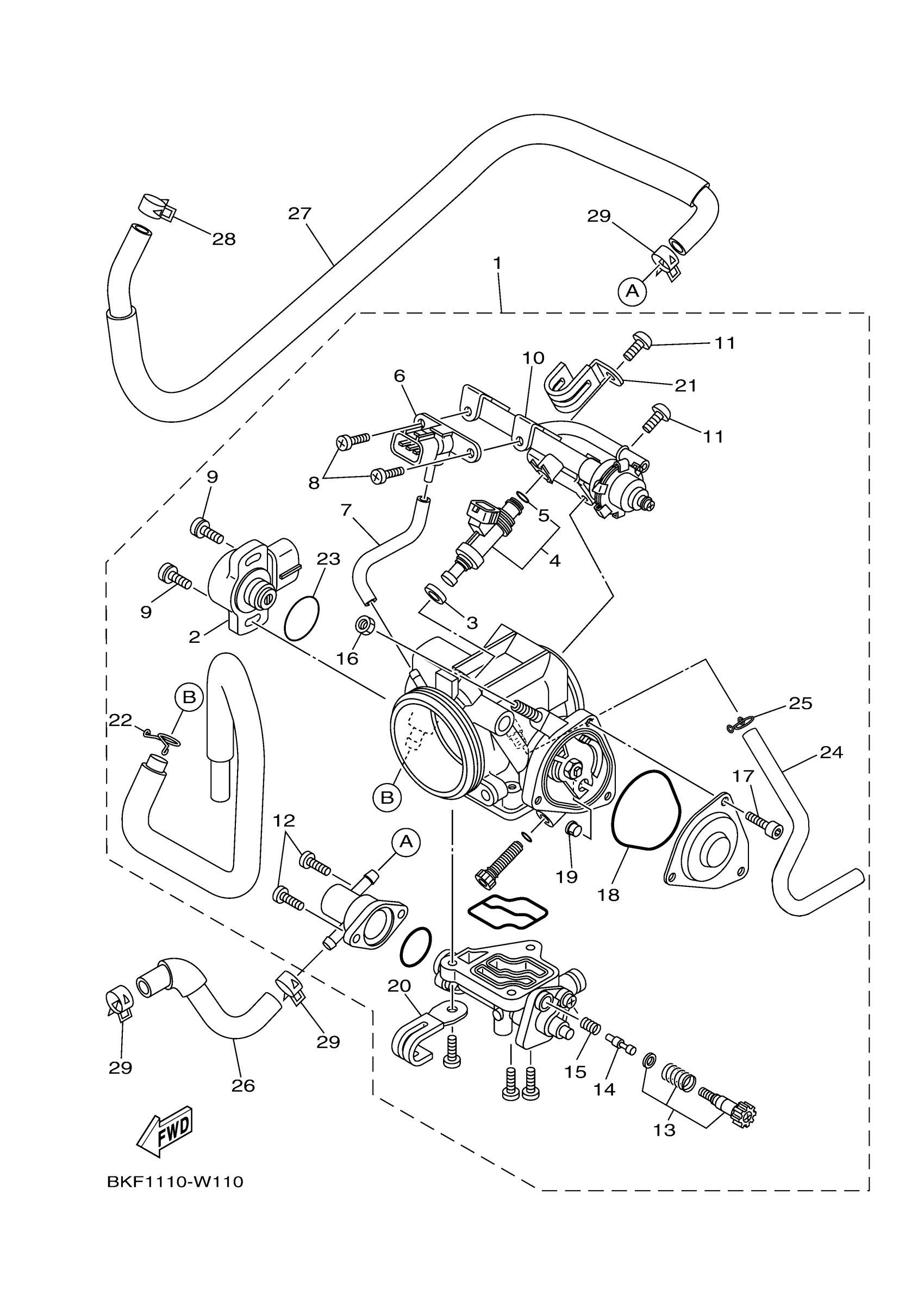

Yamaha YFM70RCBTS (RAPTOR 700 CAL) BFKL 2026 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

BFK-13750-10-00

$785.99

2

THROTTLE SENSOR AS

8GL-85885-01-00

$76.17

3

GASKET, MANIFOLD

8FP-13556-00-00

$12.27

4

INJECTOR ASSY

5VK-13761-00-00

$228.09

5

O-RING

5PS-14147-00-00

$9.05

6

SENSOR, PRESSURE

1C7-82380-00-00

$158.39

7

PIPE 1

5JW-14348-00-00

$18.31

8

SCREW, PAN

98507-06010-00

$2.69

9

SCREW

8CC-14216-10-00

$7.12

10

DELIVERY PIPE ASSY 1

1S3-13160-00-00

$343.85

11

SCREW, PAN

98517-06012-00

$3.14

12

SCREW, PAN

98517-05012-00

$3.91

13

ADJUST SCREW SET

5VX-14503-00-00

$73.65

14

PLUNGER

1S3-13493-00-00

$43.08

15

. SPRING, AIR ADJUSTING

4BH-14134-00-00

$2.66

16

NUT, CABLE ADJUSTING

1S3-14161-00-00

$6.38

17

BOLT

91312-04006-00

$2.71

18

O-RING

4WV-14147-10-00

$18.75

19

GUIDE, CABLE

1UY-14155-00-00

$15.83

20

PLATE

3JC-14146-00-00

$3.26

21

JET

5JW-14945-00-00

$5.43

22

CLIP

90467-090A2-00

$2.51

23

O-RING

5YP-14562-00-00

$6.62

24

HOSE, PCV

BFK-13878-00-00

$10.97

25

CLIP (8L2)

90467-08017-00

$7.51

26

HOSE 1

1PE-E243A-00-00

$9.97

27

HOSE 2

1PE-E243E-00-00

$30.09

28

CLIP(3BM)

90467-10135-00

$6.91

29

CLIP(3BM)

90467-10135-00

$6.91
