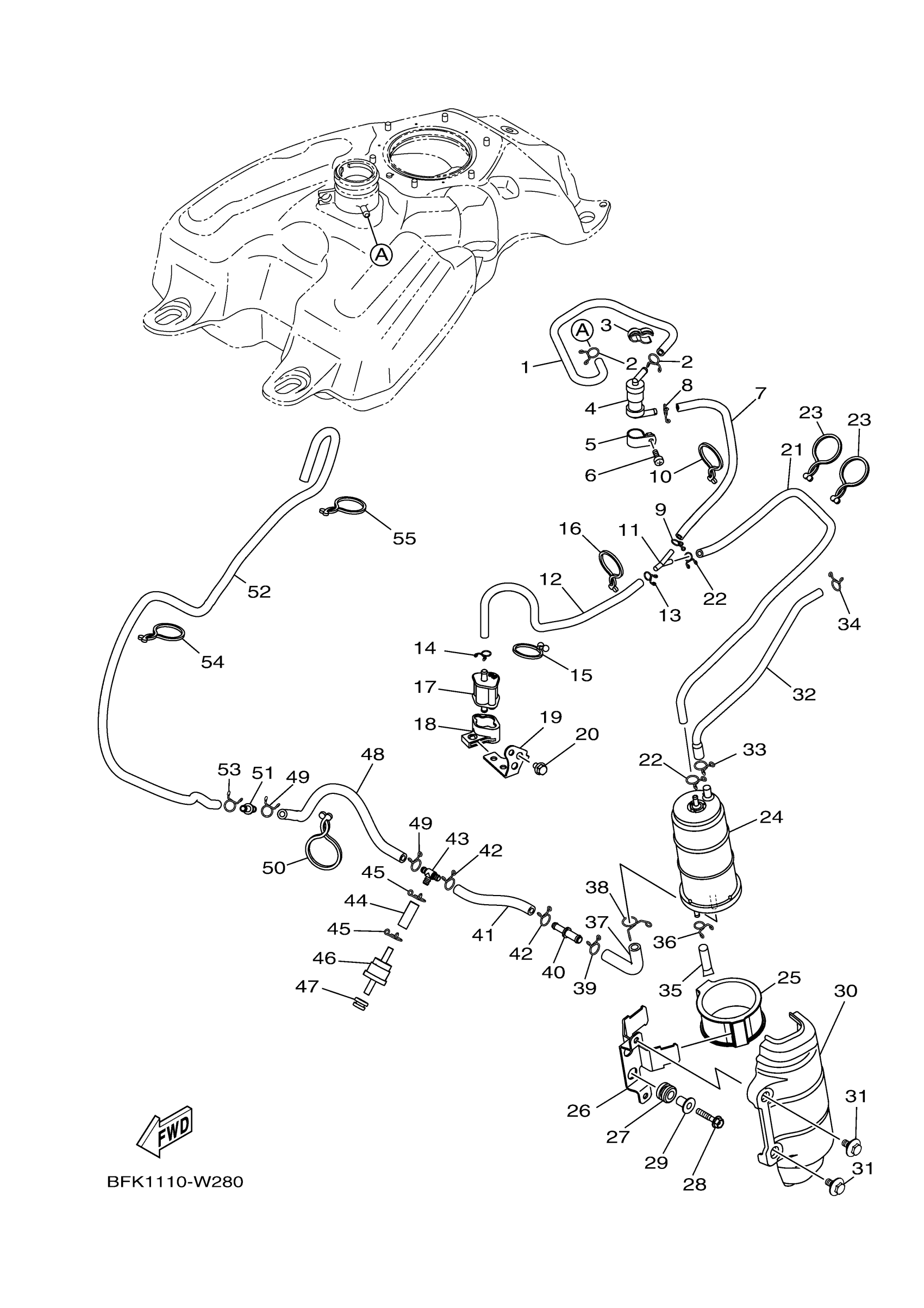

Yamaha YFM70RCBTS (RAPTOR 700 CAL) BFKL 2026 FUEL TANK 2 Diagram

#

Description
Price

1

HOSE 1

BFK-2247A-01-00

$24.15

2

CLIP

90467-090A2-00

$2.51

3

CLAMP(53Y)

90464-15065-00

$5.72

4

ROLL OVER VALVE AS

BFK-F4180-00-00

$10.48

5

CLAMP

90464-15014-00

$1.91

6

SCREW, BINDING

98907-05012-00

$6.18

7

HOSE (L260)

90445-09045-00

$12.42

8

CLIP

90467-090A2-00

$2.51

9

CLIP (8L2)

90467-08017-00

$7.51

10

CLAMP (8M1)

90464-30040-00

$7.45

11

WAY 3 (73A)

90413-05013-00

$3.49

12

HOSE 4

BFK-2247D-00-00

$17.15

13

CLIP (8L2)

90467-08017-00

$7.51

14

CLIP

90467-090A2-00

$2.51

15

CLAMP

90464-25267-00

$5.62

16

CLAMP (8M1)

90464-30040-00

$7.45

17

PIPE JOINT ASSY

3B4-24380-11-00

$41.29

18

BAND 1

3B4-24398-00-00

$7.75

19

BRKT., RELEASE VAL

BFK-F832Y-00-00

$2.09

20

BOLT, FLANGE

95812-06010-00

$2.75

21

HOSE 2

BFK-2247B-00-00

$28.45

22

CLIP (8L2)

90467-08017-00

$7.51

23

CLAMP (8M1)

90464-30040-00

$7.45

24

CANISTER ASSY

BFK-F4170-00-00

$20.63

25

BAND

BFK-F483H-01-00

$5.17

26

BRACKET, CANISTER

BFK-F115R-01-00

$9.52

27

GROMMET 839774310000

90480-14023-00

$4.74

28

BOLT, FLANGE DEEP

95D32-06030-00

$0.31

29

COLLAR

90387-06136-00

$5.68

30

COVER, CANISTER

BFK-F419E-00-00

$5.32

31

BOLT

90109-06086-00

$4.91

32

HOSE

BFK-2416A-01-00

$19.71

33

CLIP

90467-100A1-00

$6.38

34

CLIP

90467-090A2-00

$2.51

35

PIPE, DRAIN

BFK-E443E-01-00

$1.43

36

CLIP (8L2)

90467-08017-00

$7.51

37

HOSE 3

BFK-2247C-00-00

$10.37

38

CLIP (4X4)

90467-12052-00

$6.57

39

CLIP

90467-110A3-00

$4.23

40

JOINT

BFK-14568-00-00

$2.20

41

HOSE (L105)

90445-11050-00

$19.85

42

CLIP

90467-100A1-00

$6.38

43

WAY 3

90413-06031-00

$8.22

44

HOSE

90445-11065-00

$3.08

45

CLIP

90467-100A1-00

$6.38

46

VALVE, CHECK 1

BG4-24362-00-00

$38.35

47

GROMMET

90480-10003-00

$6.28

48

HOSE

90445-11073-00

$20.31

49

CLIP

90467-100A1-00

$6.38

50

CLAMP

90464-37257-00

$1.66

51

JOINT

4XY-14568-00-00

$5.93

52

HOSE, BREATHER

BFK-2312F-00-00

$15.88

53

CLIP

90467-090A2-00

$2.51

54

CLAMP (8M1)

90464-30040-00

$7.45

55

CLAMP

90464-37257-00

$1.66
