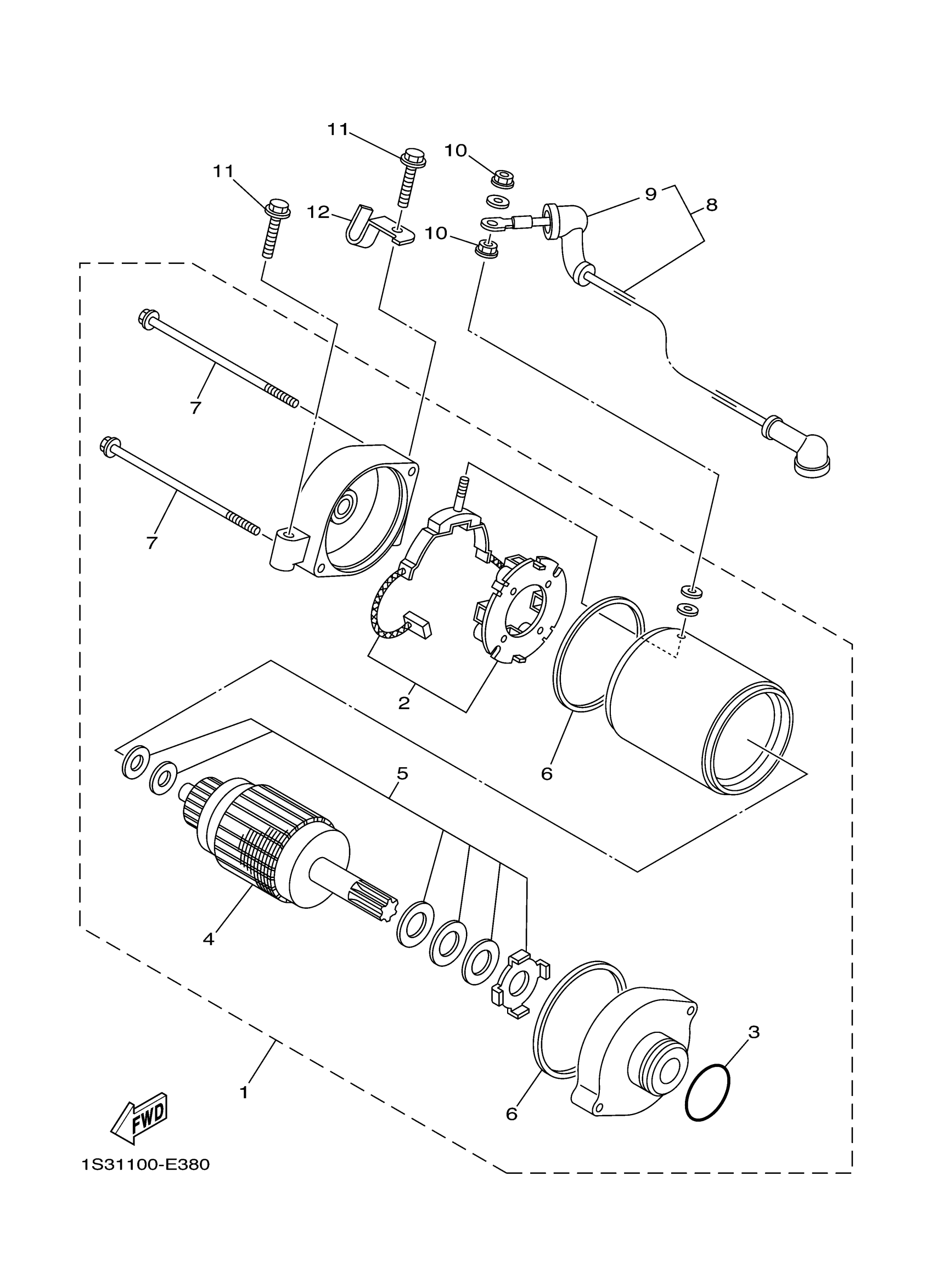

Yamaha YFM70RCBSS (RAPTOR 700 CAL) BFKG 2025 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

1S3-81890-00-00

$185.11

2

BRUSH SET

3AJ-81801-00-00

$105.66

3

O-RING (437)

93210-24235-00

$5.34

4

ARMATURE ASSY

4NK-81850-00-00

$294.24

5

WASHER KIT

3KS-81809-00-00

$4.50

6

GASKET

35C-81844-00-00

Unavailable

7

BOLT

3AJ-81826-00-00

$20.24

8

CORD, STARTER MOTOR

1S3-81815-01-00

$61.88

9

.. CAP

5H0-81871-00-00

Unavailable

10

NUT

4XV-8182A-00-00

$5.86

11

BOLT, FLANGE

95812-06030-00

$1.55

12

CLAMP 2

1S3-15484-00-00

$3.84
