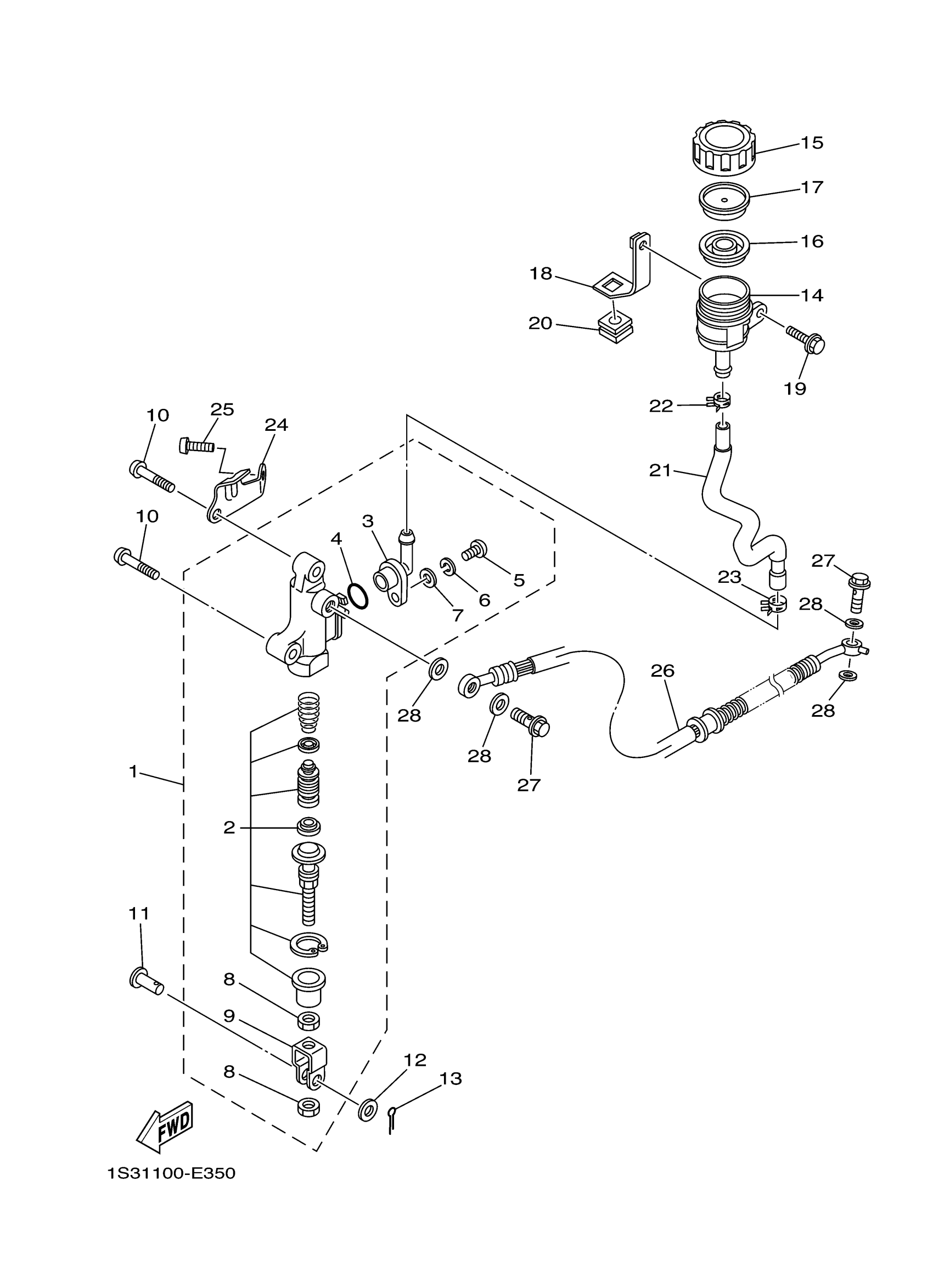

Yamaha YFM70RCBSS (RAPTOR 700 CAL) BFKG 2025 REAR MASTER CYLINDER Diagram

#

Description
Price

1

REAR MASTER CYLINDER ASSY

1S3-2580E-00-00

$128.99

2

CYLINDER KIT, REAR MASTER

31A-W0042-50-00

Unavailable

3

JOINT

1AE-2582A-00-00

Unavailable

4

O-RING (22U)

93210-15566-00

$7.49

5

SCREW, PAN HEAD

98517-04012-00

$3.88

6

WASHER(6TA)

92907-04100-00

$8.49

7

WASHER(JF2)

92907-04600-00

$1.71

8

NUT, HEXAGON SMALL

95317-08700-00

$9.49

9

JOINT

2YK-27222-00-00

$21.99

10

BOLT, BUTTON HEAD

92012-08035-00

$4.41

11

PIN, CLEVIS

90240-08005-00

$8.49

12

WASHER, PLATE 1562722600

90201-08083-00

$9.49

13

PIN, COTTER

91490-16020-00

Unavailable

14

TANK, RESERVOIR

5JJ-25894-01-00

$41.99

15

CAP, RESERVOIR

3XP-25852-50-00

$22.99

16

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

Unavailable

17

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

18

STAY

1S3-26292-00-00

Unavailable

19

BOLT, WITH WASHER

90119-06137-00

Unavailable

20

GROMMET

90480-15009-00

Unavailable

21

HOSE, RESERVOIR

1PE-F5895-00-00

Unavailable

22

CLIP (7K7)

90467-11044-00

Unavailable

23

CLIP (5K4)

90467-14057-00

Unavailable

24

COVER 1

1S3-27453-01-00

Unavailable

25

BOLT, BUTTON HEAD

92012-08016-00

Unavailable

26

HOSE, BRAKE 3

1PE-F5874-02-00

Unavailable

27

BOLT, UNION

90401-10015-00

Unavailable

28

WASHER, PLATE(481)

90201-10118-00

Unavailable
