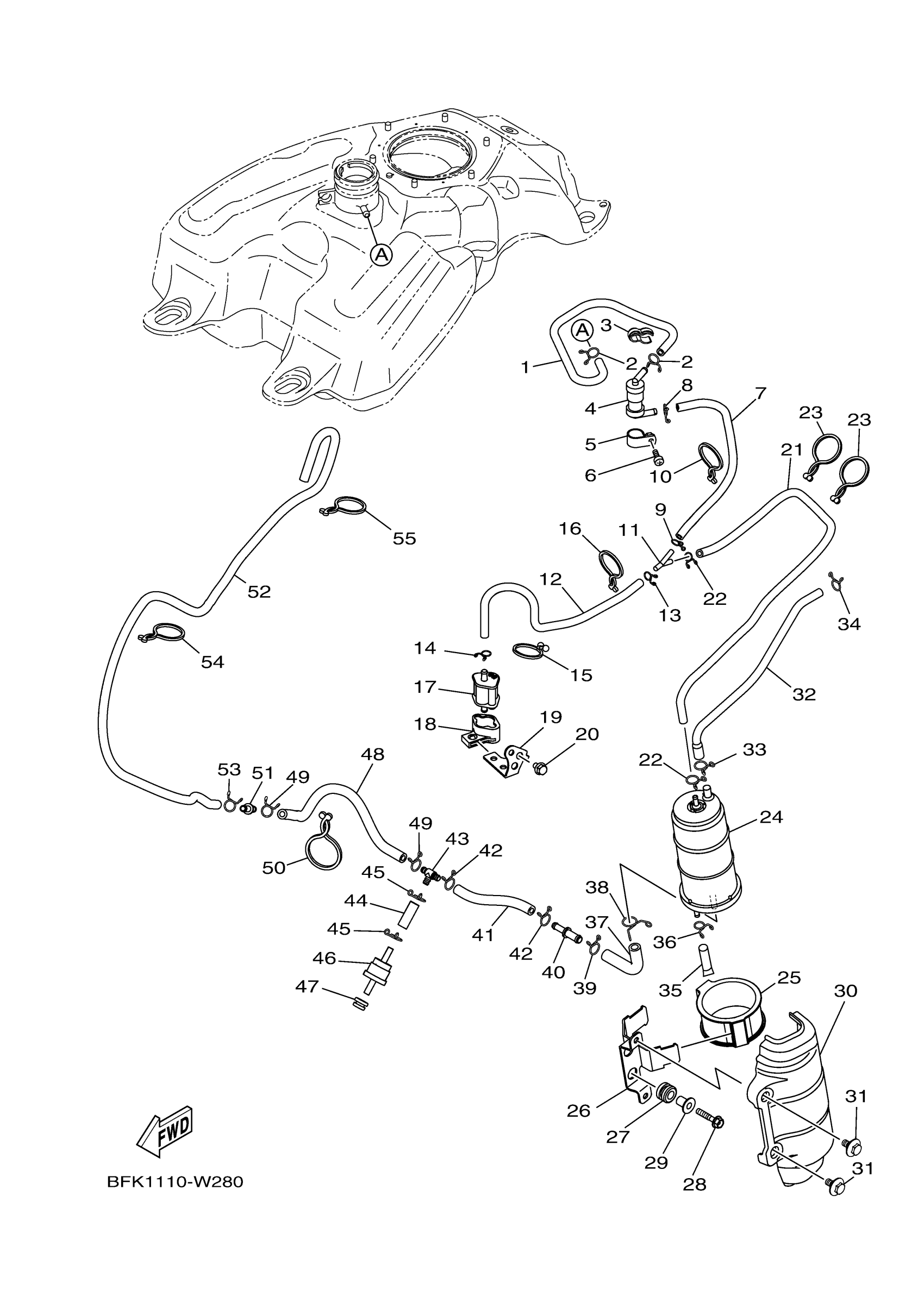

Yamaha YFM70RCBSS (RAPTOR 700 CAL) BFKG 2025 FUEL TANK 2 Diagram
#
1
HOSE 1
BFK-2247A-01-00
Unavailable
3
CLAMP(53Y)
90464-15065-00
Unavailable
12
HOSE 4
BFK-2247D-00-00
Unavailable
17
PIPE JOINT ASSY
3B4-24380-11-00
Unavailable
18
BAND 1
3B4-24398-00-00
Unavailable
19
BRKT., RELEASE VAL
BFK-F832Y-00-00
Unavailable
20
BOLT, FLANGE
95812-06010-00
Unavailable
21
HOSE 2
BFK-2247B-00-00
Unavailable
24
CANISTER ASSY
BFK-F4170-00-00
Unavailable
25
BAND
BFK-F483H-01-00
Unavailable
26
BRACKET, CANISTER
BFK-F115R-01-00
Unavailable
27
GROMMET 839774310000
90480-14023-00
Unavailable
28
BOLT, FLANGE DEEP
95D32-06030-00
Unavailable
29
COLLAR
90387-06136-00
Unavailable
30
COVER, CANISTER
BFK-F419E-00-00
Unavailable
31
BOLT
90109-06086-00
Unavailable
32
HOSE
BFK-2416A-01-00
Unavailable
33
CLIP
90467-100A1-00
Unavailable
35
PIPE, DRAIN
BFK-E443E-01-00
Unavailable
37
HOSE 3
BFK-2247C-00-00
Unavailable
38
CLIP (4X4)
90467-12052-00
Unavailable
39
CLIP
90467-110A3-00
Unavailable
40
JOINT
BFK-14568-00-00
Unavailable
41
HOSE (L105)
90445-11050-00
Unavailable
42
CLIP
90467-100A1-00
Unavailable
43
WAY 3
90413-06031-00
Unavailable
44
HOSE
90445-11065-00
Unavailable
45
CLIP
90467-100A1-00
Unavailable
46
VALVE, CHECK 1
BG4-24362-00-00
Unavailable
47
GROMMET
90480-10003-00
Unavailable
48
HOSE
90445-11073-00
Unavailable
49
CLIP
90467-100A1-00
Unavailable
50
CLAMP
90464-37257-00
Unavailable
51
JOINT
4XY-14568-00-00
Unavailable
52
HOSE, BREATHER
BFK-2312F-00-00
Unavailable
55
CLAMP
90464-37257-00
Unavailable
