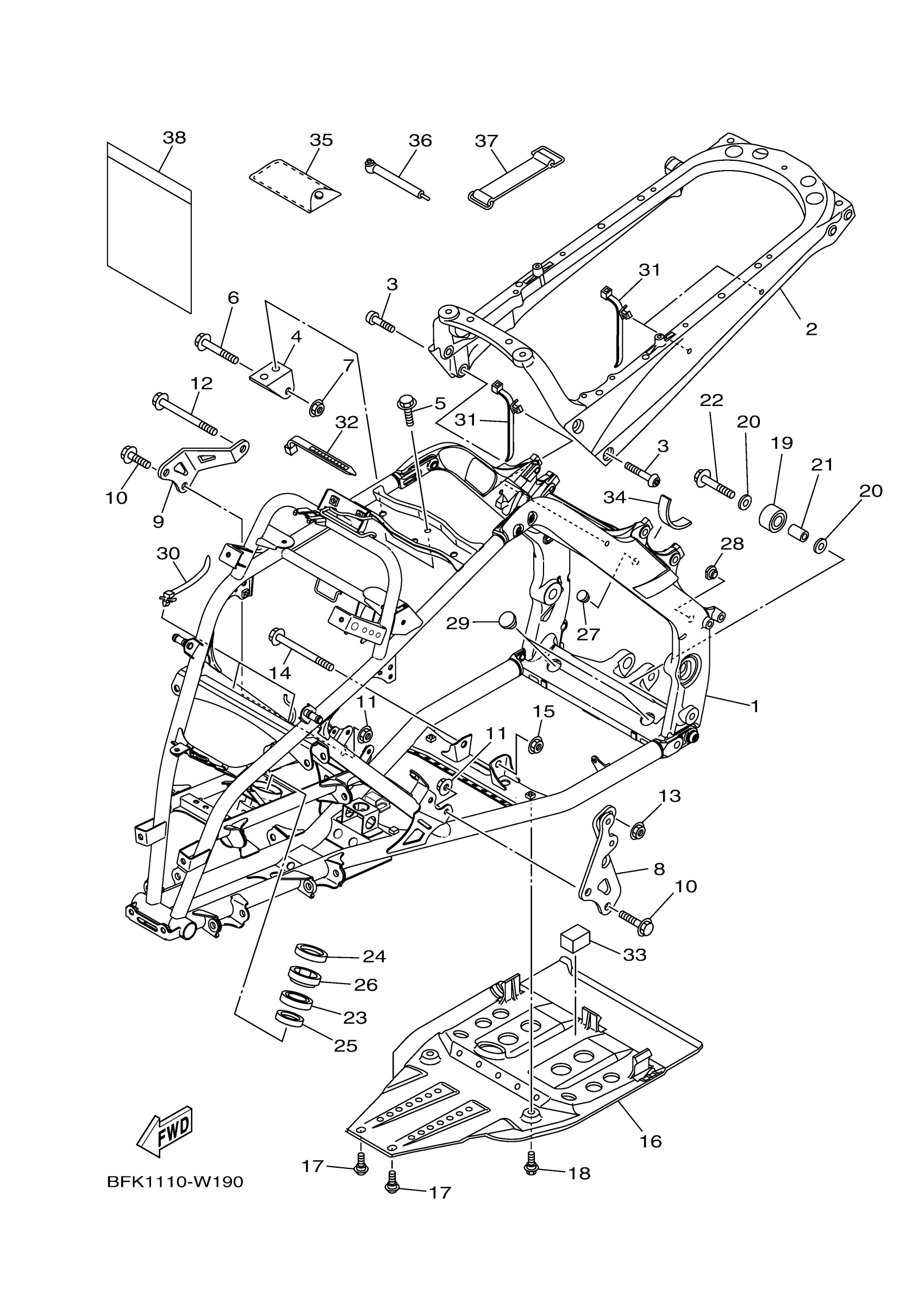

Yamaha YFM70RCBSS (RAPTOR 700 CAL) BFKG 2025 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

BMD-F1101-29-00

Unavailable

2

REAR FRAME COMP.

2LS-F1190-08-00

Unavailable

3

SCREW

90149-10079-00

Unavailable

4

STAY, ENGINE 2

1S3-21315-10-00

$12.99

5

BOLT, FLANGE

90105-08142-00

$5.60

6

BOLT, FLANGE(87Y)

95817-10055-00

$5.60

7

NUT, SELF-LOCKING

90185-10818-00

Unavailable

8

STAY, ENGINE 2

BFK-F1316-00-00

$16.99

9

STAY, ENGINE 3

1S3-21317-10-00

$18.49

10

BOLT, FLANGE

90105-08142-00

$5.60

11

NUT(4KM)

90179-08674-00

$7.49

12

BOLT, FLANGE

95812-10110-00

$7.49

13

NUT, SELF-LOCKING

90185-10818-00

Unavailable

14

95812-10090

95812-10090-00

$2.70

15

NUT, SELF-LOCKING

90185-10818-00

Unavailable

16

PROTECTOR, ENGINE

1PE-F1471-00-00

Unavailable

17

BOLT

90109-06201-00

Unavailable

18

BOLT

90109-06172-00

Unavailable

19

TENSIONER

4D3-22178-00-00

Unavailable

20

WASHER, PLATE

90201-08053-00

Unavailable

21

BUSH, SOLID(38V)

90380-08136-00

Unavailable

22

BOLT, FLANGE

95814-08045-00

Unavailable

23

BEARING

93306-20352-00

Unavailable

24

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

25

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

26

HOLDER, BEARING

2GU-23872-00-00

Unavailable

27

PLUG

90338-24260-00

Unavailable

28

PLUG(2AK)

90338-20183-00

Unavailable

29

PLUG

90338-23004-00

Unavailable

30

CLAMP

5B4-F1338-00-00

Unavailable

31

CLAMP(4KJ)

90464-20213-00

Unavailable

32

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

33

DAMPER, STOPPER

1S3-2140A-00-00

Unavailable

34

DAMPER, LOCATING 1

4X4-24181-00-00

Unavailable

35

TOOL KIT

1PE-F8100-01-00

Unavailable

36

GAUGE, AIR

1NV-2811A-01-00

Unavailable

37

BAND, BATTERY

116-82131-00-00

Unavailable

38

POUCH

1P0-F8186-01-00

Unavailable
