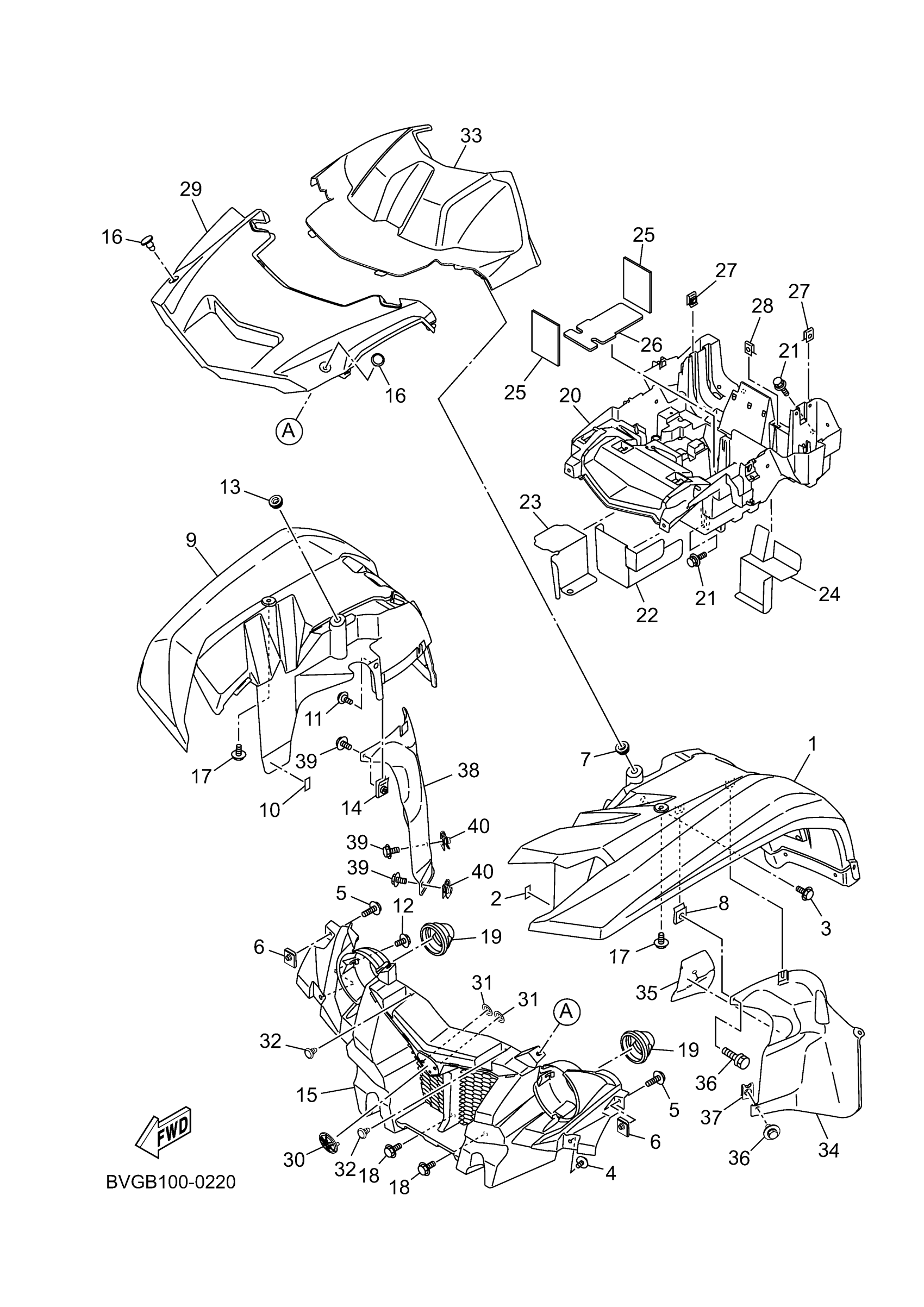

Yamaha YFM70KPZTM (KODIAK 700 EPS XT R) BVGP 2026 FRONT FENDER Diagram

#

Description
Price

1

FR. FENDER ASSY.

BYY-F1500-20-00

Unavailable

2

DAMPER 1

3B4-21541-00-00

$2.45

3

BOLT

90109-06043-00

$2.31

4

BOLT, WITH WASHER

90119-06152-00

$2.74

5

BOLT, WITH WASHER(3RB)

90119-05193-00

$1.23

6

NUT, SPRING

90183-051A0-00

$2.66

7

GROMMET

90480-13014-00

$6.85

8

NUT, SPRING(4ES)

90183-06069-00

$5.93

9

FENDER, FRONT 2

B16-F1556-80-00

Unavailable

10

DAMPER 1

3B4-21541-00-00

$2.45

11

BOLT

90109-06043-00

$2.31

12

BOLT, WITH WASHER

90119-06152-00

$2.74

13

GROMMET

90480-13014-00

$6.85

14

NUT, SPRING(4ES)

90183-06069-00

$5.93

15

GRILLE, FRONT

B16-F8309-00-00

$33.74

16

RIVET

90269-07010-00

$3.75

17

BOLT, WITH WASHER

90119-06152-00

$2.74

18

BOLT

90109-06043-00

$2.31

19

CAP

5UH-F8349-00-00

$11.83

20

BOX, BATTERY 1

1HP-H212B-02-00

$26.00

21

BOLT, WITH WASHER

90119-06152-00

$2.74

22

INSULATOR 1

1HP-H253E-01-00

$5.25

23

INSULATOR 2

1HP-H253F-00-00

$5.54

24

INSULATOR

1HP-H254E-01-00

$4.58

25

INSU.

3B4-8233W-10-00

$6.38

26

SEAT, BATTERY

3B4-82122-00-00

$12.48

27

NUT, SPRING(4ES)

90183-06069-00

$5.93

28

NUT, SPRING

90183-05008-00

$6.68

29

PANEL, FRONT

B16-F3391-00-00

$16.88

30

TUNING FORK MARK

1XD-F175B-01-00

$13.15

31

NUT, SPRING

90183-06071-00

$0.54

32

RIVET

90269-07010-00

$3.75

33

PANEL, ACCESSORY

B16-F839R-00-00

$38.95

34

FENDER, INNER

1HP-F1552-00-00

$8.93

35

SEAL 1

1HP-F1575-01-00

$3.35

36

BOLT, WITH WASHER

90119-06152-00

$2.74

37

NUT, SPRING(4ES)

90183-06069-00

$5.93

38

FENDER, INNER 2

1HP-F1553-00-00

$18.23

39

BOLT, WITH WASHER

90119-06152-00

$2.74

40

NUT, SPRING(4ES)

90183-06069-00

$5.93
