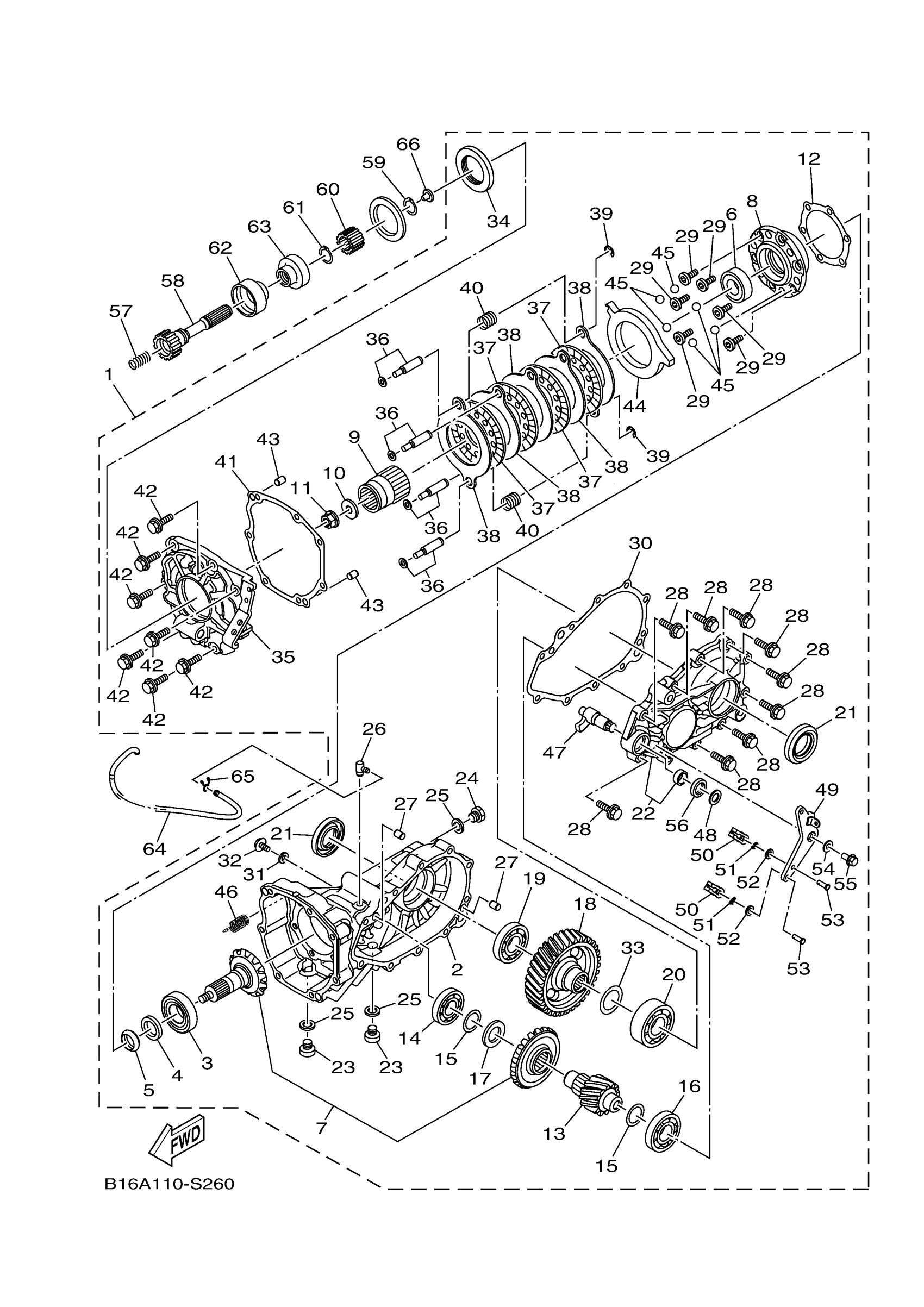

Yamaha YFM70KPZTM (KODIAK 700 EPS XT R) BVGP 2026 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASSY

B16-46101-10-00

$2,197.20

2

REAR AXLE HOUSING

B16-46540-00-00

$202.82

3

BEARING (70E)

93332-00046-00

$46.72

4

WASHER, PLATE (1J7)

90201-25634-00

$9.17

5

SPACER, EXPANSION

3B4-46129-00-00

$6.72

6

BEARING TAPER 52-25 (70R)

93332-00053-00

$55.43

7

RING GEAR SET

3B4-461A0-00-00

$419.00

8

HOUSING, PINION BE

B16-46144-00-00

$63.26

9

COUPLING

B16-46126-00-00

$102.83

10

WASHER, PLATE

90201-12029-00

$6.17

11

NUT (4X7)

90179-12325-00

$5.78

12

SHIM, DRIVE PINION

B16-46127-00-00

$5.02

12

SHIM, DRIVE PINION

B16-46127-10-00

$4.23

12

SHIM, DRIVE PINION

B16-46127-20-00

$4.23

12

SHIM, DRIVE PINION

B16-46127-30-00

$4.23

12

SHIM, DRIVE PINION

B16-46127-40-00

$4.23

12

SHIM, DRIVE PINION

B16-46127-50-00

$4.23

13

GEAR, PINION 1

3B4-46316-00-00

$129.22

14

BEARING (6K8)

93306-205U1-00

$21.14

15

SHIM, THRUST (0.25T)

3B4-46119-00-00

$6.38

15

SHIM, THRUST (0.30T)

3B4-46119-10-00

$6.38

15

SHIM, THRUST (0.35T)

3B4-46119-20-00

$1.54

15

SHIM, THRUST (0.40T)

3B4-46119-30-00

$6.38

15

SHIM, THRUST (0.45T)

3B4-46119-40-00

$1.58

15

SHIM, THRUST (0.50T)

3B4-46119-50-00

$1.54

16

BEARING(3RR)

93306-30560-00

$71.07

17

SHIM,THRUST (4.5T)

3B4-4621F-00-00

$7.34

17

SHIM,THRUST (4.8T)

3B4-4621F-10-00

$7.31

17

SHIM,THRUST (5.1T)

3B4-4621F-20-00

$7.34

17

SHIM,THRUST (5.4T)

3B4-4621F-30-00

$7.34

18

GEAR, WHEEL 1

3B4-46326-01-00

$204.83

19

BRG,R-B 6007 62MM 150G KY

93306-00702-00

$52.00

20

BRG,R-B 6207 72MM 280G (688)

93306-207U0-00

$30.09

21

OIL SEAL

93102-35031-00

$18.78

22

REAR AXLE HOUSING

B16-46550-00-00

$111.52

23

PLUG, STRAIGHT SCREW

90340-14002-00

$16.95

24

PLUG, STRAIGHT(2E9)

90340-14029-00

$3.20

25

GASKET

214-11198-01-00

$2.66

26

BREATHER

5UG-15371-00-00

$33.79

27

PIN, DOWEL

93610-14002-00

$3.86

28

BOLT, FLANGE

95822-08035-00

$2.82

29

BOLT

90109-08237-00

$1.71

30

GSKT., CASE

B16-4631A-00-00

$12.78

31

WASHER, PLATE 3411117500

90201-08087-00

$3.13

32

BOLT, FLANGE

95022-08012-00

$9.51

33

SHIM (0.25T)

3B4-46344-00-00

$1.91

33

SHIM (0.30T)

3B4-46344-10-00

$6.38

33

SHIM (0.35T)

3B4-46344-20-00

$1.91

33

SHIM (0.40T)

3B4-46344-30-00

$1.88

33

SHIM (0.45T)

3B4-46344-40-00

$1.88

33

SHIM (0.50T)

3B4-46344-50-00

$6.38

34

OIL SEAL

93105-45007-00

$26.13

35

COVER 1

B16-4613F-00-00

$72.35

36

BOLT 1

B16-46155-00-00

$6.83

37

PLATE, FRICTION

B16-42525-00-00

$40.38

38

PLATE 1

B16-46336-00-00

$26.35

39

CIRCLIP(J51)

99080-09600-00

$1.88

40

SPRING, COMPRESSIO

90501-180A2-00

$1.58

41

GASKET, COVER

B16-4631E-00-00

$9.71

42

BOLT, FLANGE

95822-08035-00

$2.82

43

PIN, DOWEL

93610-14002-00

$3.86

44

CAM, PLATE

B16-4582E-00-00

$50.25

45

BALL (1M1)

93515-32029-00

$2.77

46

SPRING, RETURN

B16-46375-00-00

$1.91

47

SHAFT

B16-46265-00-00

$51.37

48

WASHER, PLATE

90201-13015-00

$3.25

49

LEVER, CAMSHAFT

B16-25355-00-00

$30.48

50

END, CABLE 3

B16-26374-00-00

$3.65

51

PIN, COTTER (648)

91490-20015-00

$1.85

52

WASHER, PLAIN (646)

92990-06600-00

$2.48

53

PIN, CLEVIS (5X6)

91701-06018-00

$4.48

54

. WASHER

92902-08200-00

$0.23

55

BOLT, FLANGE

95814-08016-00

$6.68

56

OIL SEAL

93102-17008-00

$14.26

57

SPRING, COMPRESSION (400)

90501-20361-00

$10.92

58

SHAFT, DRIVE

1HP-G6172-00-00

Unavailable

59

CIRCLIP(1EY)

99009-19400-00

$6.17

60

COUPLING

5KM-46126-00-00

$57.01

61

CIRCLIP (537)

93410-22039-00

$6.17

62

SEAL 2

5KM-46137-00-00

$14.62

63

SEAL 1

5KM-46136-00-00

$7.51

64

HOSE (L1700)

90445-070G6-00

$35.08

65

CLIP (1J7)

90467-07029-00

$1.92

66

DAMPER

5KM-46559-00-00

$6.72
