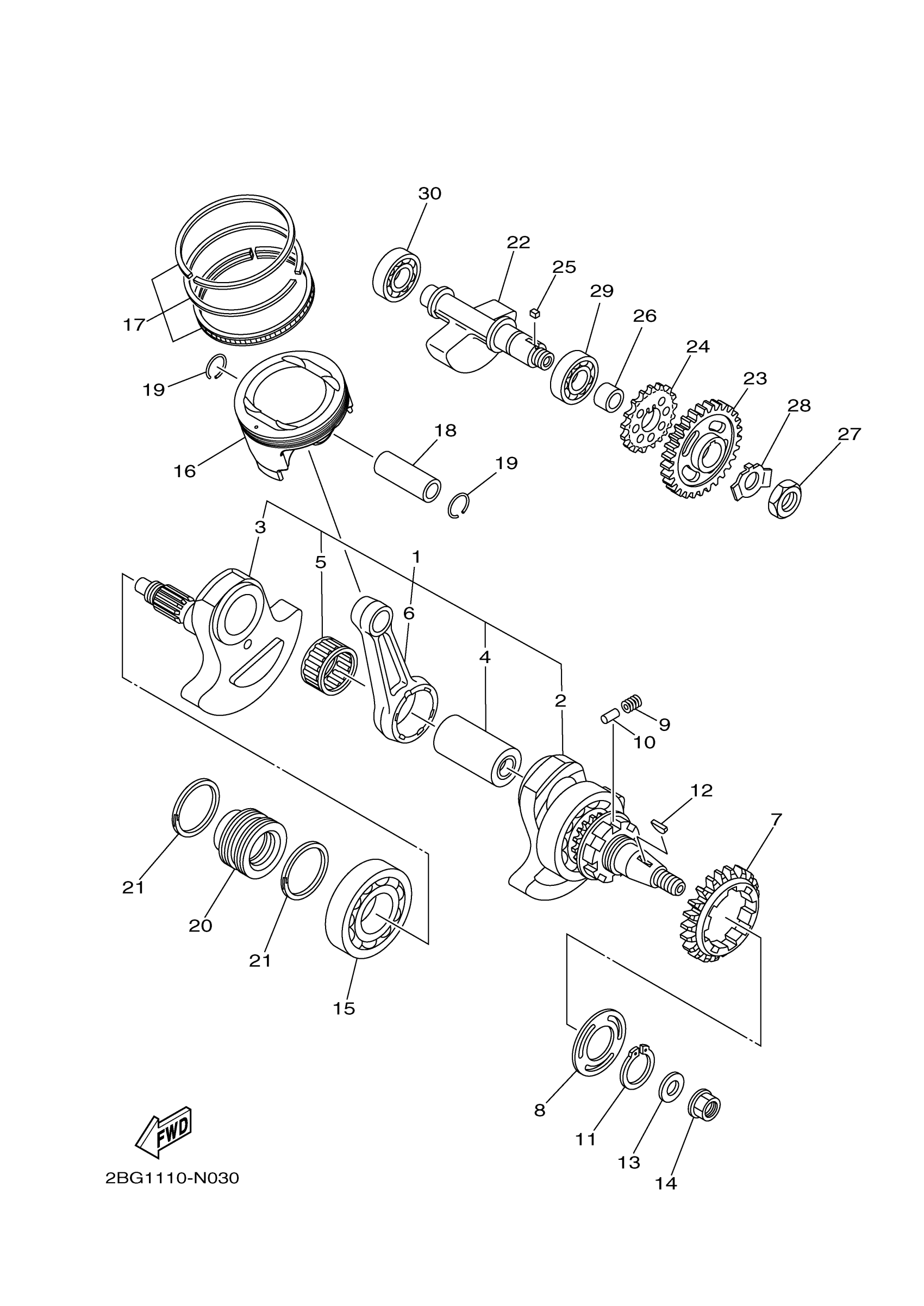

Yamaha YFM70KPZTM (KODIAK 700 EPS XT R) BVGP 2026 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

2BG-11400-10-00

$587.94

2

CRANK SUB ASSY 1

3B4-11401-09-00

$334.05

3

CRANK SUB ASSY 2

3B4-11402-09-00

$258.72

4

PIN, CRANK 1

5VK-11681-01-00

$92.22

5

BEARING

93310-84039-00

$102.05

6

ROD, CONNECTING

2BG-11651-00-00

$137.83

7

GEAR, DRIVE

1HP-11536-00-00

$128.29

8

WASHER, BEARING COVER

5KM-11565-00-00

$11.35

9

SPRING, COMPRESSION

90501-220A1-00

$6.09

10

PIN, DOWEL

93606-09002-00

$3.09

11

CIRCLIP(6U2)

93410-35M10-00

$4.54

12

KEY, WOODRUFF

90280-05001-00

$10.68

13

WASHER, PLATE

90201-16013-00

$11.86

14

NUT

90179-16004-00

$13.69

15

BEARING

93306-30810-00

$65.73

16

PISTON (STD)

2BG-11631-00-00

$137.01

17

PISTON RING SET (STD)

1S3-11603-10-00

$51.87

18

PIN, PISTON

5VK-11633-00-00

$36.42

19

CIRCLIP

93450-24154-00

$2.86

20

SPACER 1

3B4-16181-00-00

$97.23

21

SEAL, CRANK

2BG-11447-01-00

$15.04

22

WEIGHT 1

2BG-11454-00-00

$116.29

23

GEAR, BALANCE WEIGHT

1HP-11531-10-00

$124.28

24

SPROCKET, DRIVE

1HP-13354-00-00

$52.16

25

KEY, STRAIGHT(34K)

90282-05065-00

$8.80

26

COLLAR

90387-24001-00

$22.94

27

NUT

90170-18003-00

$11.86

28

WASHER, LOCK

90215-18001-00

$9.65

29

BEARING(3RR)

93306-30560-00

$71.07

30

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

$54.91
