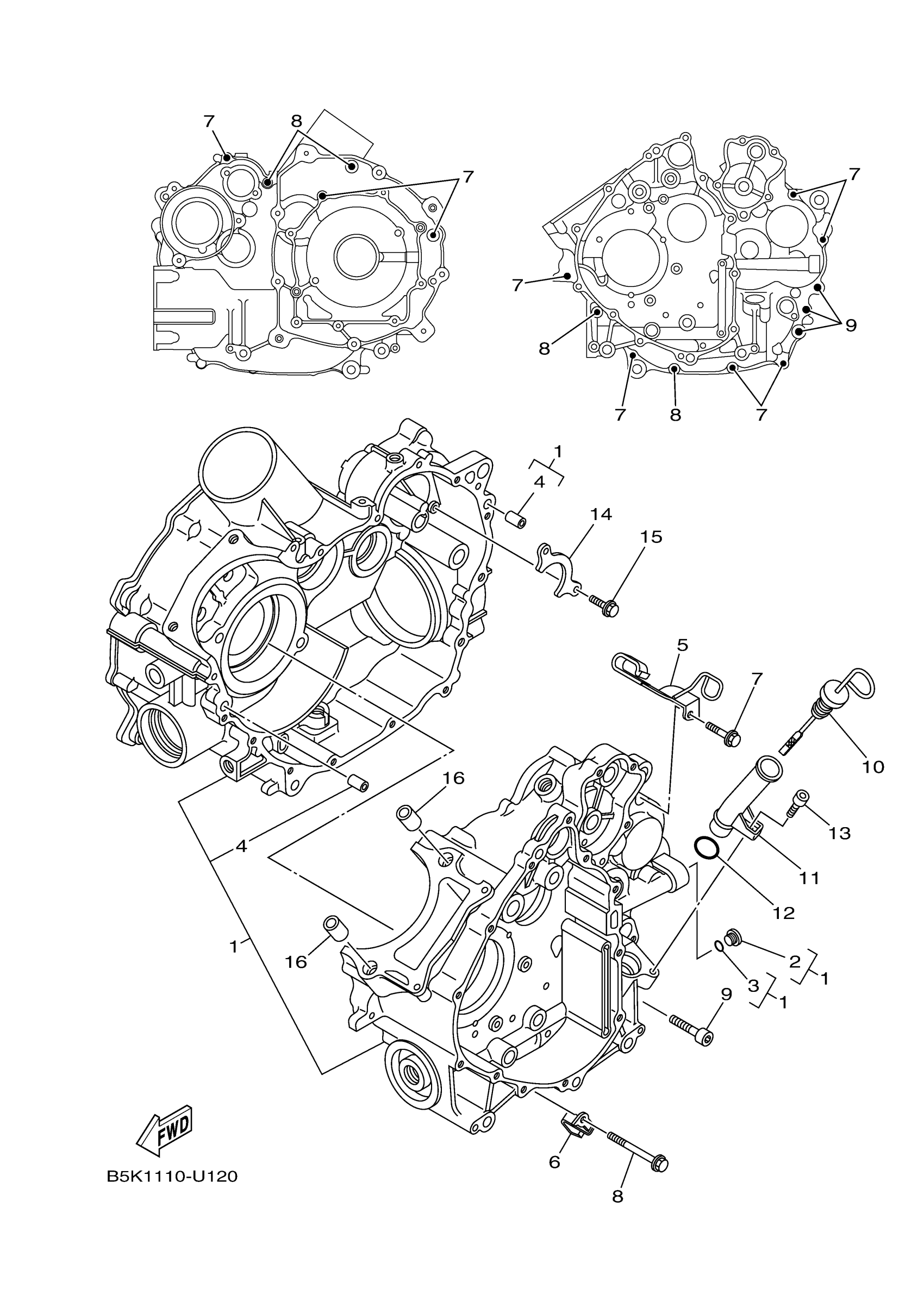

Yamaha YFM70KPZTM (KODIAK 700 EPS XT R) BVGP 2026 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3B4-15100-27-00

Unavailable

2

PLUG

36Y-15189-01-00

$12.03

3

O-RING(1L9)

93210-16325-00

$5.86

4

PIN, DOWEL(2VG)

99530-10116-00

$3.37

5

HOLDER

B5K-1546C-00-00

$20.31

6

CLAMP

90462-08049-00

$3.40

7

BOLT, FLANGE

95022-06030-00

$1.40

8

BOLT, FLANGE

95022-06060-00

$6.26

9

BOLT,SOCKET

91314-08040-00

$5.10

10

PLUG, OIL LEVEL

3B4-15362-01-00

$21.06

11

PIPE, OIL

3B4-15112-02-00

$36.77

12

O-RING (26H)

93210-21631-00

$6.43

13

BOLT,SOCKET

91317-06012-00

$6.17

14

PLATE, BEARING COVER

3B4-15388-00-00

$3.60

15

BOLT, FLANGE

95022-06020-00

$3.32

16

PIN, DOWEL

99530-14016-00

$3.20
