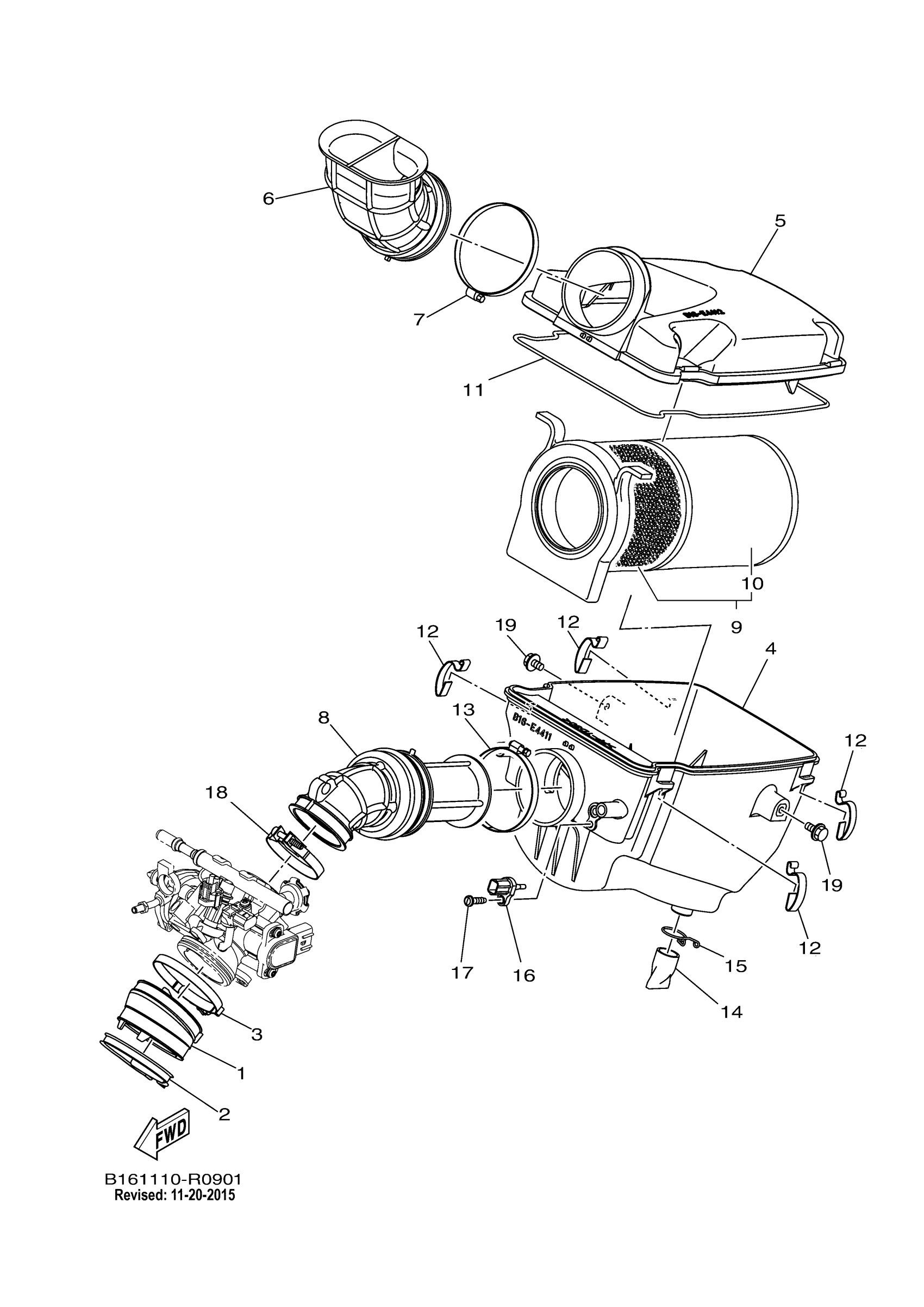

Yamaha YFM70KPXGR (KODIAK 700 EPS 4WD) 2SM12 2016 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR

2MB-E3586-00-00

$37.99

2

CLAMP, HOSE 2

2MB-E1388-00-00

$18.49

3

HOSE CLAMP ASSY

90450-72004-00

$18.99

4

CASE, AIR CLEANER

B16-E4411-01-00

$151.99

5

CAP,CLEANER CASE 1

B16-E4412-01-00

$28.99

6

DUCT

B16-E4437-10-00

$34.99

7

BAND

B16-E4455-00-00

$5.60

8

JOINT, AIR CLEANER

B16-E4453-00-00

$34.99

9

ELEMENT ASSY, AIR

BVG-E4450-00-00

Unavailable

10

ELEMENT, AIR CLEAN

BVG-E4451-00-00

Unavailable

11

SEAL

B16-E4457-00-00

$4.56

12

CLIP, CAP FITTING

B16-E4424-00-00

$3.40

13

BAND

B16-E4456-00-00

$5.60

14

PIPE, DRAIN

B16-E443E-00-00

$2.28

15

CLIP

90467-220A1-00

$5.60

16

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

17

SCREW, PANHEAD TAPPING

97702-50520-00

Unavailable

18

HOSE CLAMP ASSY

90450-62006-00

Unavailable

19

BOLT, FLANGE

95812-06010-00

Unavailable
