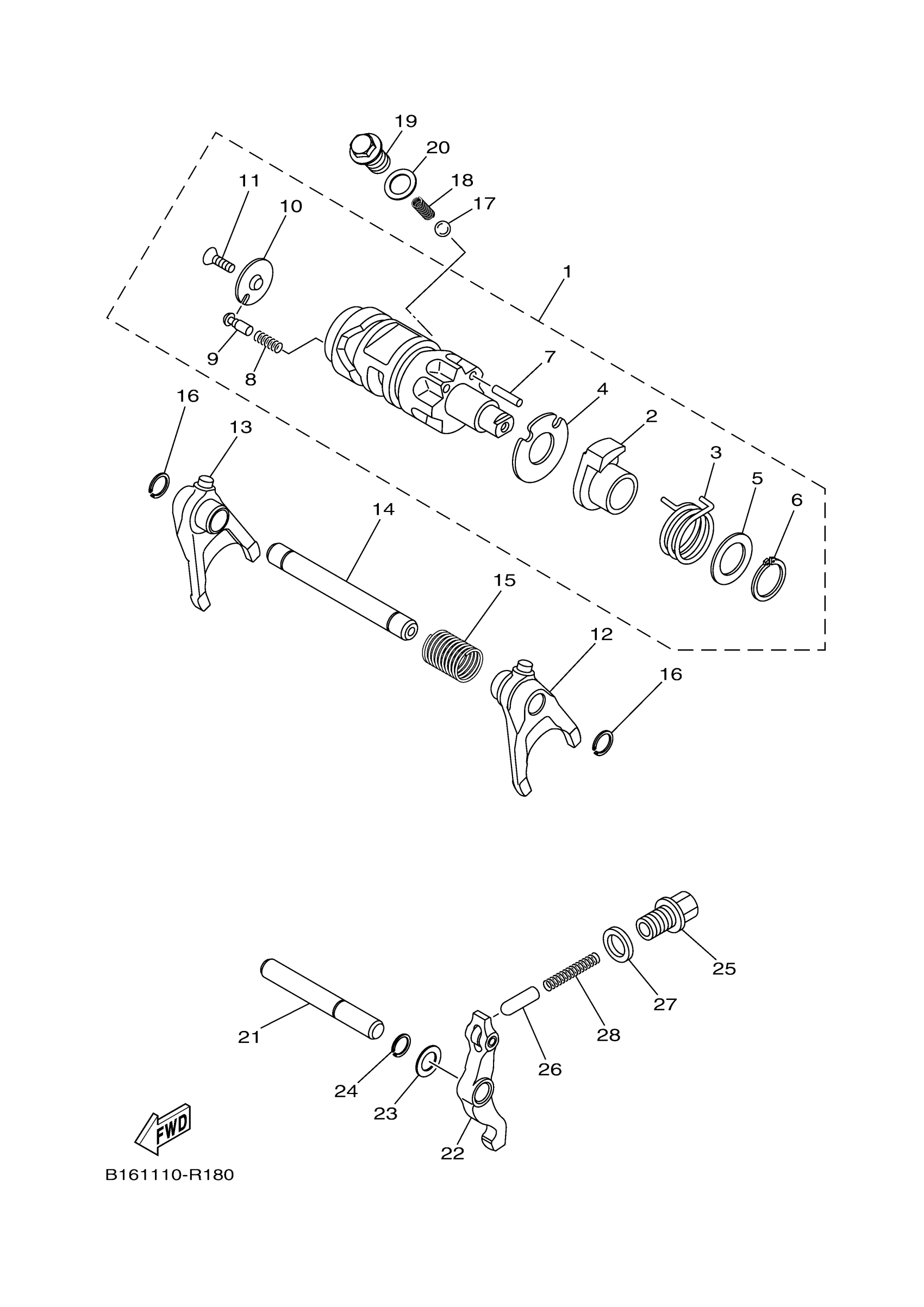

Yamaha YFM70KPXGL (KODIAK 700 EPS 4WD) 2SM11 2016 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

3B4-18540-21-00

$187.18

2

CAM, LEVER

5KM-18171-00-00

$42.65

3

SPRING, TORSION

90508-32132-00

$3.29

4

PLATE, SHIFT CAM

3B4-18331-00-00

$2.78

5

. SPACER

90560-20040-00

$2.32

6

CIRCLIP (525)

93410-20038-00

$2.62

7

PIN, DOWEL (363)

93604-18100-00

$2.22

8

SPRING COMPRESSION278185450000

90501-06022-00

$6.17

9

POINT, NEUTRAL

5KM-18542-00-00

$12.68

10

PLATE, SIDE 2

4UN-18566-00-00

$17.29

11

SCREW

90149-05015-00

$5.26

12

FORK, SHIFT 1

2MB-E8511-00-00

$93.55

13

FORK, SHIFT 2

B16-E8512-00-00

$94.31

14

BAR, SHIFT FORK GUIDE 1

3B4-18531-00-00

$17.68

15

SPRING

2MB-E8123-00-00

$7.05

16

CIRCLIP 2

2MB-E5597-00-00

$1.45

17

BALL

2MB-E8218-00-00

$1.23

18

SPRING

2MB-E8143-00-00

Unavailable

19

BOLT, FLANGE

90105-14003-00

$6.63

20

GASKET

2MB-E8363-00-00

$2.62

21

SHAFT, SHIFTER

B16-E8318-00-00

$25.55

22

STOPPER LEVER ASSY

B16-E8140-00-00

$107.75

23

WASHER, LOCK

B16-E8139-00-00

$6.86

24

CIRCLIP 2

2MB-E5597-00-00

$1.45

25

BOLT

90109-14002-00

$10.29

26

STOPPER, CAM

B16-E8547-00-00

Unavailable

27

GASKET

2MB-E8363-00-00

$2.62

28

SPRING,1

B16-E8221-00-00

Unavailable
