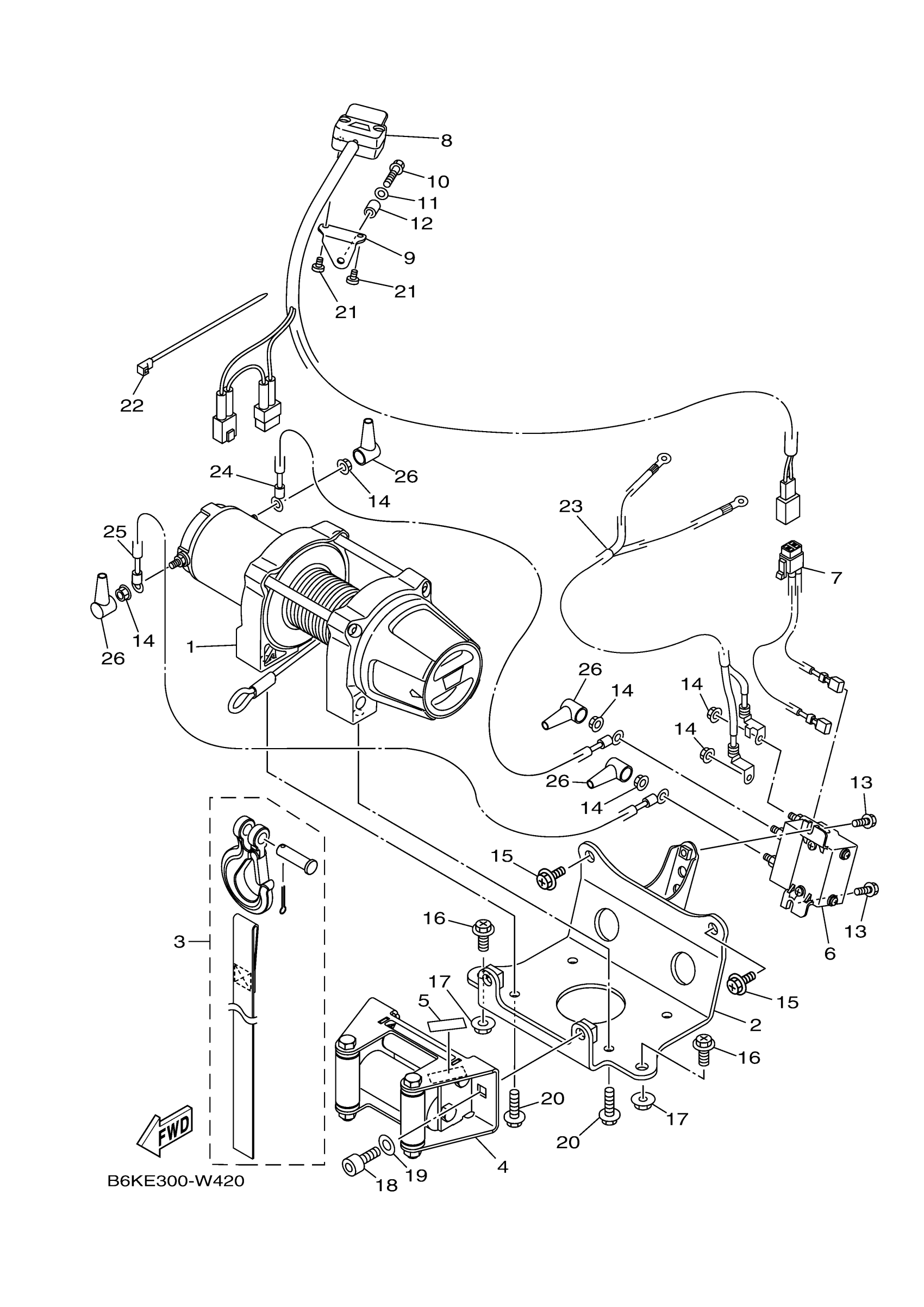

Yamaha YFM70KPSST (KODIAK 700 EPS SE) BVGF 2025 WINCH Diagram

#

Description
Price

1

WINCH

BFE-F845V-00-00

$533.65

2

BRACKET 1

BFE-F8426-00-00

$51.27

3

HOOK

BFE-F8488-00-00

$39.55

4

ROLLER

BFE-F178G-00-00

$58.74

5

LABEL 2

BAS-F8459-00-00

$4.47

6

CONTACTOR

BAS-H232W-00-00

$145.44

7

WIRE HARNESS

BFE-82105-00-00

$11.61

8

SWITCH ASSY

BFE-H259E-02-00

$54.70

9

BRACKET, SWITCH

BFE-F1453-00-00

$6.21

10

BOLT(4MX)

97017-05030-00

$6.22

11

WASHER(1RW)

92907-05600-00

$0.77

12

COLLAR

90387-06251-00

Unavailable

13

BOLT, WITH WASHER

90119-06240-00

$2.92

14

NUT, FLANGE

95702-06500-00

$1.95

15

BOLT, FLANGE

95812-10016-00

$7.70

16

BOLT, FLANGE

95817-10020-00

Unavailable

17

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

18

BOLT

91312-10020-00

Unavailable

19

WASHER, PLATE

90201-10033-00

Unavailable

20

BOLT, FLANGE DEEP RECESS

95D32-08020-00

Unavailable

21

SCREW, SPECIAL

BFE-F8382-00-00

Unavailable

22

CLAMP(JN6)

90464-40825-00

Unavailable

23

WIRE, SUB LEAD

BFE-H2309-00-00

Unavailable

24

WIRE, LEAD 3

BFE-H2149-00-00

Unavailable

25

WIRE, LEAD 4

BFE-H2148-00-00

Unavailable

26

PROTECTOR

BAS-F3472-00-00

Unavailable
