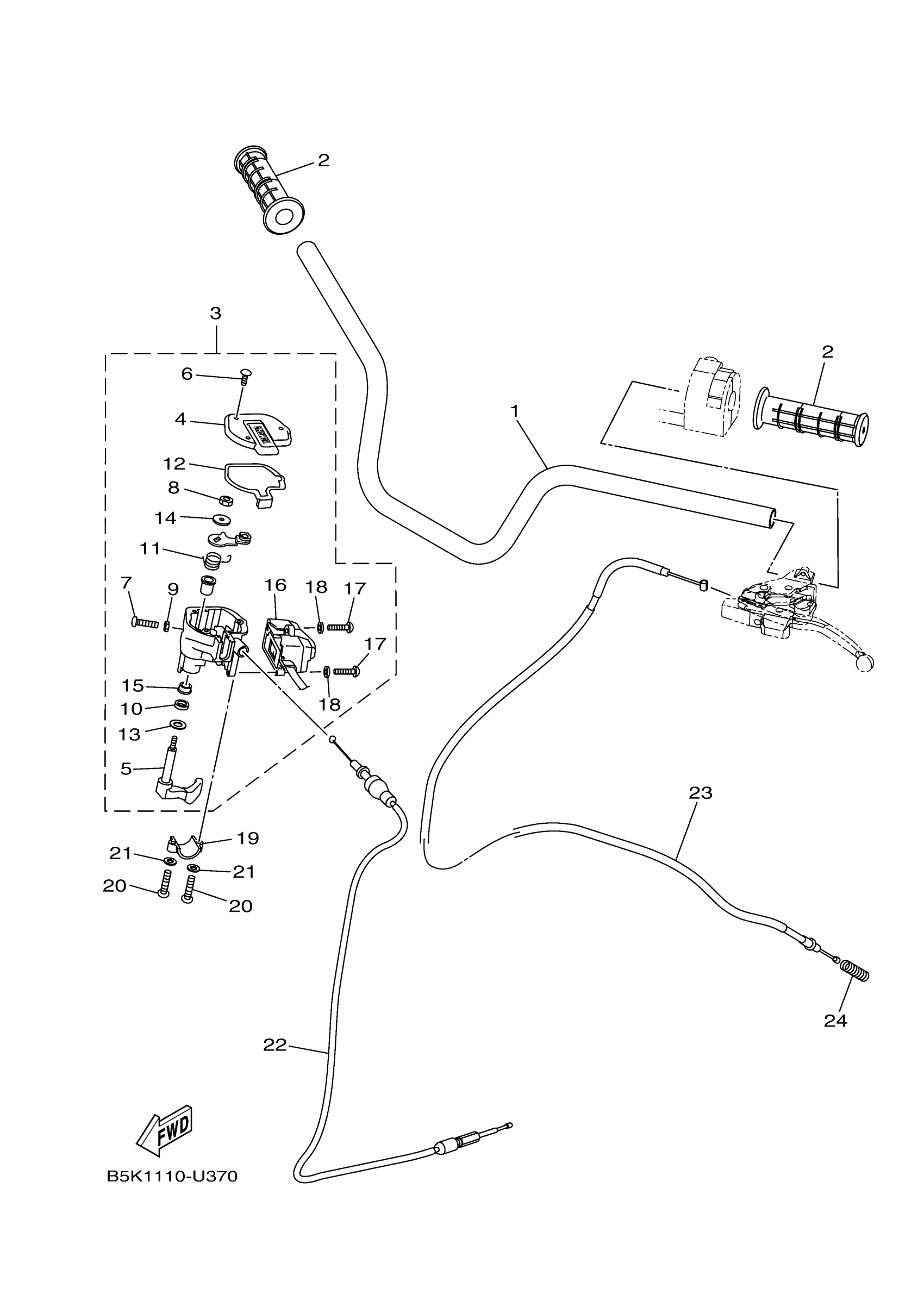

Yamaha YFM70KPSST (KODIAK 700 EPS SE) BVGF 2025 STEERING HANDLE & CABLE Diagram

#

Description
Price

1

HANDLEBAR

B16-F6111-00-00

Unavailable

2

GRIP

5FU-F6241-10-00

$10.31

3

THROTTLE LEVER ASS

1HP-26250-04-00

Unavailable

4

CAP, GEAR

28P-2628F-00-00

$28.67

5

LEVER, THROTTLE

28P-2625G-01-00

$46.93

6

SCREW(3HE)

90149-04278-00

$0.73

7

SCREW, PAN HEAD

98517-05020-00

$1.26

8

NUT, U

95617-05100-00

$6.22

9

NUT, HEXAGON SMALL

95317-05700-00

$5.76

10

OIL SEAL (9X15X4-256)

93104-09025-00

$5.08

11

SPRING

1NV-26304-00-00

$11.00

12

GASKET

28P-2628G-00-00

$6.29

13

WASHER

1NV-26129-00-00

$6.33

14

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

15

COLLAR

1NV-2625K-00-00

$5.77

16

SWITCH, HANDLE 1

1HP-83976-06-00

Unavailable

17

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

18

WASHER, PLAIN (646)

92990-04600-00

Unavailable

19

HOLDER, LEVER LOWER 1

1S3-82913-00-00

Unavailable

20

SCREW, PAN HEAD

98517-05020-00

$1.26

21

WASHER, PLAIN (646)

92990-05600-00

Unavailable

22

CABLE, THROTTLE 1

B5K-26311-00-00

Unavailable

23

WIRE, BRAKE 1

B16-26341-01-00

Unavailable

24

SPRING, COMPRESSIO

90501-121A2-00

Unavailable
