Description

Price

1

CAST WHEEL, REAR

B32-F5338-A0-00

$214.99

2

AT25X10.00-12 MU20

94110-12814-00

$237.99

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT

90179-10032-00

$13.49

5

HUB ASSY 2

B16-F510D-03-00

$47.99

6

BOLT, SERRATION

90114-10014-00

$7.49

7

REAR KNUCKLE ASSY.

2BG-F532F-01-00

$151.99

8

BEARING

93305-00602-00

$101.99

9

CIRCLIP

99009-55500-00

$9.49

10

BUSH, SOLID(2NL)

90381-17067-00

$11.49

11

NIPPLE, GREASE

93700-06M03-00

Unavailable

12

SPACER

5KM-23448-00-00

$17.49

13

COVER, THRUST 1

3JN-23517-00-00

$16.49

14

BOLT, FLANGE

90105-10212-00

$7.49

15

NUT, SELF-LOCKING

90185-10012-00

$9.49

16

REAR DRIVE SHAFT A

B16-2531H-01-00

Unavailable

17

DOUBLE OFF SET JOI

B16-2530V-01-00

Unavailable

18

BALL JOINT SET

28P-2510F-10-00

Unavailable

19

BOOT SET(DOUBLE OF

B16-2510H-01-00

Unavailable

20

BOOT SET (BALL JOI

28P-2510G-10-00

Unavailable

21

SHAFT

B16-2518E-10-00

Unavailable

22

BOOT BAND(DOUBLE O

B16-2511H-00-00

Unavailable

23

BOOT BAND (SMALL)

B16-2512G-00-00

Unavailable

24

BOOT BAND (SMALL)

28P-2512G-00-00

Unavailable

25

SNAP RING

B16-2512J-00-00

Unavailable

26

CIRCLIP

3B4-2512H-00-00

Unavailable

27

CIRCLIP

B16-25182-00-00

Unavailable

28

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

Unavailable

29

CLIP, SPRING

3B4-2536E-00-00

Unavailable

30

NUT

90179-20016-00

Unavailable

31

WHEEL CAP ASSY.

1RB-F530B-00-00

Unavailable

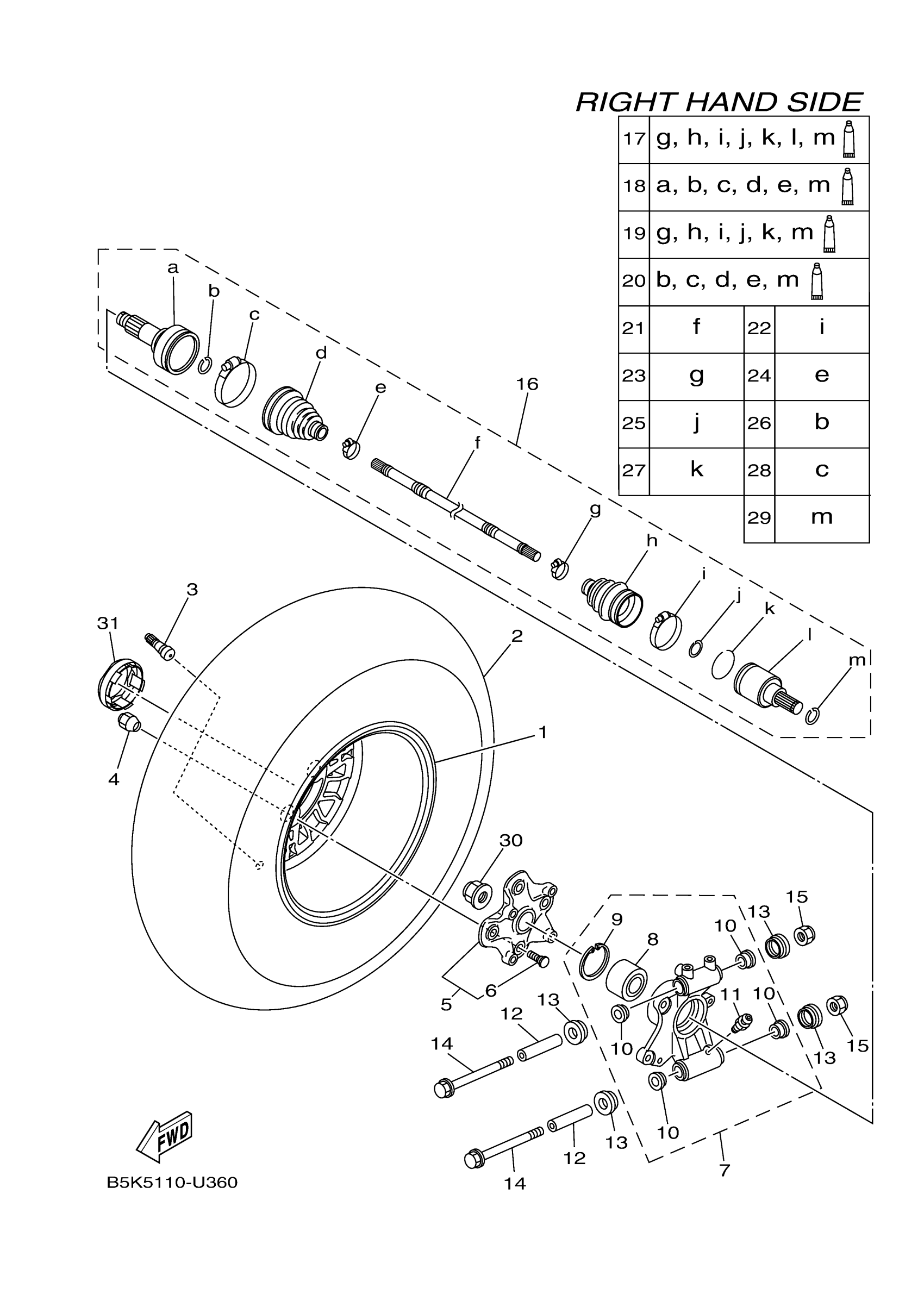

Yamaha YFM70KPSST (KODIAK 700 EPS SE) BVGF 2025 REAR WHEEL 2 Diagram

CAST WHEEL, REAR

AT25X10.00-12 MU20

VALVE, RIM

NUT

HUB ASSY 2

BOLT, SERRATION

REAR KNUCKLE ASSY.

BEARING

CIRCLIP

BUSH, SOLID(2NL)

NIPPLE, GREASE

SPACER

COVER, THRUST 1

BOLT, FLANGE

NUT, SELF-LOCKING

REAR DRIVE SHAFT A

DOUBLE OFF SET JOI

BALL JOINT SET

BOOT SET(DOUBLE OF

BOOT SET (BALL JOI

SHAFT

BOOT BAND(DOUBLE O

BOOT BAND (SMALL)

BOOT BAND (SMALL)

SNAP RING

CIRCLIP

CIRCLIP

BOOT BAND(DOUBLE OFFSET JOINT)

CLIP, SPRING

NUT

WHEEL CAP ASSY.
