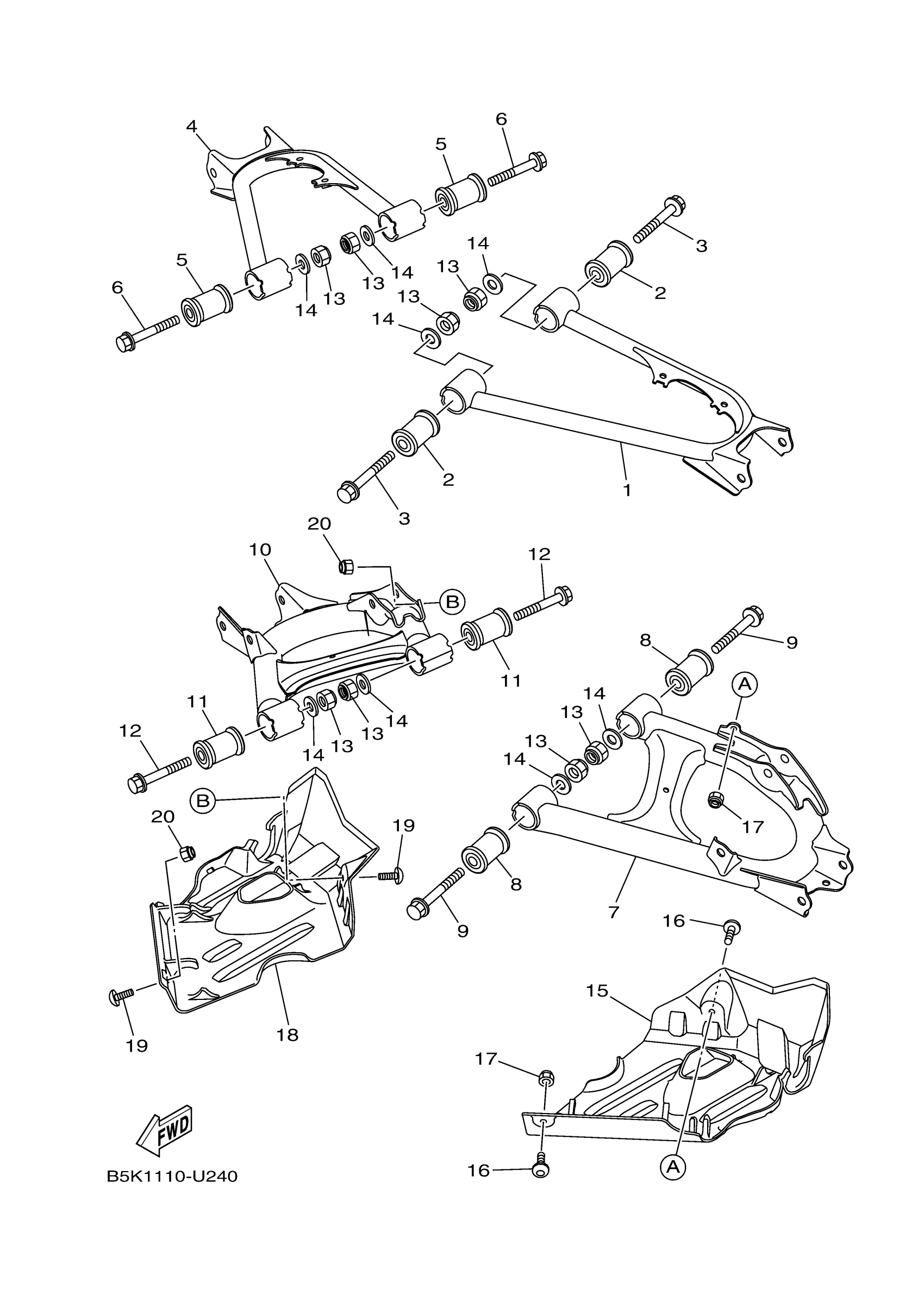

Yamaha YFM70KPSST (KODIAK 700 EPS SE) BVGF 2025 REAR ARM Diagram

#

Description
Price

1

ARM,REAR 1

1HP-F2171-01-00

$31.62

2

BUSH

1HP-F3526-00-00

$20.42

3

BOLT, FLANGE

90105-10484-00

$4.81

4

ARM, REAR 2

1HP-F2172-01-00

$30.42

5

BUSH

1HP-F3526-00-00

$20.42

6

BOLT, FLANGE

90105-10484-00

$4.81

7

ARM 1

1HP-F217M-01-00

$58.24

8

BUSH

1HP-F3526-00-00

$20.42

9

BOLT, FLANGE

90105-10484-00

$4.81

10

ARM 2

1HP-F217N-01-00

Unavailable

11

BUSH

1HP-F3526-00-00

$20.42

12

BOLT, FLANGE

90105-10484-00

$4.81

13

NUT, S/L FLANGE

95602-10200-00

$2.14

14

WASHER, PLATE

90201-10035-00

$3.33

15

COVER, THRUST 1

1HP-F2128-01-00

$16.05

16

BOLT,HEX SKT HEAD

90111-06814-00

Unavailable

17

NUT, NYLON

95707-06300-00

Unavailable

18

COVER, THRUST 2

1HP-F2129-01-00

Unavailable

19

BOLT,HEX SKT HEAD

90111-06814-00

Unavailable

20

NUT, NYLON

95707-06300-00

Unavailable
