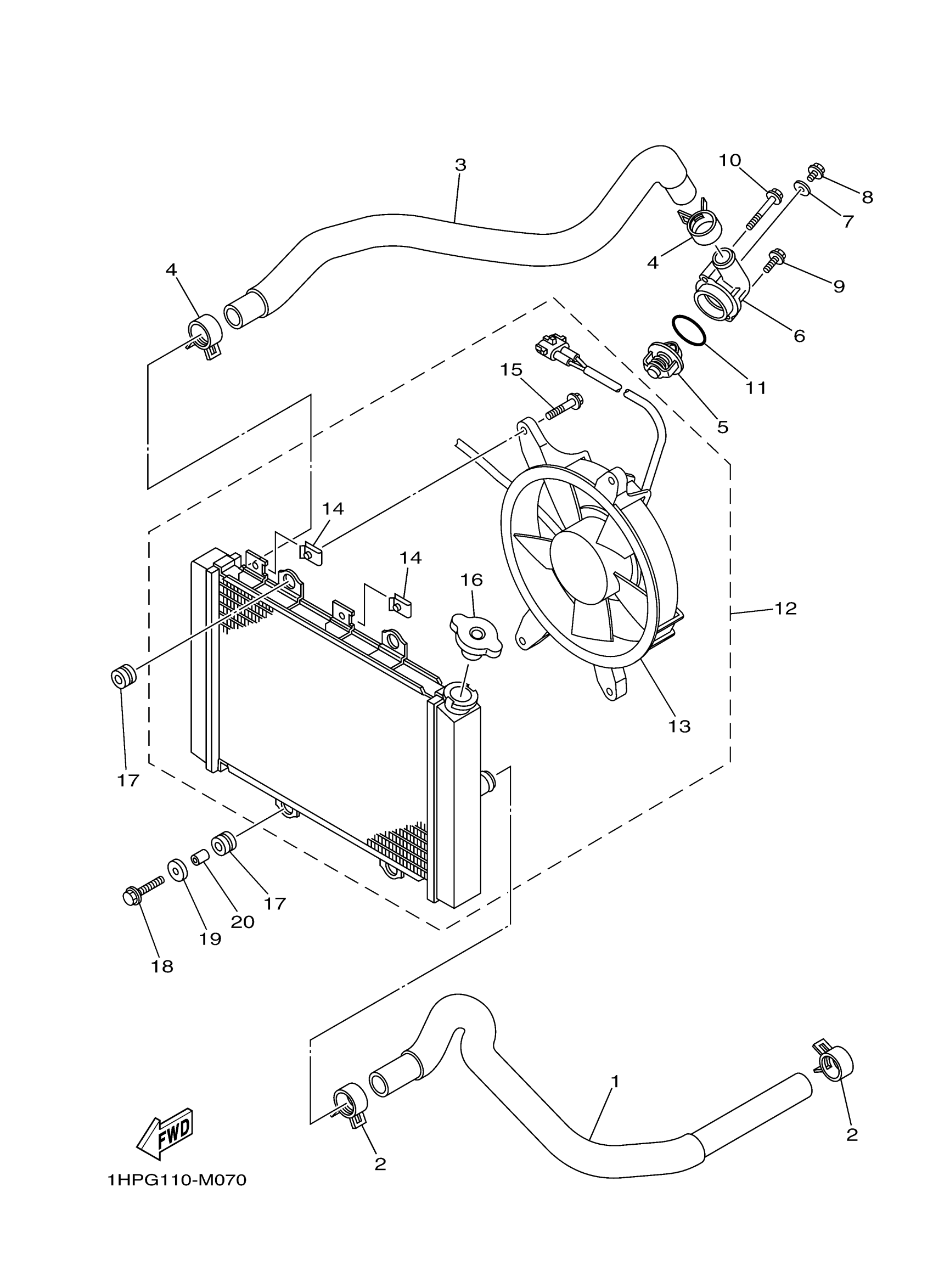

Yamaha YFM70KPSST (KODIAK 700 EPS SE) BVGF 2025 RADIATOR & HOSE Diagram

#

Description
Price

1

HOSE 1

1HP-E2576-00-00

$42.99

2

CLIP

90467-26189-00

$7.49

3

HOSE 3

1HP-E2578-00-00

$30.99

4

CLIP

90467-26189-00

$7.49

5

THERMOSTAT

1XD-12411-01-00

$37.99

6

COVER, THERMOSTAT

1S3-12413-00-00

Unavailable

7

GASKET 256113960000

90430-06014-00

Unavailable

8

BOLT, FLANGE

95022-06010-00

$5.60

9

BOLT, FLANGE

95022-06020-00

$3.62

10

BOLT, FLANGE

95022-06045-00

$4.29

11

O-RING (132)

93210-41042-00

$7.49

12

RADIATOR ASSY

B16-E2460-02-00

$329.99

13

BLOWER ASSY

B16-E2405-01-00

Unavailable

14

. NUT SPRING

1HP-E2535-00-00

Unavailable

15

BOLT, BLOWER HOLDING

1HP-E2675-00-00

$4.68

16

CAP, RADIATOR

1XD-E2462-00-00

Unavailable

17

GROMMET(2GH)

90480-12475-00

Unavailable

18

BOLT, FLANGE

95817-06020-00

Unavailable

19

WASHER

90209-06012-00

Unavailable

20

COLLAR

90387-06113-00

Unavailable
