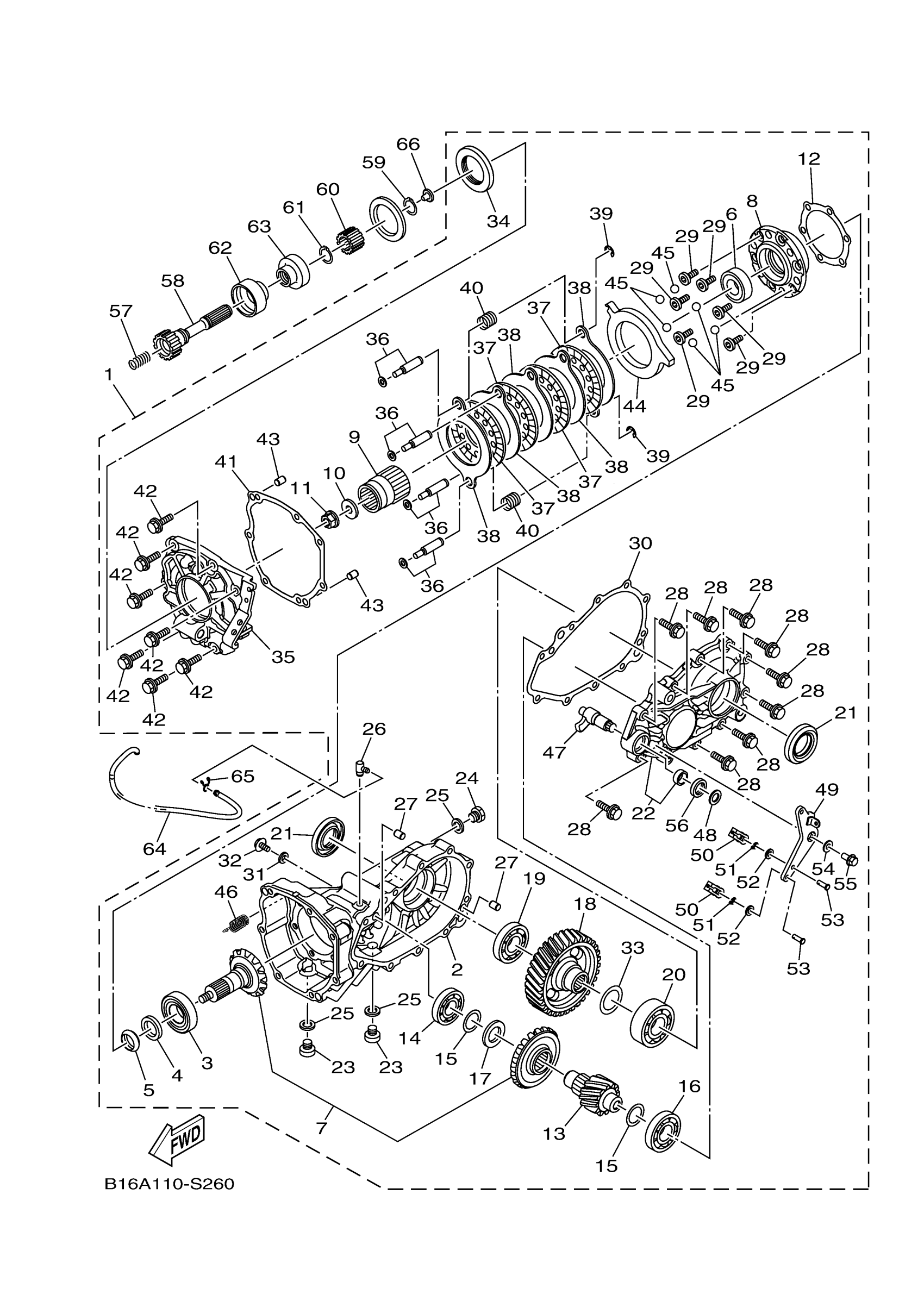

Yamaha YFM70KPSST (KODIAK 700 EPS SE) BVGF 2025 DRIVE SHAFT Diagram
#
2
REAR AXLE HOUSING
B16-46540-00-00
Unavailable
6
BEARING TAPER 52-25 (70R)
93332-00053-00
Unavailable
12
SHIM, DRIVE PINION
B16-46127-40-00
Unavailable
12
SHIM, DRIVE PINION
B16-46127-50-00
Unavailable
13
GEAR, PINION 1
3B4-46316-00-00
Unavailable
14
BEARING (6K8)
93306-205U1-00
Unavailable
15
SHIM, THRUST (0.25T)
3B4-46119-00-00
Unavailable
15
SHIM, THRUST (0.30T)
3B4-46119-10-00
Unavailable
15
SHIM, THRUST (0.35T)
3B4-46119-20-00
Unavailable
15
SHIM, THRUST (0.40T)
3B4-46119-30-00
Unavailable
15
SHIM, THRUST (0.45T)
3B4-46119-40-00
Unavailable
15
SHIM, THRUST (0.50T)
3B4-46119-50-00
Unavailable
16
BEARING(3RR)
93306-30560-00
Unavailable
17
SHIM,THRUST (4.5T)
3B4-4621F-00-00
Unavailable
17
SHIM,THRUST (4.8T)
3B4-4621F-10-00
Unavailable
17
SHIM,THRUST (5.1T)
3B4-4621F-20-00
Unavailable
17
SHIM,THRUST (5.4T)
3B4-4621F-30-00
Unavailable
18
GEAR, WHEEL 1
3B4-46326-01-00
Unavailable
19
BRG,R-B 6007 62MM 150G KY
93306-00702-00
Unavailable
20
BRG,R-B 6207 72MM 280G (688)
93306-207U0-00
Unavailable
21
OIL SEAL
93102-35031-00
Unavailable
22
REAR AXLE HOUSING
B16-46550-00-00
Unavailable
23
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
24
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
25
GASKET
214-11198-01-00
Unavailable
26
BREATHER
5UG-15371-00-00
Unavailable
27
PIN, DOWEL
93610-14002-00
Unavailable
28
BOLT, FLANGE
95822-08035-00
Unavailable
29
BOLT
90109-08237-00
Unavailable
30
GSKT., CASE
B16-4631A-00-00
Unavailable
31
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
32
BOLT, FLANGE
95022-08012-00
Unavailable
33
SHIM (0.25T)
3B4-46344-00-00
Unavailable
33
SHIM (0.30T)
3B4-46344-10-00
Unavailable
33
SHIM (0.35T)
3B4-46344-20-00
Unavailable
33
SHIM (0.40T)
3B4-46344-30-00
Unavailable
33
SHIM (0.45T)
3B4-46344-40-00
Unavailable
33
SHIM (0.50T)
3B4-46344-50-00
Unavailable
34
OIL SEAL
93105-45007-00
Unavailable
35
COVER 1
B16-4613F-00-00
Unavailable
36
BOLT 1
B16-46155-00-00
Unavailable
37
PLATE, FRICTION
B16-42525-00-00
Unavailable
38
PLATE 1
B16-46336-00-00
Unavailable
39
CIRCLIP(J51)
99080-09600-00
Unavailable
40
SPRING, COMPRESSIO
90501-180A2-00
Unavailable
41
GASKET, COVER
B16-4631E-00-00
Unavailable
42
BOLT, FLANGE
95822-08035-00
Unavailable
43
PIN, DOWEL
93610-14002-00
Unavailable
44
CAM, PLATE
B16-4582E-00-00
Unavailable
45
BALL (1M1)
93515-32029-00
Unavailable
46
SPRING, RETURN
B16-46375-00-00
Unavailable
47
SHAFT
B16-46265-00-00
Unavailable
48
WASHER, PLATE
90201-13015-00
Unavailable
49
LEVER, CAMSHAFT
B16-25355-00-00
Unavailable
50
END, CABLE 3
B16-26374-00-00
Unavailable
51
PIN, COTTER (648)
91490-20015-00
Unavailable
52
WASHER, PLAIN (646)
92990-06600-00
Unavailable
53
PIN, CLEVIS (5X6)
91701-06018-00
Unavailable
54
. WASHER
92902-08200-00
Unavailable
55
BOLT, FLANGE
95814-08016-00
Unavailable
56
OIL SEAL
93102-17008-00
Unavailable
57
SPRING, COMPRESSION (400)
90501-20361-00
Unavailable
58
SHAFT, DRIVE
1HP-G6172-00-00
Unavailable
59
CIRCLIP(1EY)
99009-19400-00
Unavailable
60
COUPLING
5KM-46126-00-00
Unavailable
61
CIRCLIP (537)
93410-22039-00
Unavailable
62
SEAL 2
5KM-46137-00-00
Unavailable
63
SEAL 1
5KM-46136-00-00
Unavailable
64
HOSE (L1700)
90445-070G6-00
Unavailable
65
CLIP (1J7)
90467-07029-00
Unavailable
66
DAMPER
5KM-46559-00-00
Unavailable
