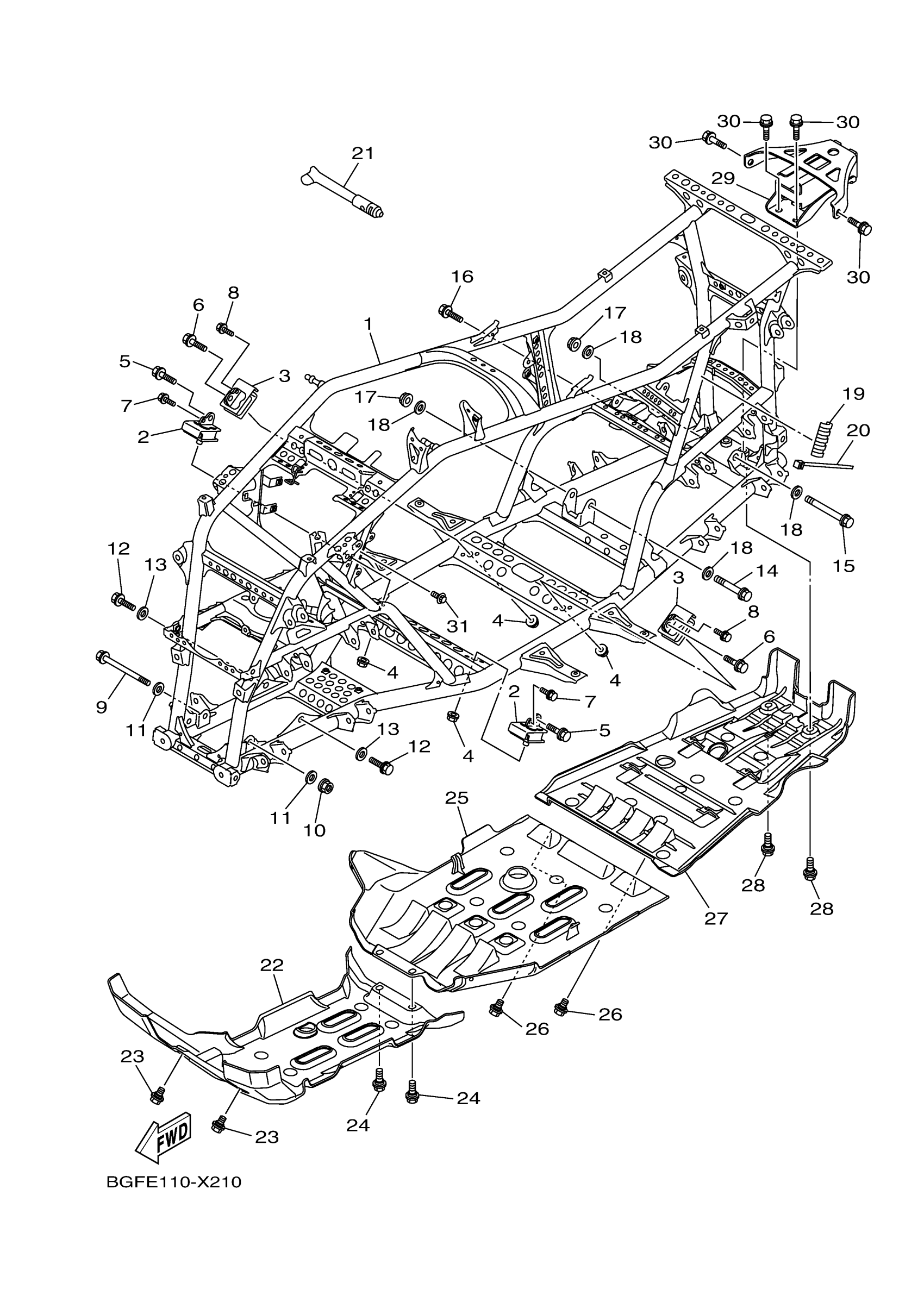

Yamaha YFM70KPSRT (KODIAK 700 EPS SE) BYY6 2024 FRAME Diagram
#
Description
Price
1
FRAME
B16-F1110-11-00
Unavailable
17
NUT, SELF-LOCKING
90185-12002-00
Unavailable
18
WASHER (6E9)
90201-12361-00
Unavailable
19
DAMPER
3B4-2113B-01-00
Unavailable
20
CLAMP(JN6)
90464-40825-00
Unavailable
21
GAUGE, AIR
1NV-2811A-01-00
Unavailable
22
GUARD, ENGINE 1
B16-F147A-00-00
Unavailable
23
BOLT
90109-06202-00
Unavailable
24
BOLT
90109-06214-00
Unavailable
25
GUARD, ENGINE 2
1HP-F147E-02-00
Unavailable
26
BOLT
90109-06214-00
Unavailable
27
GUARD, ENGINE 3
B16-F147F-01-00
Unavailable
28
BOLT
90109-06202-00
Unavailable
29
RR HITCH ASSY
2SM-F3802-00-00
Unavailable
30
BOLT, FLANGE
95812-10016-00
Unavailable
31
BLOT, FLANGE DEEP RECESS
95D32-06012-00
Unavailable
