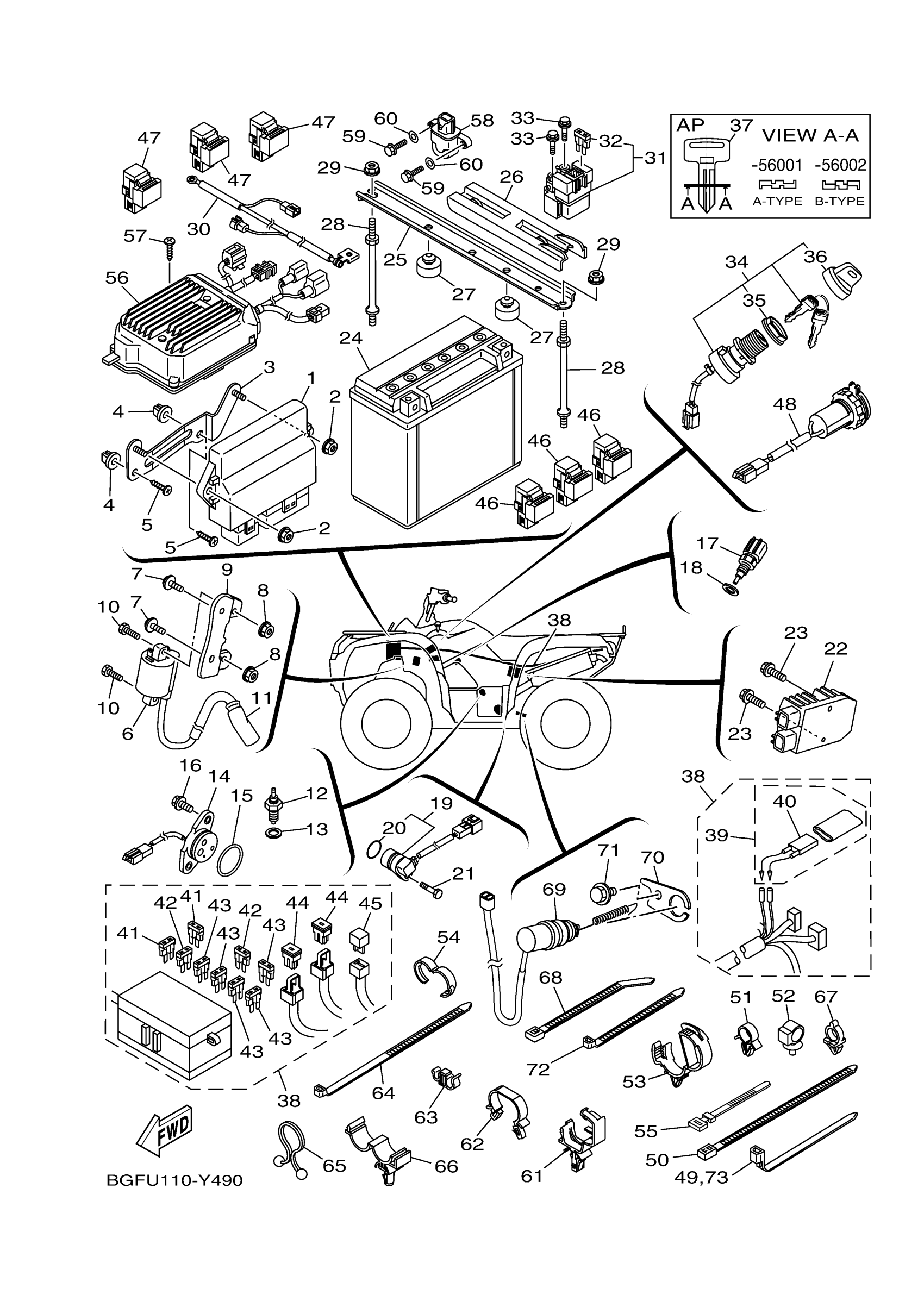

Yamaha YFM70KPSPB (KODIAK 700 EPS SE) BGFU 2023 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNI

B5K-8591A-21-00

Unavailable

2

NUT, FLANGE

95702-06500-00

$2.39

3

BRACKET, UNIT

B4F-H5991-00-00

$5.60

4

PLUG(4BP)

90338-08226-00

$2.17

5

SCREW, TAPPING(JA3)

97707-60520-00

$8.49

6

IGNITION COIL ASSY

1D7-H2310-05-00

Unavailable

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

NUT, U FLANGE

95604-06200-00

$8.49

9

BRACKET, IGNITION COIL

B4F-82316-00-00

Unavailable

10

BOLT, WITH WASHER

90119-06209-00

$5.60

11

PLUG CAP ASSY

5VK-82370-00-00

$62.99

12

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

13

GASKET (1KH,1.0T)

90430-10148-00

$5.60

14

NEUTRAL SWITCH ASSY

3B4-82540-03-00

$75.99

15

O-RING (371)

93210-29196-00

$8.49

16

BOLT, WITH WASHER

90119-06137-00

Unavailable

17

THERMOSENSOR ASSY

5YP-85790-00-00

Unavailable

18

GASKET(2GH)

90430-12202-00

Unavailable

19

SENSOR, SPEED

3B4-83755-01-00

Unavailable

20

O-RING

4D9-81168-00-00

Unavailable

21

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

22

RECTIFIER & REGULATOR ASSY

1D7-81960-10-00

Unavailable

23

BOLT, FLANGE DEEP RECESS

95D32-06020-00

Unavailable

24

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

25

BRACKET, BATTERY

1HP-H2128-00-00

Unavailable

26

COVER, BATTERY

3B4-82129-01-00

Unavailable

27

PAD, SEAT

B4F-F4741-00-00

Unavailable

28

SCREW, FITTING

3B4-82133-20-00

Unavailable

29

NUT, FLANGE

95702-06500-00

$2.39

30

WIRE, MINUS LEAD

34D-82116-01-00

Unavailable

31

STARTER RELAY ASSY (2768113-A)

3B4-81940-00-00

Unavailable

32

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

33

BOLT, FLANGE

95022-06008-00

Unavailable

34

MAIN SWITCH ASSY

28P-82510-02-00

Unavailable

35

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

36

CAP, KEY

3HN-82579-00-00

Unavailable

37

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

37

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable

38

WIRE HARNESS ASSY

B5K-82590-03-00

Unavailable

39

CIRCUIT BREAKER ASSY

5GT-82180-00-00

Unavailable

40

THERMO SWITCH ASSY

4GB-82560-00-00

Unavailable

41

FUSE (15A)

67F-82151-50-00

Unavailable

42

FUSE

5JJ-82151-20-00

Unavailable

43

. FUSE (10A)

67F-82151-40-00

Unavailable

44

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

45

DIODE ASSY

3WP-81980-00-00

Unavailable

46

RELAY ASSY

5DM-81950-01-00

Unavailable

47

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

48

TERMINAL COMP.

1HP-H254B-10-00

Unavailable

49

CLAMP(4FM)

90464-15195-00

Unavailable

50

CLAMP(JN6)

90464-40825-00

Unavailable

51

CLAMP(3XV)

90464-15157-00

Unavailable

52

CLAMP

90464-14013-00

Unavailable

53

CLAMP(4AP)

90464-20181-00

Unavailable

54

CLAMP

90464-16003-00

Unavailable

55

BAND, SWITCH CORD

437-83936-11-00

Unavailable

56

POWER STRG. CONT. UNIT ASSY

2BG-859A0-01-00

Unavailable

57

SCREW, BIND (J17)

98980-06020-00

Unavailable

58

SENSOR, LEAN ANGLE

3B4-82576-10-00

Unavailable

59

BOLT(6A1)

97095-05016-00

Unavailable

60

WASHER, PLAIN (646)

92990-05600-00

Unavailable

61

CLAMP(4SV)

90464-20237-00

Unavailable

62

CLAMP(4NK)

90464-24230-00

Unavailable

63

CLAMP

90464-09027-00

Unavailable

64

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

65

CLAMP

90464-14800-00

Unavailable

66

CLAMP

90464-16012-00

Unavailable

67

CLAMP

90464-12830-00

Unavailable

68

CLAMP

90465-10098-00

Unavailable

69

Stop Switch Assy

18P-82530-01-00

Unavailable

70

BRACKET, STOP SWIT

B16-21441-00-00

Unavailable

71

BOLT, FLANGE

95812-06010-00

Unavailable

72

CLAMP (6E5)

90465-13M11-00

Unavailable

73

CLAMP(4FM)

90464-15195-00

Unavailable
