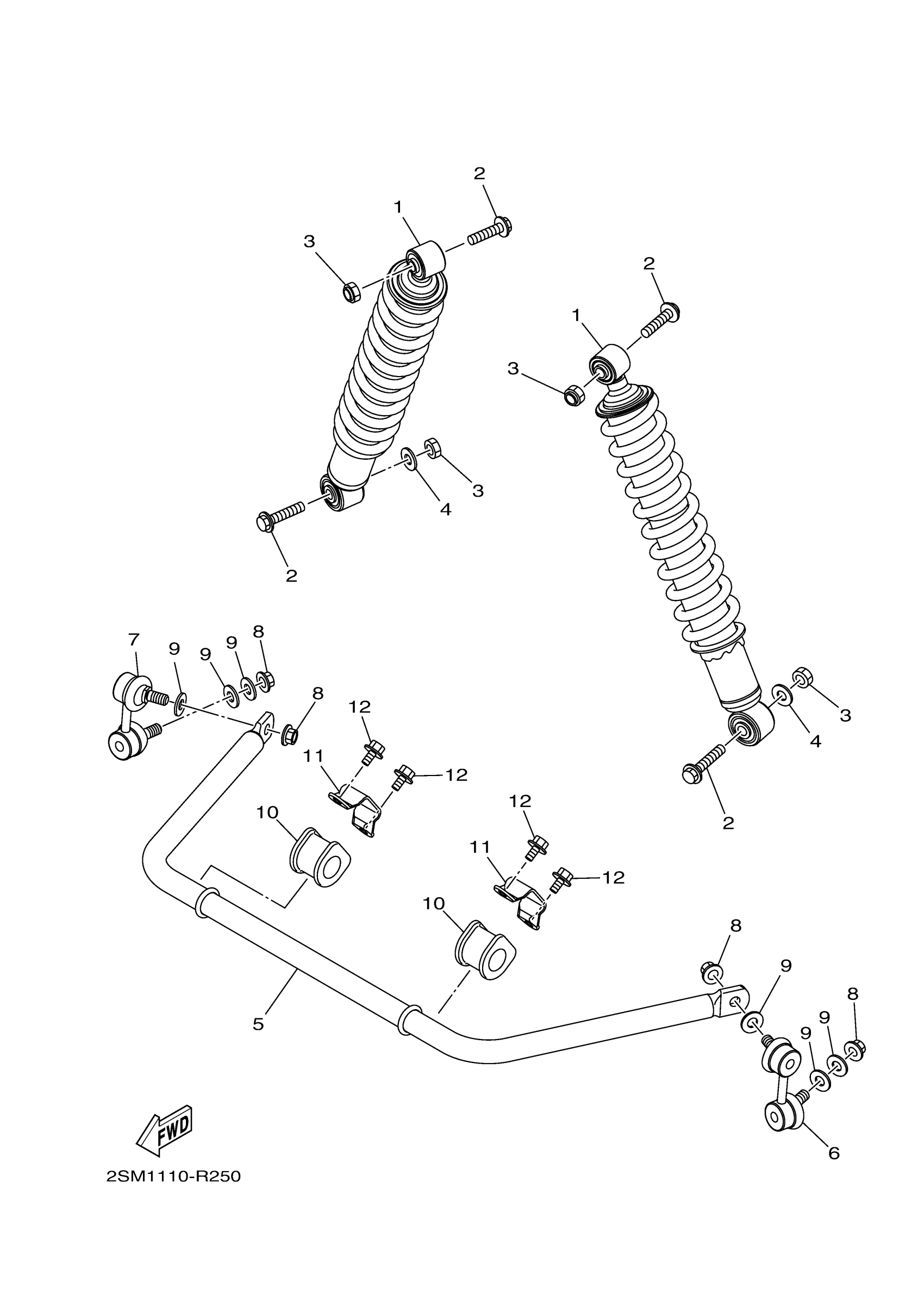

Yamaha YFM70KPSJS (_KPSJS KODIAK 700 EPS 4WD SE) B32B1 2018 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

2SM-F2210-10-00

$220.99

2

BOLT, FLANGE

90105-10131-00

$5.60

3

NUT, SELF-LOCKING

90185-10012-00

$9.49

4

WASHER, PLATE

90201-10035-00

$4.19

5

BAR, STABILIZER

1HP-G7491-01-00

Unavailable

6

JOINT, STABILIZER 1

16B-2385L-10-00

$72.99

7

JOINT, STABILIZER 2

16B-2385M-10-00

$72.99

8

NUT, S/L FLANGE

95602-10200-00

$4.82

9

WASHER, PLATE

90201-10035-00

$4.19

10

BUSH, STABILIZER F

1HP-F386G-00-00

$4.21

11

COVER, STABILIZER

1HP-F386H-00-00

$5.49

12

BOLT, FLANGE

95817-08014-00

$5.60
