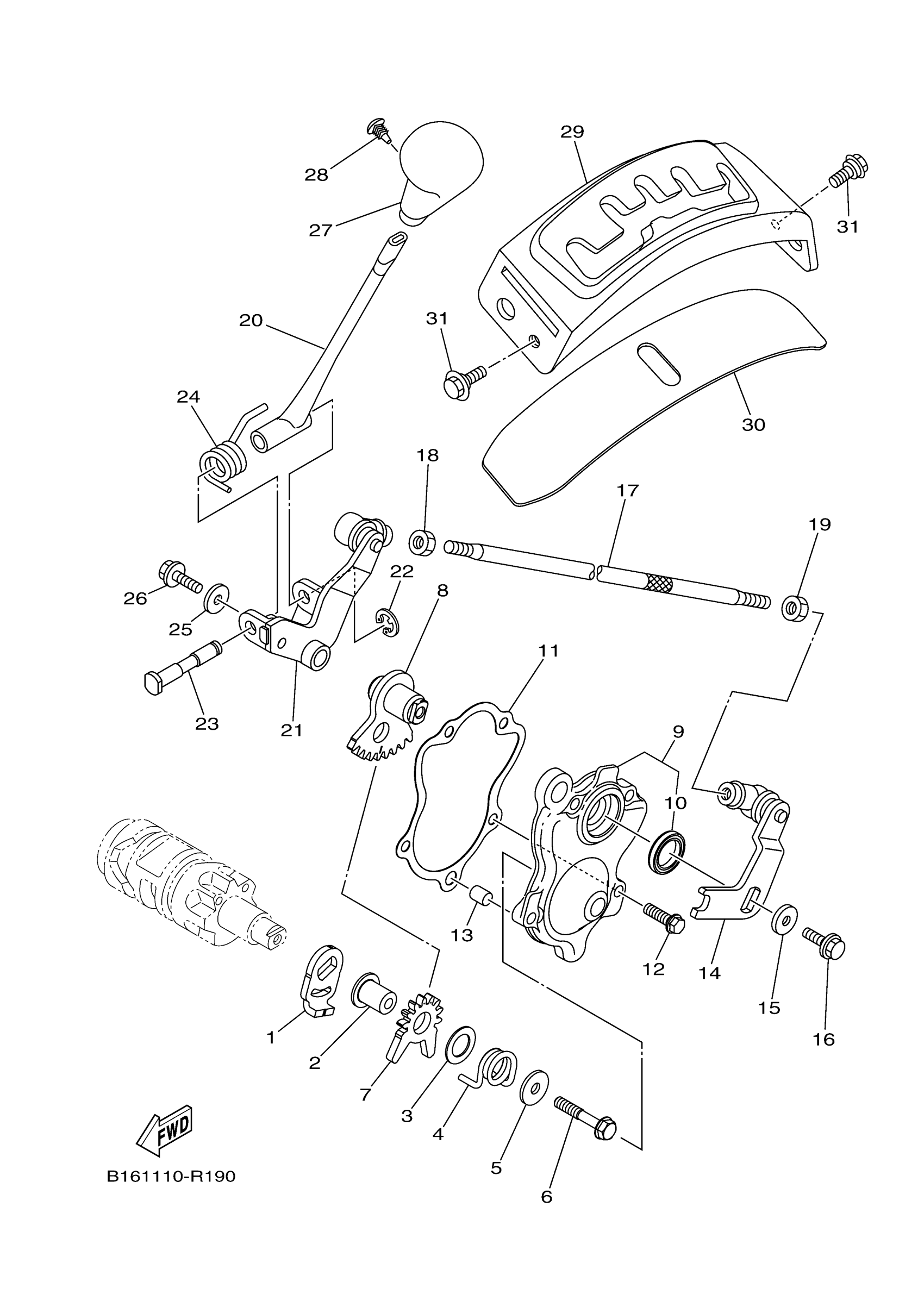

Yamaha YFM70KPSHB (KODIAK 700 EPS 4WD SE) B32A 2017 SHIFT SHAFT Diagram
#
Description
Price
2
COLLAR, SHIFTER
2MB-E8413-00-00
Unavailable
3
WASHER 1
2MB-E8137-00-00
Unavailable
6
BOLT 2
2MB-E5482-20-00
Unavailable
7
LEVER
2MB-E8191-00-00
Unavailable
8
SHIFT SHAFT COMP.
B16-E8103-00-00
Unavailable
9
SHIFTER BRKT. ASSY
B16-E8380-00-00
Unavailable
13
PIN, DOWEL
2MB-E8438-00-00
Unavailable
16
BOLT, FLANGE
90105-06175-00
Unavailable
17
ROD, SHIFT
B16-18115-00-00
Unavailable
18
NUT (2H9)
90170-06228-00
Unavailable
19
NUT(JN5)
95317-06700-00
Unavailable
20
LEVER COMP. 1
1HP-E8190-01-00
Unavailable
21
ARM, SHIFT 2
1HP-E8169-00-00
Unavailable
22
CIRCLIP(53L)
99001-06600-00
Unavailable
23
SHAFT, SHIFT
1HP-E8125-00-00
Unavailable
24
SPRING, RETURN
1HP-E8196-00-00
Unavailable
26
BOLT, FLANGE
95817-06016-00
Unavailable
27
KNOB, SHIFT LEVER
28P-18174-00-00
Unavailable
28
RIVET(81E)
90269-05055-00
Unavailable
29
GUIDE, SHIFT
1HP-E8172-00-00
Unavailable
30
COVER, DUST
1HP-E8154-01-00
Unavailable
31
BOLT
90109-06043-00
Unavailable
