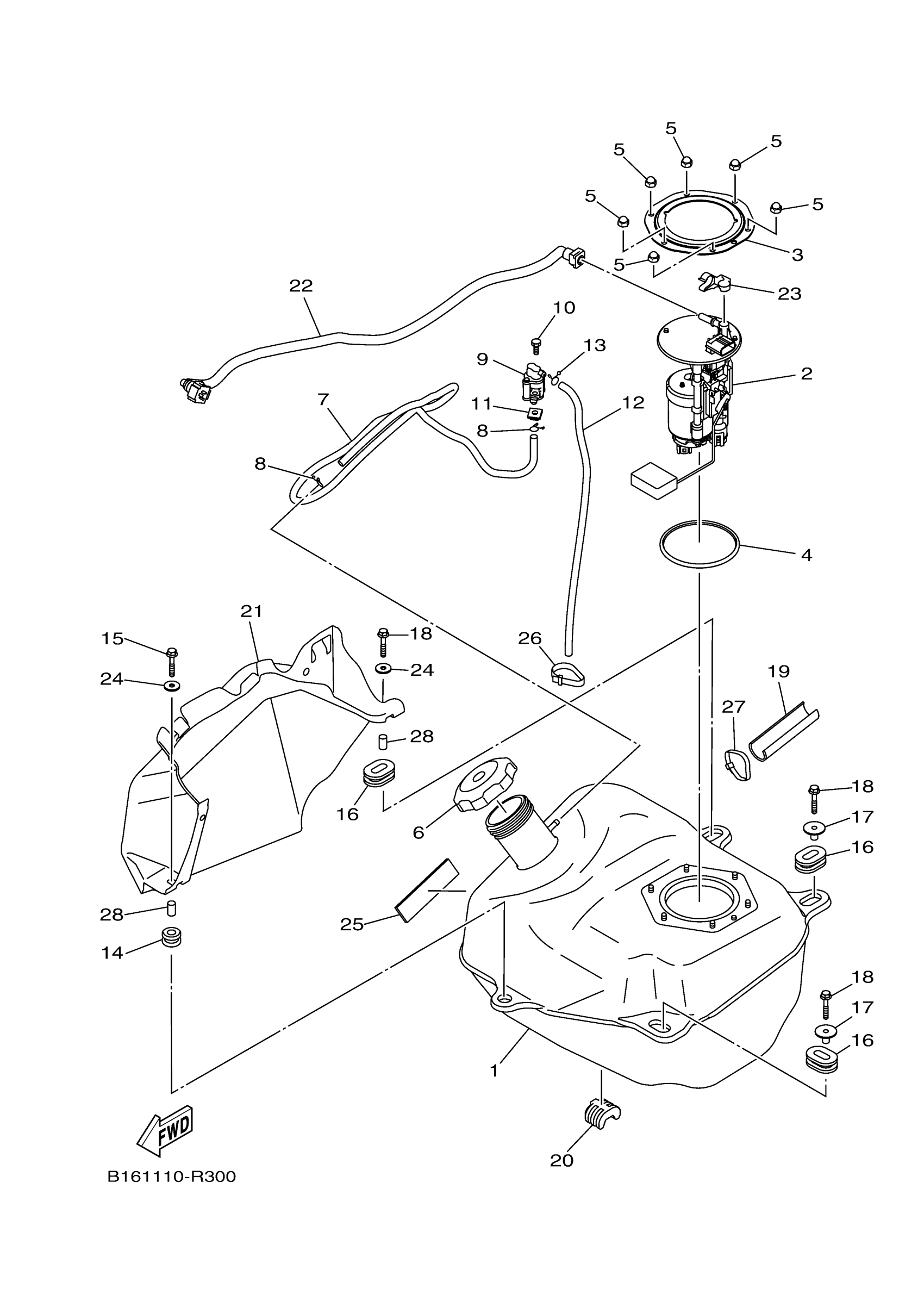

Yamaha YFM70KPSHB (KODIAK 700 EPS 4WD SE) B32A 2017 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

B16-F4110-00-00

$172.64

2

FUEL PUMP COMP.

B16-13907-03-00

$388.27

3

BRACKET, FUEL PUMP

3B4-24491-00-00

Unavailable

4

O-RING

1S3-24486-00-00

$14.07

5

NUT (J17)

95380-06800-00

$6.28

6

CAP ASSY

BVG-24610-00-00

Unavailable

7

HOSE (L1030)

90445-09829-00

$18.14

8

CLIP

90467-090A2-00

$2.47

9

PIPE JOINT ASSY

28P-24380-00-00

$32.59

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

11

NUT, SPRING

90183-061A3-00

$6.64

12

HOSE (L470)

90445-09828-00

$18.14

13

CLIP

90467-090A2-00

$2.47

14

GROMMET (4V1)

90480-18290-00

$6.54

15

BOLT, FLANGE

95817-06035-00

$5.02

16

GROMMET(38W)

90480-01400-00

Unavailable

17

COLLAR

90387-07021-00

Unavailable

18

BOLT, FLANGE

95817-06035-00

$5.02

19

DAMPER, LOCATING 2

B16-F4182-04-00

Unavailable

20

DAMPER, LOCATING 1

B16-F4181-00-00

Unavailable

21

PROTECTOR, FUEL TA

B16-F4141-00-00

Unavailable

22

PIPE, FUEL 1

B16-13971-01-00

Unavailable

23

CLAMP

90464-14004-00

Unavailable

24

WASHER, PLATE

90201-06036-00

Unavailable

25

DAMPER 1

2PA-21541-00-00

Unavailable

26

CLAMP

90464-25003-00

Unavailable

27

CLAMP

90464-32801-00

$1.23

28

COLLAR

90387-06M19-00

$3.50
