Description

Price

1

ARM,REAR 1

1HP-F2171-01-00

$40.99

2

BUSH

1HP-F3526-00-00

$22.99

3

BOLT, WASHER BASED

90105-10011-00

$12.49

4

ARM, REAR 2

1HP-F2172-01-00

$41.99

5

BUSH

1HP-F3526-00-00

$22.99

6

BOLT, WASHER BASED

90105-10011-00

$12.49

7

ARM 1

1HP-F217M-01-00

$71.99

8

BUSH

1HP-F3526-00-00

$22.99

9

BOLT, WASHER BASED

90105-10011-00

$12.49

10

ARM 2

1HP-F217N-01-00

Unavailable

11

BUSH

1HP-F3526-00-00

$22.99

12

BOLT, WASHER BASED

90105-10011-00

$12.49

13

NUT, SELF-LOCKING

90185-10012-00

$9.49

14

WASHER, PLATE

90201-10035-00

$4.19

15

COVER, THRUST 1

1HP-F2128-01-00

$22.99

16

BOLT,HEX SKT HEAD

90111-06814-00

Unavailable

17

NUT, NYLON

95707-06300-00

Unavailable

18

COVER, THRUST 2

1HP-F2129-01-00

Unavailable

19

BOLT,HEX SKT HEAD

90111-06814-00

Unavailable

20

NUT, NYLON

95707-06300-00

Unavailable

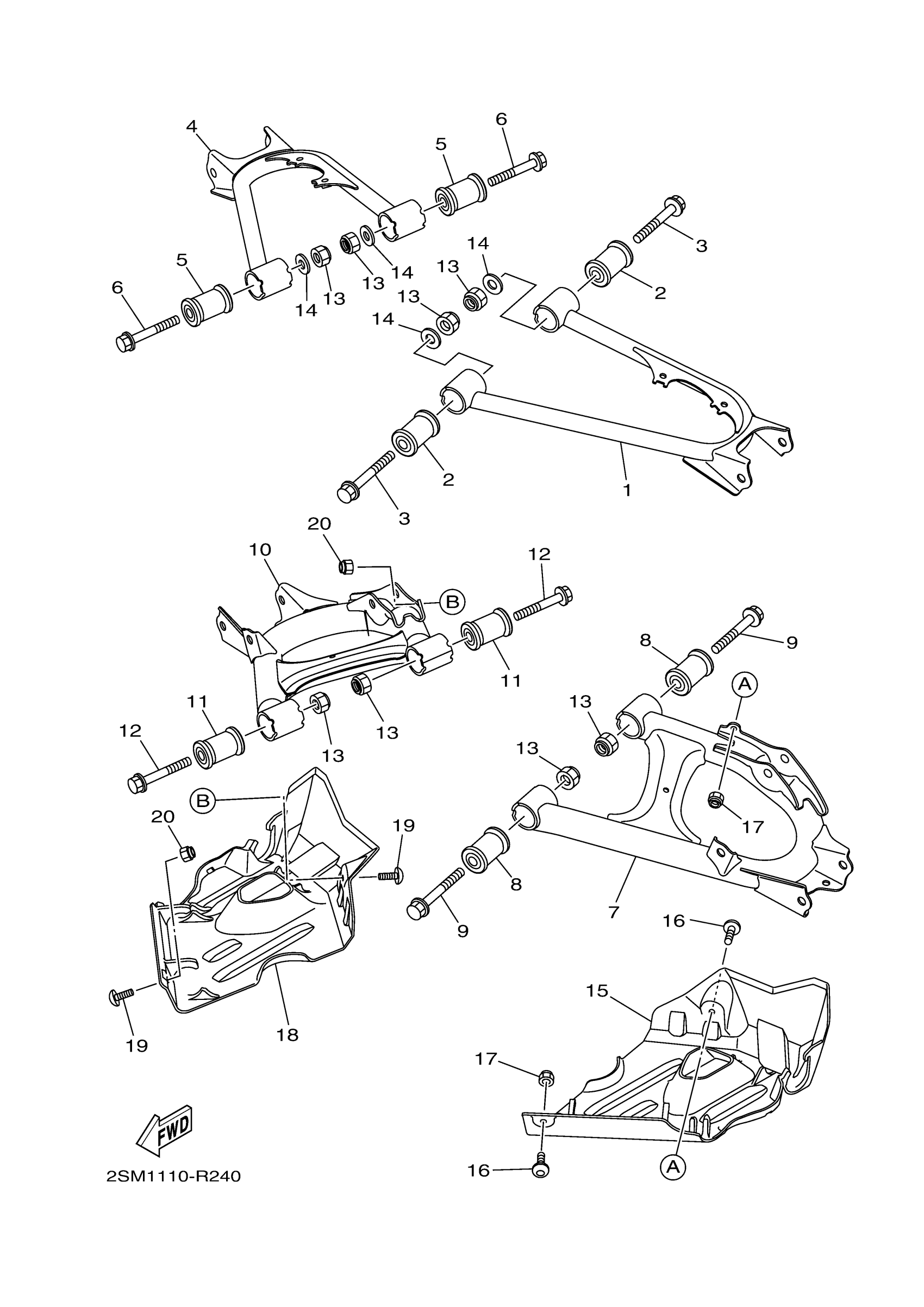

Yamaha YFM70KPSGB (KODIAK 700 EPS 4WD SE) B321 2016 REAR ARM Diagram

ARM,REAR 1

BUSH

BOLT, WASHER BASED

ARM, REAR 2

BUSH

BOLT, WASHER BASED

ARM 1

BUSH

BOLT, WASHER BASED

ARM 2

BUSH

BOLT, WASHER BASED

NUT, SELF-LOCKING

WASHER, PLATE

COVER, THRUST 1

BOLT,HEX SKT HEAD

NUT, NYLON

COVER, THRUST 2

BOLT,HEX SKT HEAD

NUT, NYLON
