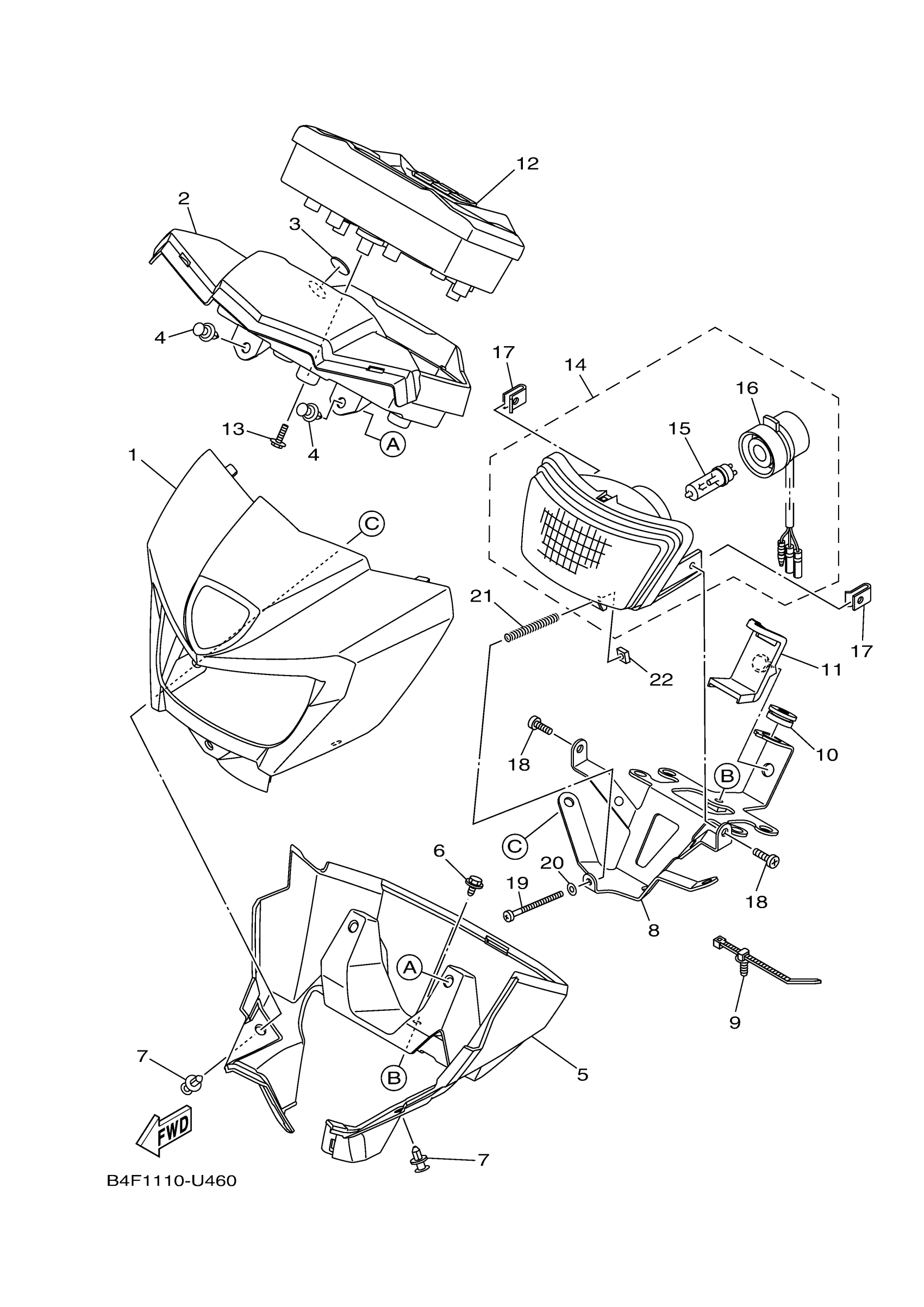

Yamaha YFM70KPHTF (KODIAK 700 EPS HUNTING) BVGM 2026 HEADLIGHT 2 Diagram

#

Description
Price

1

COVER COMP.

BB5-H252L-01-00

Unavailable

2

COVER, METER

B5K-H3559-00-00

$9.31

3

TUNING FORK MARK

5GT-2836B-10-00

$14.37

4

RIVET

90269-07010-00

$3.75

5

COVER,HDLBR UPR 1

2SM-F6143-01-00

$7.80

6

BOLT, WITH WASHER (25K)

90119-06079-00

$0.97

7

RIVET

90269-07010-00

$3.75

8

STAY

B4F-F6292-00-00

$14.40

9

CLAMP

1NS-F1338-00-00

$2.92

10

GROMMET(4FU)

90480-13567-00

$3.88

11

PROTECTOR 1

B4F-F622K-00-00

$1.72

12

METER ASSY

BVG-H3500-00-00

$153.86

13

SCREW, TAPPING(3VP)

90163-05006-00

$2.68

14

HEADLIGHT ASSY

2PA-84300-00-00

$79.19

15

BULB, HEADLIGHT

5VM-84314-00-00

$41.61

16

SOCKET CORD ASSY 1

2PA-84340-00-00

$37.63

17

NUT

5VM-84117-00-00

$5.57

18

SCREW, PAN

98517-05012-00

$3.91

19

SCREW, ADJUSTING

5BF-8433E-00-00

$6.11

20

WASHER, PLAIN (646)

92990-04600-00

$0.92

21

SPRING, COMPRESSION

90501-100A3-00

$6.25

22

NUT, ADJUSTING

5VM-84334-00-00

$5.75
