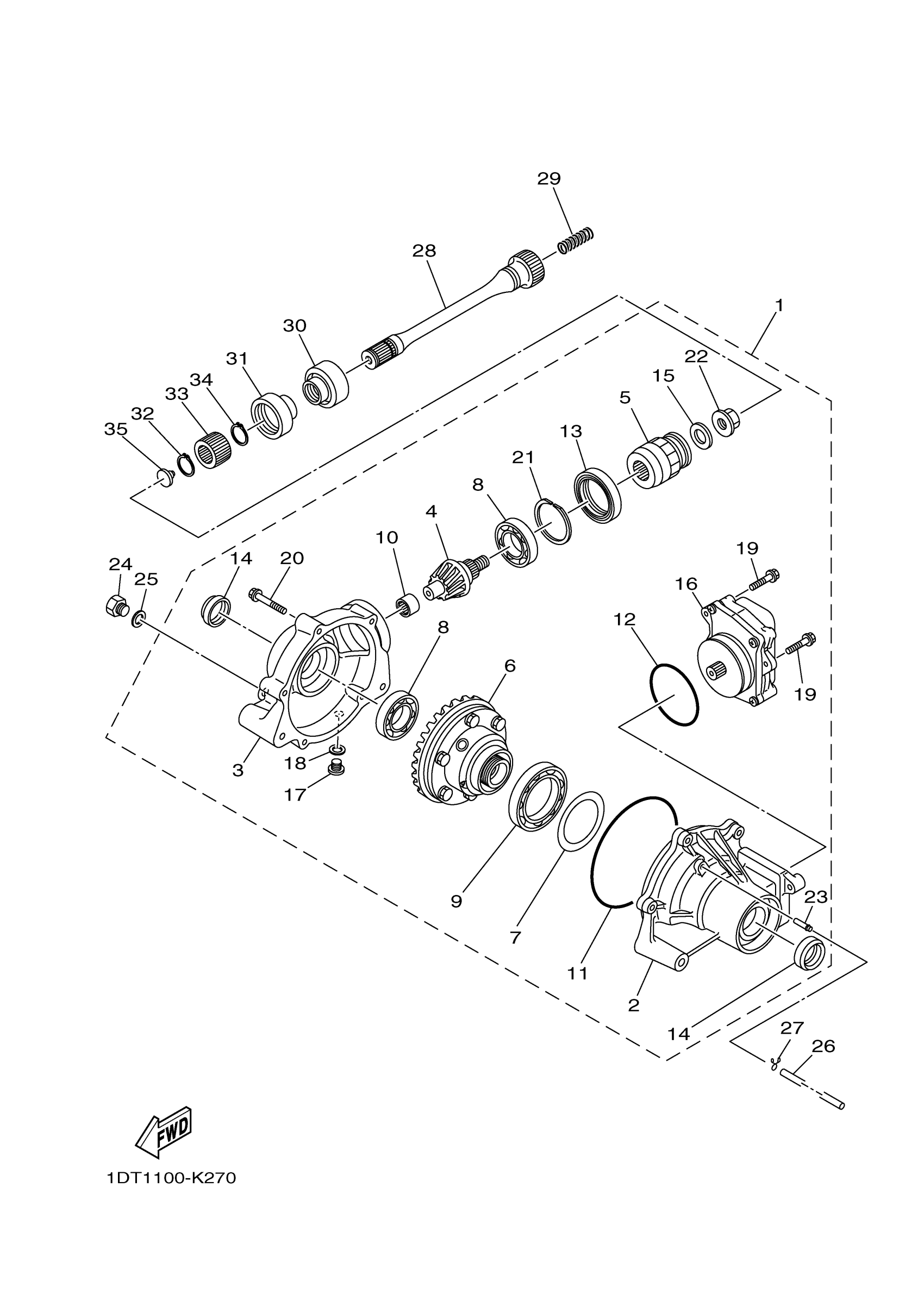

Yamaha YFM70KPHTF (KODIAK 700 EPS HUNTING) BVGM 2026 FRONT DIFFERENTIAL Diagram

#

Description
Price

1

FRONT AXLE GEAR CASE COMP.

1HP-46160-01-00

$2,048.99

2

HOUSING, BEARING 2

3B4-46162-01-00

$391.02

3

HOUSING, SHAFT DRIVE 2

3B4-46161-00-00

$247.66

4

PINION, DRIVE 2

1XD-46141-00-00

$234.37

5

CUPLING

3B4-67839-10-00

$156.88

6

LIMITED SLIP DIFF. ASSY

1XD-46470-01-00

$882.99

7

SHIM, RING GEAR (0.1T)

3B4-46117-00-00

$8.15

7

SHIM, RING GEAR (0.2T)

3B4-46117-10-00

$13.48

7

SHIM, RING GEAR (0.3T)

3B4-46117-20-00

$9.06

7

SHIM, RING GEAR (0.4T)

3B4-46117-30-00

$8.15

8

BEARING(2HR)

93306-00612-00

$42.56

9

BEARING 1

3B4-46164-00-00

$74.44

10

BEARING 3

3B4-46166-00-00

$22.15

11

O-RING 1

3B4-46134-00-00

$15.83

12

O-RING 2

3B4-46135-00-00

$4.74

13

OIL SEAL

93105-46001-00

$18.74

14

SEAL,OIL 1

3B4-46163-00-00

$16.86

15

WASHER

3B4-47359-00-00

$6.80

16

SERVO MOTOR COMP

1HP-4616A-00-00

$458.30

17

PLUG, STRIGHT SCREW(5GH1)

90340-10001-00

$3.65

18

GASKET

90430-10003-00

$7.51

19

BOLT, FLANGE

95812-06014-00

$5.45

20

BOLT, FLANGE

95817-08040-00

$5.43

21

RING,HOLE SNAP 1

3B4-46142-00-00

$10.40

22

NUT 1

4WV-46145-11-00

$9.60

23

TUBE

5GH-46293-00-00

$6.31

24

PLUG, STRAIGHT(2E9)

90340-14029-00

$3.20

25

GASKET

214-11198-01-00

$2.66

26

HOSE (L1050)

90445-072G8-00

$23.46

27

CLIP (1J7)

90467-07029-00

$1.92

28

SHAFT, DRIVE 2

1HP-G6173-00-00

$103.74

29

SPRING, COMPRESSION (400)

90501-20361-00

$10.92

30

SEAL 2

5KM-46137-00-00

$14.62

31

SEAL 1

5KM-46136-00-00

$7.51

32

CIRCLIP(1EY)

99009-19400-00

$6.17

33

COUPLING

5KM-46126-00-00

$57.01

34

CIRCLIP (537)

93410-22039-00

$6.17

35

DAMPER

5KM-46559-00-00

$6.72
