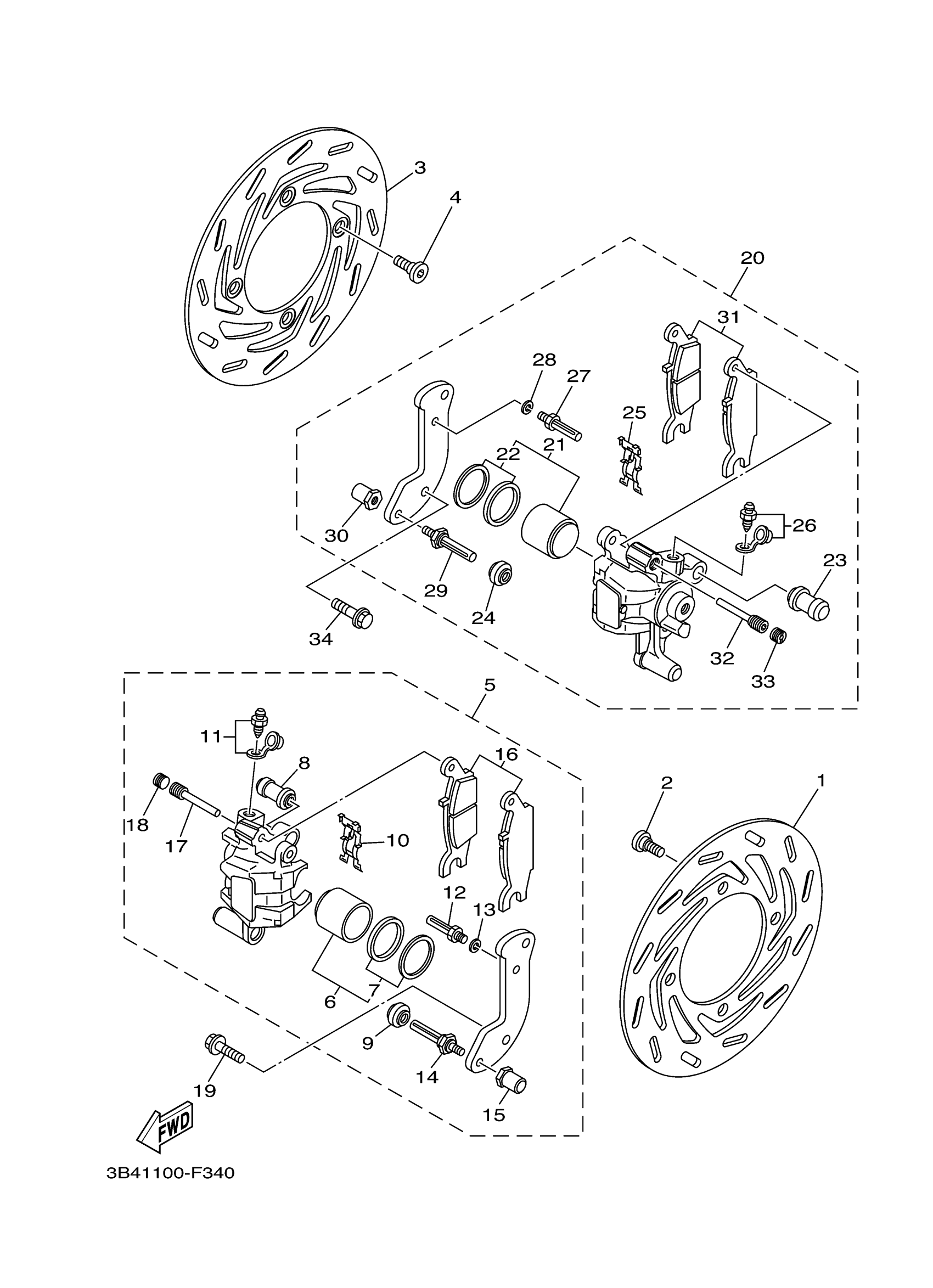

Yamaha YFM70KPHTF (KODIAK 700 EPS HUNTING) BVGM 2026 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

1HP-F582T-00-00

$64.18

2

BOLT

90109-08087-00

$2.65

3

DISC, BRAKE (LEFT)

1HP-F582T-00-00

$64.18

4

BOLT

90109-08087-00

$2.65

5

CALIPER ASSY LEFT

3B4-2580T-02-00

$260.56

6

PISTON ASSY, CALIPER

3B4-W0057-00-00

$70.93

7

CALIPER SEAL KIT

3B4-W0047-00-00

$12.52

8

BOOT 2

1UY-25937-51-00

$12.27

9

BOOT, CALIPER

3JD-25917-00-00

$7.51

10

SUPPORT, PAD

5DH-25919-00-00

$17.74

11

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

12

BOLT

1UY-25926-51-00

$3.34

13

WASHER, SPRING

1UY-25938-51-00

$7.51

14

BOLT

3JD-25926-00-00

$6.43

15

NUT

3JD-25961-00-00

$6.94

16

BRAKE PAD KIT

3B4-W0045-00-00

$40.38

17

PIN, PAD

5DH-25933-00-00

$17.38

18

PLUG

5DH-25916-00-00

$7.45

19

BOLT, FLANGE

90105-08161-00

$5.86

20

CALIPER ASSY (RIGHT)

3B4-2580U-02-00

$260.56

21

PISTON ASSY, CALIPER

3B4-W0057-00-00

$70.93

22

CALIPER SEAL KIT

3B4-W0047-00-00

$12.52

23

BOOT 2

1UY-25937-51-00

$12.27

24

BOOT, CALIPER

3JD-25917-00-00

$7.51

25

SUPPORT, PAD

5DH-25919-00-00

$17.74

26

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

27

BOLT

1UY-25926-51-00

$3.34

28

WASHER, SPRING

1UY-25938-51-00

$7.51

29

BOLT

3JD-25926-00-00

$6.43

30

NUT

3JD-25961-00-00

$6.94

31

BRAKE PAD KIT

3B4-W0045-10-00

$40.38

32

PIN, PAD

5DH-25933-00-00

$17.38

33

PLUG

5DH-25916-00-00

$7.45

34

BOLT, FLANGE

90105-08161-00

$5.86
