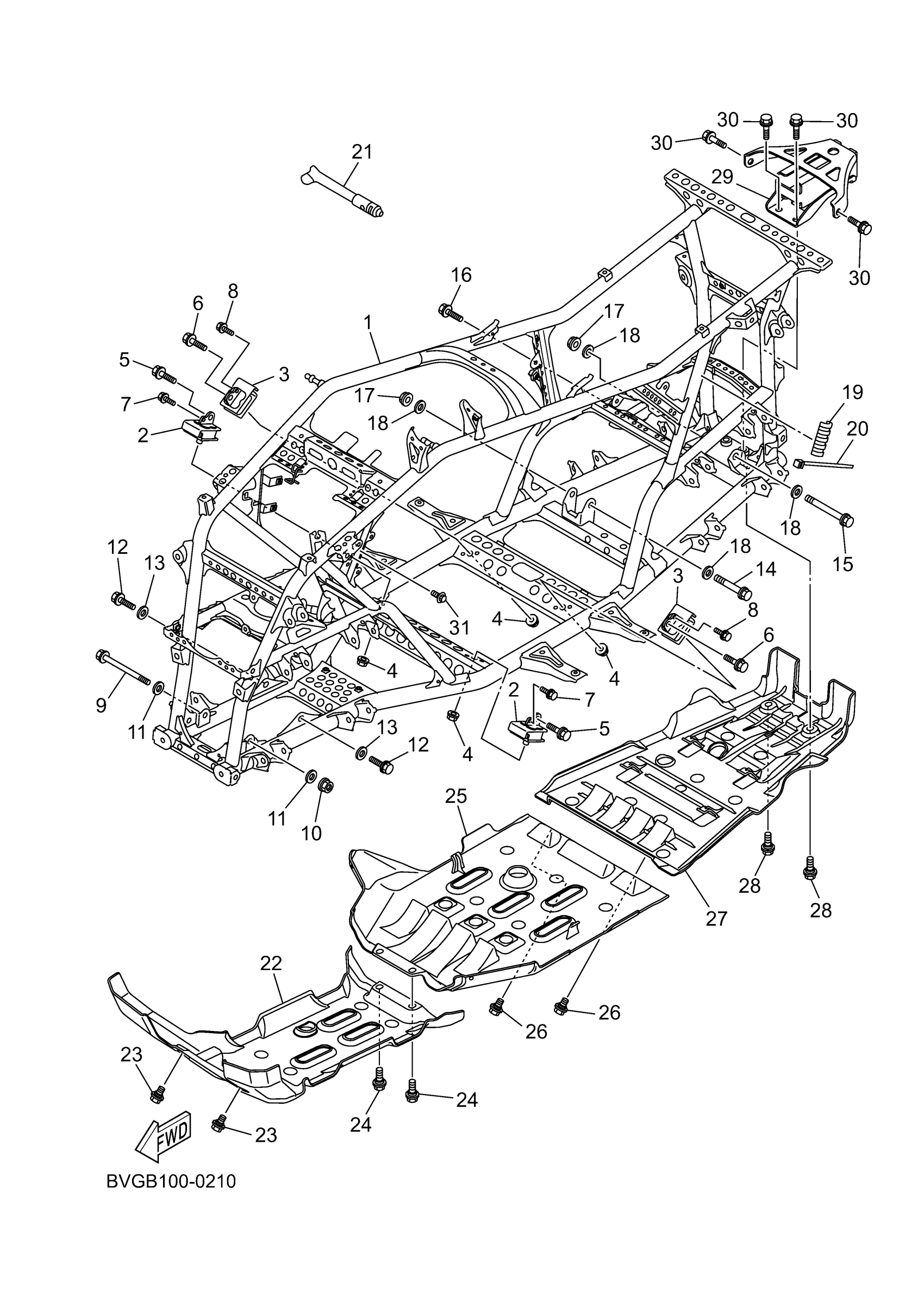

Yamaha YFM70KPHTF (KODIAK 700 EPS HUNTING) BVGM 2026 FRAME Diagram

#

Description
Price

1

FRAME COMP.

BVG-F1110-00-00

Unavailable

2

DAMPER, RUBBER 1

B16-21485-00-00

$27.77

3

DAMPER, RUBBER 1

B16-21485-00-00

$27.77

4

NUT, SELF-LOCKING

90185-10011-00

$3.92

5

BOLT, FLANGE

95812-10035-00

$4.86

6

BOLT, FLANGE

95812-10035-00

$4.86

7

BOLT, FLANGE(2UJ)

95024-06016-00

$6.68

8

BOLT, FLANGE(2UJ)

95024-06016-00

$6.68

9

BOLT, FLANGE

90105-10219-00

$5.74

10

NUT, SELF-LOCKING

90185-10011-00

$3.92

11

WASHER, PLATE

90201-10035-00

$3.56

12

BOLT, FLANGE

95817-10030-00

$6.17

13

WASHER, PLATE

90201-10035-00

$3.56

14

BOLT,WASHER BASED

90105-12803-00

$4.35

15

BOLT, FLANGE

90105-12065-00

$9.10

16

BOLT, FLANGE

95817-10030-00

$6.17

17

NUT, SELF-LOCKING

90185-12002-00

Unavailable

18

WASHER (6E9)

90201-12361-00

Unavailable

19

DAMPER

3B4-2113B-01-00

Unavailable

20

CLAMP(JN6)

90464-40825-00

Unavailable

21

GAUGE, AIR

1NV-2811A-01-00

Unavailable

22

GUARD, ENGINE 1

B16-F147A-00-00

Unavailable

23

BOLT

90109-06202-00

Unavailable

24

BOLT

90109-06214-00

Unavailable

25

GUARD, ENGINE 2

1HP-F147E-02-00

Unavailable

26

BOLT

90109-06214-00

Unavailable

27

GUARD, ENGINE 3

B16-F147F-01-00

Unavailable

28

BOLT

90109-06202-00

Unavailable

29

RR HITCH ASSY

2SM-F3802-00-00

Unavailable

30

BOLT, FLANGE

95812-10016-00

Unavailable

31

BLOT, FLANGE DEEP RECESS

95D32-06012-00

Unavailable
