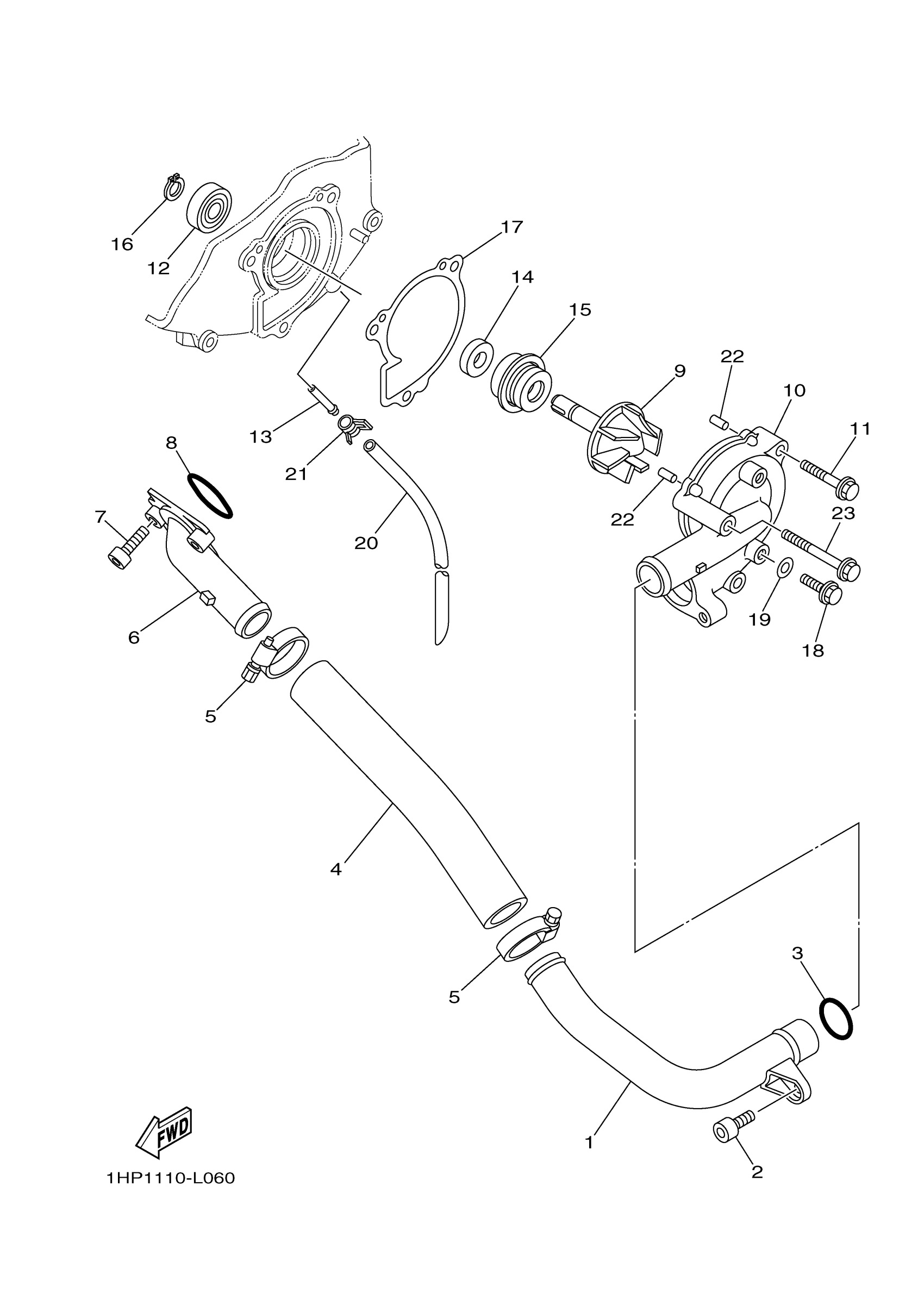

Yamaha YFM70KPHSF (KODIAK 700 EPS HUNTING) BVGD 2025 WATER PUMP Diagram

#

Description
Price

1

PIPE 1

3B4-12481-00-00

$33.08

2

BOLT,SOCKET

91317-06012-00

$5.75

3

O-RING

93210-21190-00

$5.37

4

HOSE 2

3B4-12577-01-00

$25.90

5

HOSE CLAMP ASSY

90450-32015-00

$14.22

6

JOINT 1

5KM-12469-00-00

$45.93

7

BOLT,SOCKET HEAD

91314-06020-00

$1.91

8

O-RING

93210-33006-00

$4.51

9

IMPELLER SHAFT ASSY

3B4-12450-00-00

$43.71

10

COVER, HOUSING

3B4-12422-00-00

$58.53

11

BOLT, FLANGE

95022-06030-00

$1.31

12

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$30.52

13

PIPE, DRAIN

B4D-E243K-00-00

$4.30

14

OIL SEAL (J10)

93101-10090-00

$5.75

15

SEAL, MECHANICAL

11H-12438-10-00

$48.82

16

CIRCLIP(10W)

99009-10400-00

Unavailable

17

GASKET, HOUSING COVER 2

3B4-12428-00-00

Unavailable

18

BOLT, FLANGE

95022-06010-00

Unavailable

19

GASKET 256113960000

90430-06014-00

Unavailable

20

HOSE (L1050)

90445-072G8-00

Unavailable

21

CLIP(42X)

90467-07093-00

Unavailable

22

PIN,DOWEL (603)

93604-10011-00

Unavailable

23

BOLT, FLANGE

95022-06050-00

Unavailable
