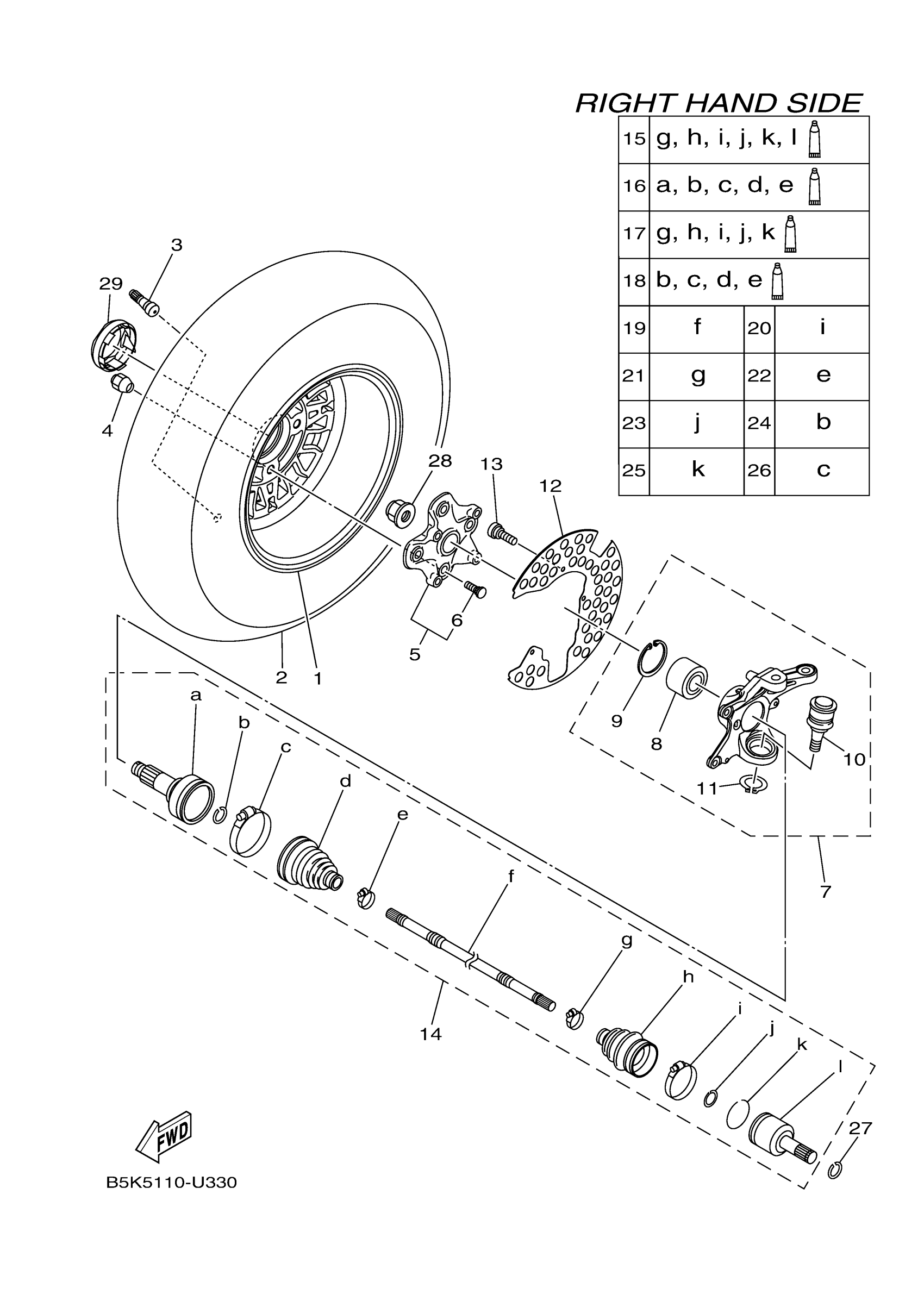

Yamaha YFM70KPHSF (KODIAK 700 EPS HUNTING) BVGD 2025 FRONT WHEEL 2 Diagram

#

Description
Price

1

CAST WHEEL, FRONT

B32-F5168-00-00

$221.99

2

AT25X8.00-12 MU19

94108-12817-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT

90179-10032-00

$13.49

5

HUB ASSY 2

B16-F510D-03-00

$47.99

6

BOLT, SERRATION

90114-10014-00

$7.49

7

STEERING,KNUCKLE (R)

2BG-F3502-11-00

$163.99

8

BEARING

93305-00602-00

$101.99

9

CIRCLIP

99009-55500-00

$9.49

10

BALL JOINT 2

3B4-23579-01-00

$83.99

11

CIRCLIP(4A6)

99009-30400-00

$8.49

12

RING, WHEEL 1 (LEF

BB5-F514A-00-00

$14.99

13

SCREW, BIND(1JK)

98980-06010-00

$9.49

14

DRIVE SHAFT ASSY

28P-2518F-04-00

$279.99

15

DOUBLE OFF SET JOI

28P-2510J-02-00

$293.99

16

BALL JOINT SET

28P-2510F-05-00

Unavailable

17

BOOT SET(DOUBLE OF

28P-2510H-03-00

Unavailable

18

BOOT SET (BALL JOI

28P-2510G-02-00

Unavailable

19

SHAFT

28P-2518E-01-00

Unavailable

20

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

Unavailable

21

BOOT BAND (SMALL)

3B4-2512G-00-00

Unavailable

22

BOOT BAND (SMALL)

28P-2512G-00-00

Unavailable

23

SNAP RING

3B4-2512J-00-00

Unavailable

24

CIRCLIP

3B4-2512H-00-00

Unavailable

25

CIRCLIP

3B4-25182-00-00

Unavailable

26

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

Unavailable

27

CIRCLIP(2HR)

93450-22119-00

Unavailable

28

NUT

90179-20016-00

Unavailable

29

WHEEL CAP ASSY.

1RB-F530B-00-00

Unavailable
