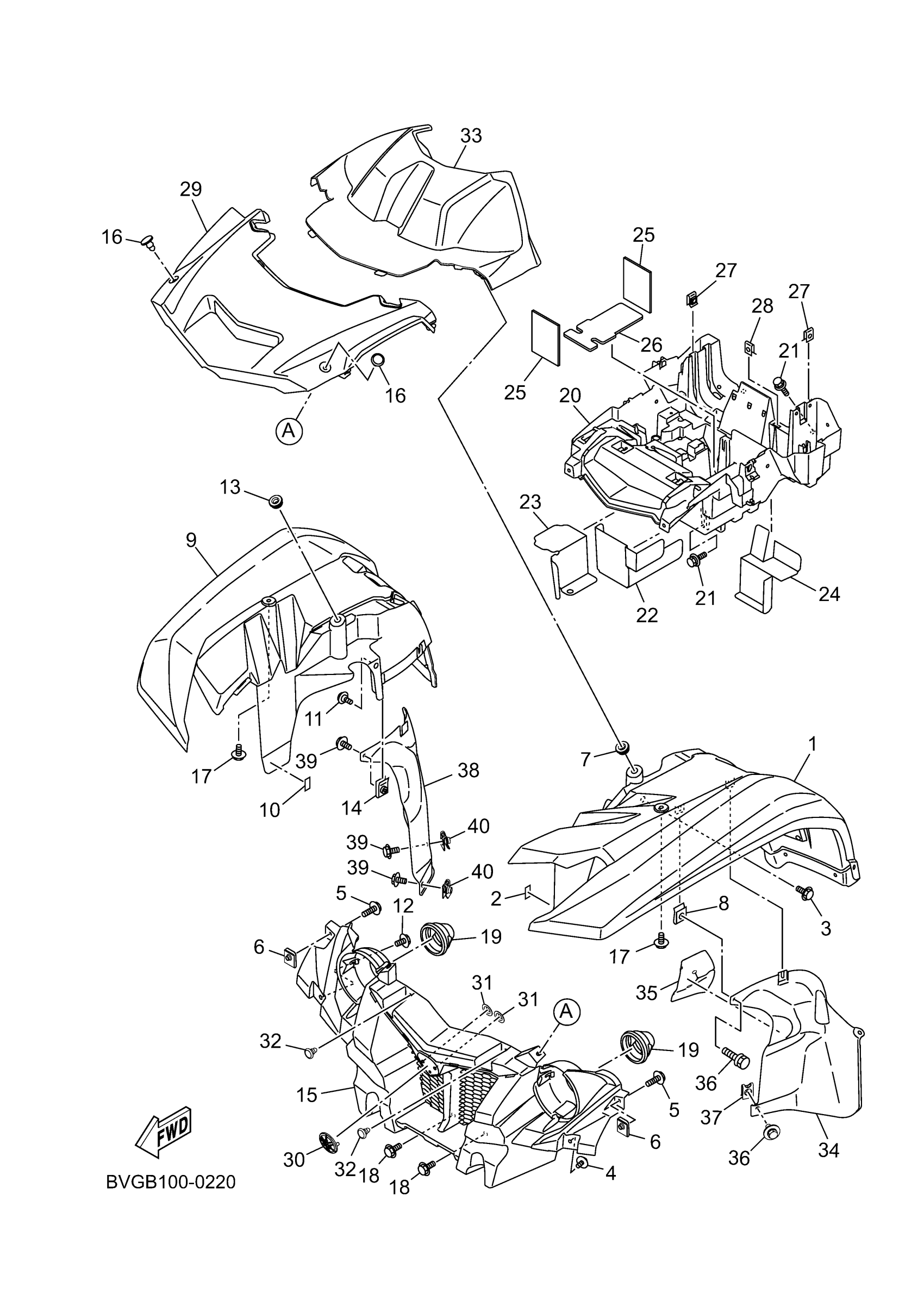

Yamaha YFM70KPHSF (KODIAK 700 EPS HUNTING) BVGD 2025 FRONT FENDER Diagram
#
Description
Price
3
BOLT
90109-06043-00
Unavailable
8
NUT, SPRING(4ES)
90183-06069-00
Unavailable
11
BOLT
90109-06043-00
Unavailable
14
NUT, SPRING(4ES)
90183-06069-00
Unavailable
16
RIVET
90269-07010-00
Unavailable
18
BOLT
90109-06043-00
Unavailable
19
CAP
5UH-F8349-00-00
Unavailable
20
BOX, BATTERY 1
1HP-H212B-02-00
Unavailable
22
INSULATOR 1
1HP-H253E-01-00
Unavailable
23
INSULATOR 2
1HP-H253F-00-00
Unavailable
24
INSULATOR
1HP-H254E-01-00
Unavailable
25
INSU.
3B4-8233W-10-00
Unavailable
26
SEAT, BATTERY
3B4-82122-00-00
Unavailable
27
NUT, SPRING(4ES)
90183-06069-00
Unavailable
28
NUT, SPRING
90183-05008-00
Unavailable
29
FRONT PANEL COMP.
B6K-F330D-00-00
Unavailable
30
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
31
NUT, SPRING
90183-06071-00
Unavailable
32
RIVET
90269-07010-00
Unavailable
33
PANEL ACCESS. COMP
B6K-F83V0-01-00
Unavailable
34
FENDER, INNER
1HP-F1552-00-00
Unavailable
35
SEAL 1
1HP-F1575-01-00
Unavailable
37
NUT, SPRING(4ES)
90183-06069-00
Unavailable
38
FENDER, INNER 2
1HP-F1553-00-00
Unavailable
40
NUT, SPRING(4ES)
90183-06069-00
Unavailable
