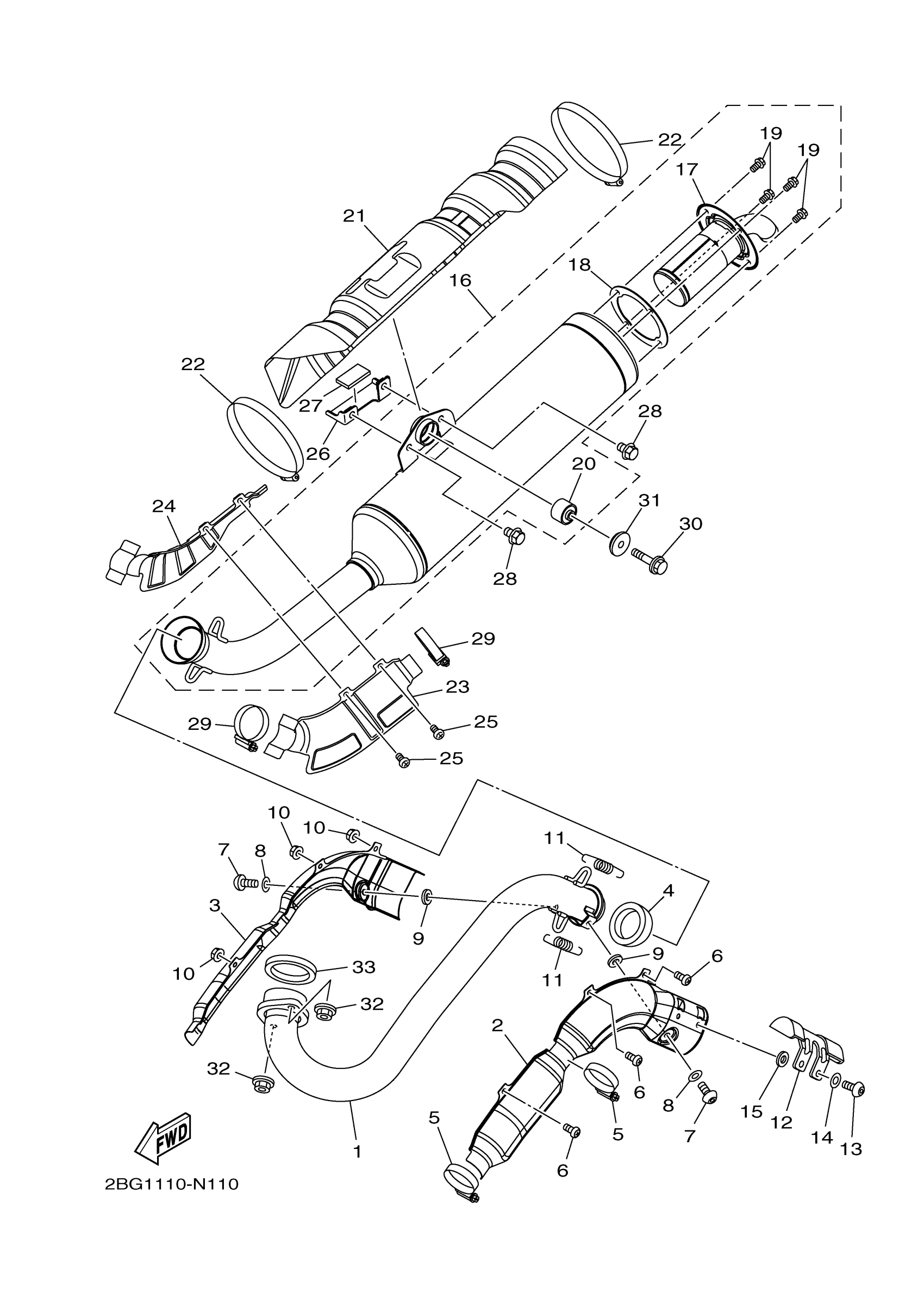

Yamaha YFM70KPHSF (KODIAK 700 EPS HUNTING) BVGD 2025 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

2BG-E4611-01-00

Unavailable

2

COVER, EXHAUST

2BG-E4627-00-00

$41.27

3

PROTECTOR, EXT. PI

B16-E463B-00-00

$46.45

4

GASKET,MUFFLER

1HP-E4714-00-00

$30.22

5

HOSE CLAMP ASSY

90450-45806-00

$18.12

6

SCREW, PAN

98517-06012-00

$2.93

7

BOLT, BUTTON HEAD

92012-06010-00

$2.28

8

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

9

WASHER, PLATE

90201-05037-00

$3.26

10

NUT, FLANGE

95702-06500-00

$1.95

11

SPRING, TENSION

90506-30006-00

$13.70

12

PROTECTOR, SILENCE

1HP-E4758-00-00

Unavailable

13

BOLT, BUTTON HEAD

92012-06012-00

$2.33

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

15

WASHER, PLATE

90201-05015-00

$5.86

16

MUFFLER COMP. 1

BVG-E4703-00-00

Unavailable

17

SPARK ARRESTER ASS

2BG-E4780-00-00

Unavailable

18

GASKET, SILENCER

2BG-E4755-00-00

Unavailable

19

BOLT, FLANGE

95022-06012-00

Unavailable

20

DAMPER,FOOTREST

1HP-F7414-00-00

Unavailable

21

PROTECTOR, MUFFLER

1HP-E4718-00-00

Unavailable

22

HOSE CLAMP ASSY

90450-99805-00

Unavailable

23

PROTECTOR ASSY 1

1HP-E471C-00-00

Unavailable

24

PROTECTOR ASSY., 2

1HP-E472C-00-00

Unavailable

25

SCREW, PAN

98517-06012-00

$2.93

26

STOPPER 1

1HP-E477U-00-00

Unavailable

27

MAT 1

1HP-E4733-00-00

Unavailable

28

BOLT, FLANGE

95817-08012-00

Unavailable

29

HOSE CLAMP ASSY

90450-45806-00

$18.12

30

BOLT, FLANGE

95817-08040-00

Unavailable

31

WASHER

3B4-14759-01-00

Unavailable

32

NUT,FLANGE(J10)

95702-08500-00

Unavailable

33

GASKET, EXHAUST PIPE

3EG-14613-00-00

Unavailable
