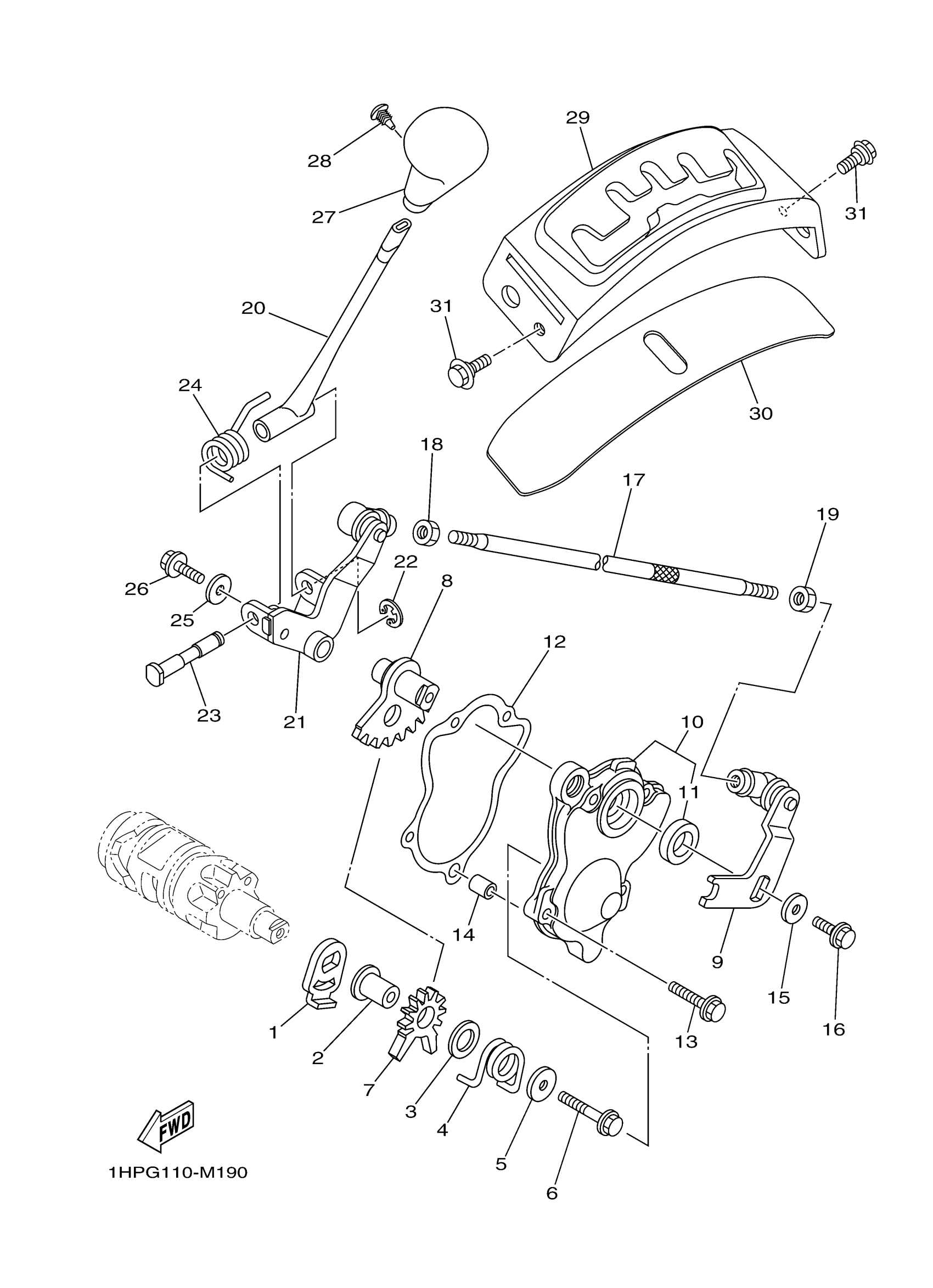

Yamaha YFM70KPATG (KODIAK 700 EPS) BVGK 2026 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

4SH-18198-00-00

$19.46

2

COLLAR

90387-0613B-00

$7.26

3

WASHER, PLATE

90201-13013-00

$6.29

4

SPRING, TORSION

90508-32117-00

$5.94

5

WASHER, PLATE

90201-06036-00

$6.26

6

95812-06035

95812-06035-00

$5.35

7

LEVER

5KM-18191-00-00

$22.14

8

SHIFT SHAFT COMP.

1HP-18103-00-00

$56.03

9

SHIFT GUIDE COMP.

28P-18104-00-00

$30.88

10

SHIFTER BRKT. ASSY

1HP-18380-00-00

$36.86

11

OIL SEAL (15A)

93102-17263-00

$8.91

12

GASKET

3B4-18146-00-00

$5.93

13

. BOLT, FLANGE

95027-06020-00

$1.00

14

PIN, DOWEL

99530-08012-00

$6.62

15

WASHER, PLATE

90201-06036-00

$6.26

16

BOLT, FLANGE

90105-06175-00

$2.54

17

ROD, SHIFT

28P-18115-00-00

$23.69

18

NUT (2H9)

90170-06228-00

$5.20

19

NUT(JN5)

95317-06700-00

$6.69

20

LEVER COMP. 1

1HP-E8190-01-00

$17.40

21

ARM, SHIFT 2

1HP-E8169-00-00

$14.64

22

CIRCLIP(53L)

99001-06600-00

$0.70

23

SHAFT, SHIFT

1HP-E8125-00-00

$9.92

24

SPRING, RETURN

1HP-E8196-00-00

$6.02

25

WASHER, PLATE

90201-06036-00

$6.26

26

BOLT, FLANGE

95817-06016-00

$1.49

27

KNOB, SHIFT LEVER

28P-18174-00-00

$19.09

28

RIVET(81E)

90269-05055-00

$7.02

29

GUIDE, SHIFT

1HP-E8172-00-00

Unavailable

30

COVER, DUST

1HP-E8154-01-00

$5.42

31

BOLT

90109-06043-00

$2.31
