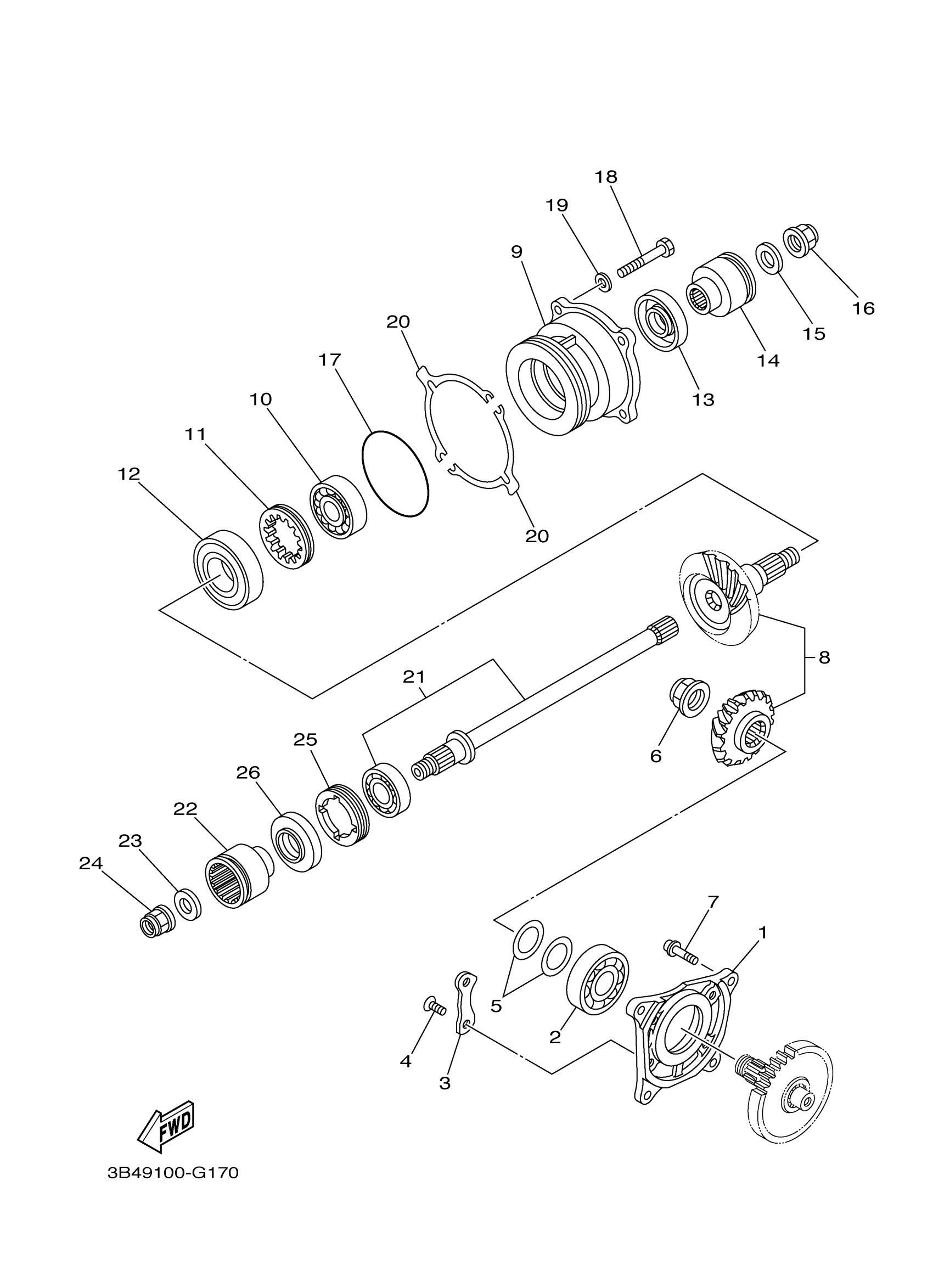

Yamaha YFM70KPATG (KODIAK 700 EPS) BVGK 2026 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

HOUSING, BEARING

3B4-17521-00-00

$79.25

2

BEARING(3RR)

93306-30560-00

$71.07

3

PLATE, BEARING COVER

11H-15383-02-00

$11.03

4

SCREW

90149-08013-00

$6.25

5

SHIM, PINION (0.5T)

5KM-17531-50-00

$6.38

5

SHIM, PINION (0.55T)

5KM-17531-60-00

$3.31

5

SHIM, PINION (0.6T)

5KM-17531-70-00

$3.48

5

SHIM, PINION (0.7T)

5KM-17531-80-00

$3.37

5

SHIM, PINION (0.8T)

5KM-17531-90-00

$3.51

5

SHIM, PINION (0.9T)

5KM-17531-A0-00

$3.51

5

SHIM, PINION (1.0T)

5KM-17531-B0-00

$3.34

6

NUT

90179-22013-00

$23.54

7

BOLT, HEXAGON SOCKET HEAD

90110-08092-00

$5.78

8

PINION SET

3B4-17530-01-00

$351.15

9

HOUSING, BEARING

3B4-17551-00-00

$184.86

10

BEARING(1LX)

93306-37204-00

$44.26

11

NUT

90179-60001-00

$25.54

12

BEARING

93306-20654-00

$66.52

13

OIL SEAL

93102-30010-00

$14.37

14

COUPLING

3B4-17832-10-00

$79.38

15

WASHER, PLATE

90201-16021-00

$7.49

16

Nut

90179-16006-00

$16.37

17

O-RING (14X)

93210-78544-00

$10.65

18

BOLT, HEXAGON

97017-08030-00

$6.85

19

.. WASHER, PLATE

92990-08600-00

$2.36

20

SHIM, PINION (0.1T)

3B4-17531-00-00

$5.06

20

SHIM, PINION (0.15T)

3B4-17531-10-00

$4.95

20

SHIM, PINION (0.2T)

3B4-17531-20-00

$4.98

20

SHIM, PINION (0.3T)

3B4-17531-30-00

$5.00

20

SHIM, PINION (0.4T)

3B4-17531-40-00

$4.91

20

SHIM, PINION (0.5T)

3B4-17531-50-00

$5.06

20

SHIM, PINION (0.6T)

3B4-17531-60-00

$5.00

21

MIDDLE DRIVEN SHAFT ASSY

3B4-1755A-00-00

$250.40

22

COUPLING

3B4-17832-10-00

$79.38

23

WASHER, PLATE

90201-16021-00

$7.49

24

Nut

90179-16006-00

$16.37

25

NUT(4KB)

90179-55660-00

$49.43

26

OIL SEAL

93102-30010-00

$14.37
