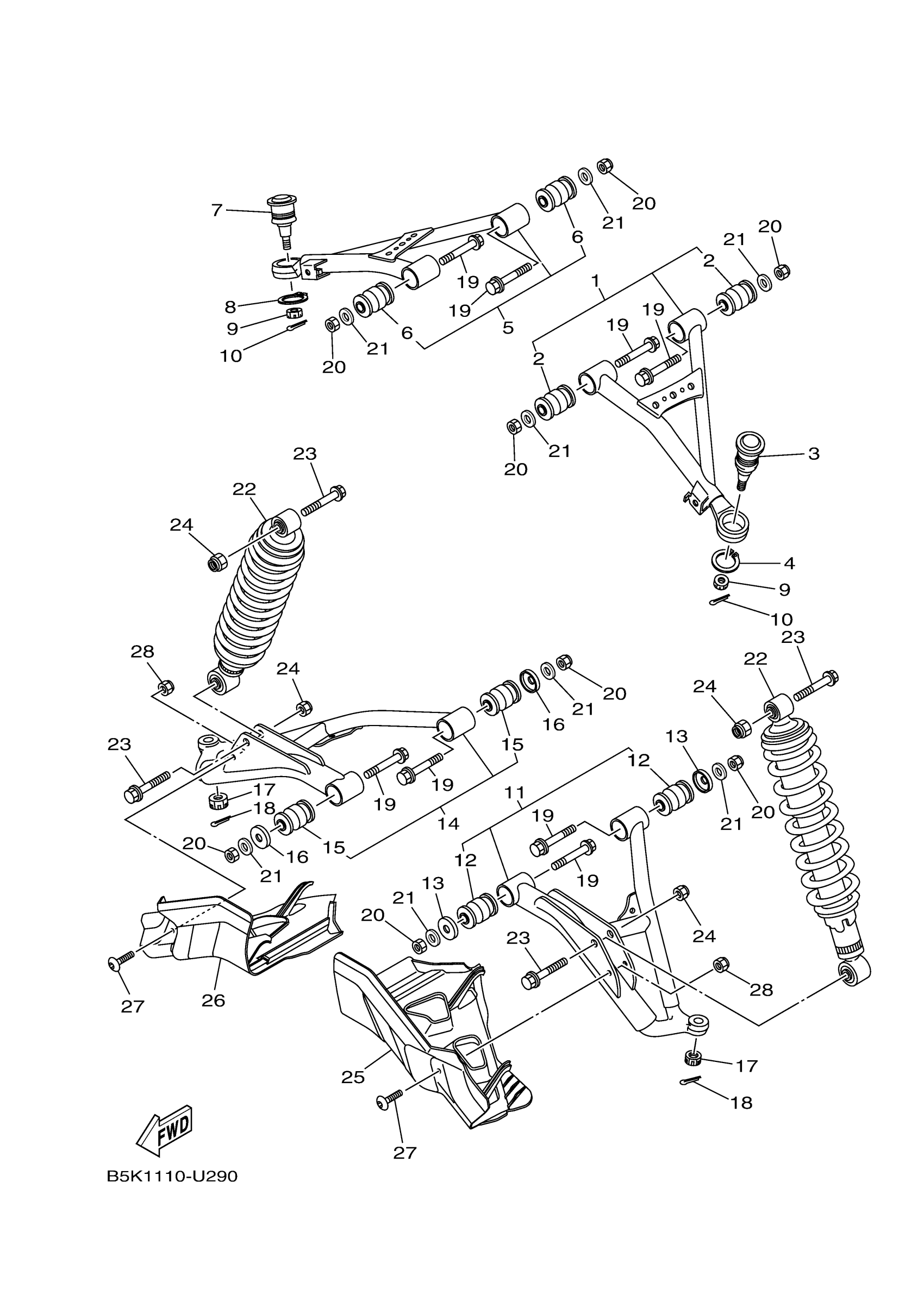

Yamaha YFM70KPASG (KODIAK 700 EPS) BVGB 2025 FRONT SUSPENSION & WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM CO

1HP-F3540-01-00

$44.50

2

BUSH

1HP-F3526-00-00

$20.42

3

BALL JOINT 2

3B4-23579-01-00

$70.02

4

CIRCLIP(4A6)

99009-30400-00

$6.11

5

FRONT UPPER ARM CO

1HP-F3550-01-00

Unavailable

6

BUSH

1HP-F3526-00-00

$20.42

7

BALL JOINT 2

3B4-23579-01-00

$70.02

8

CIRCLIP(4A6)

99009-30400-00

$6.11

9

NUT, CASTLE

90171-12001-00

$2.66

10

PIN, COTTER

91490-25020-00

$2.73

11

FRONT LOWER ARM CO

1HP-F3570-11-00

$57.70

12

BUSH

1HP-F3526-00-00

$20.42

13

WASHER

5KM-22149-10-00

$5.96

14

FRONT LOWER ARM CO

1HP-F3580-11-00

$59.36

15

BUSH

1HP-F3526-00-00

$20.42

16

WASHER

5KM-22149-10-00

$5.96

17

NUT, CASTLE

90171-12001-00

$2.66

18

PIN, COTTER

91490-25020-00

$2.73

19

BOLT, FLANGE

90105-10484-00

Unavailable

20

NUT, S/L FLANGE

95602-10200-00

Unavailable

21

WASHER, PLATE

90201-10035-00

Unavailable

22

SHOCK ABSORBER ASS

2SM-F3350-00-00

Unavailable

23

BOLT, FLANGE

90105-10131-00

Unavailable

24

NUT, SELF-LOCKING

90185-10012-00

Unavailable

25

COVER, UNDER 1

1HP-F3123-01-00

Unavailable

26

COVER, UNDER 2

1HP-F3133-01-00

Unavailable

27

BOLT,HEX SKT HEAD

90111-06814-00

Unavailable

28

NUT, NYLON

95707-06300-00

Unavailable
