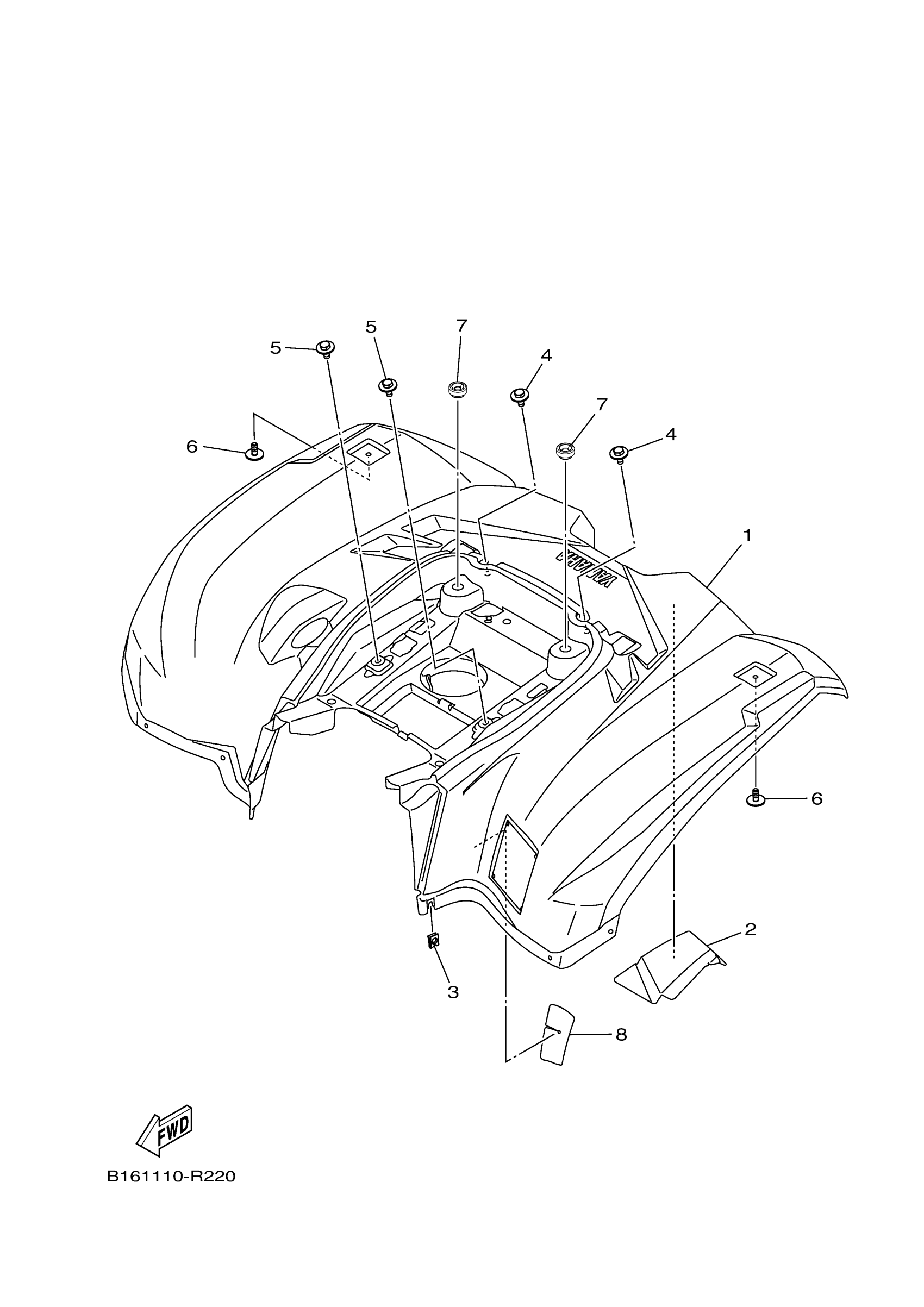

Yamaha YFM70KPAHL (KODIAK 700 EPS 4WD) 2SMB 2017 REAR FENDER Diagram

#

Description

Price

1

REAR FENDER ASSY

B16-F1600-20-00

$182.09

2

PROTECTOR

B16-21652-00-00

$22.21

3

NUT, SPRING(4ES)

90183-06069-00

$5.69

4

BOLT, WITH WASHER

90119-06152-00

$2.56

5

BOLT, WITH WASHER

90119-06152-00

$2.56

6

BOLT, WITH WASHER

90119-06152-00

$2.56

7

GROMMET

90480-16807-00

$1.31

8

SEAL

B16-F1669-02-00

$2.81
