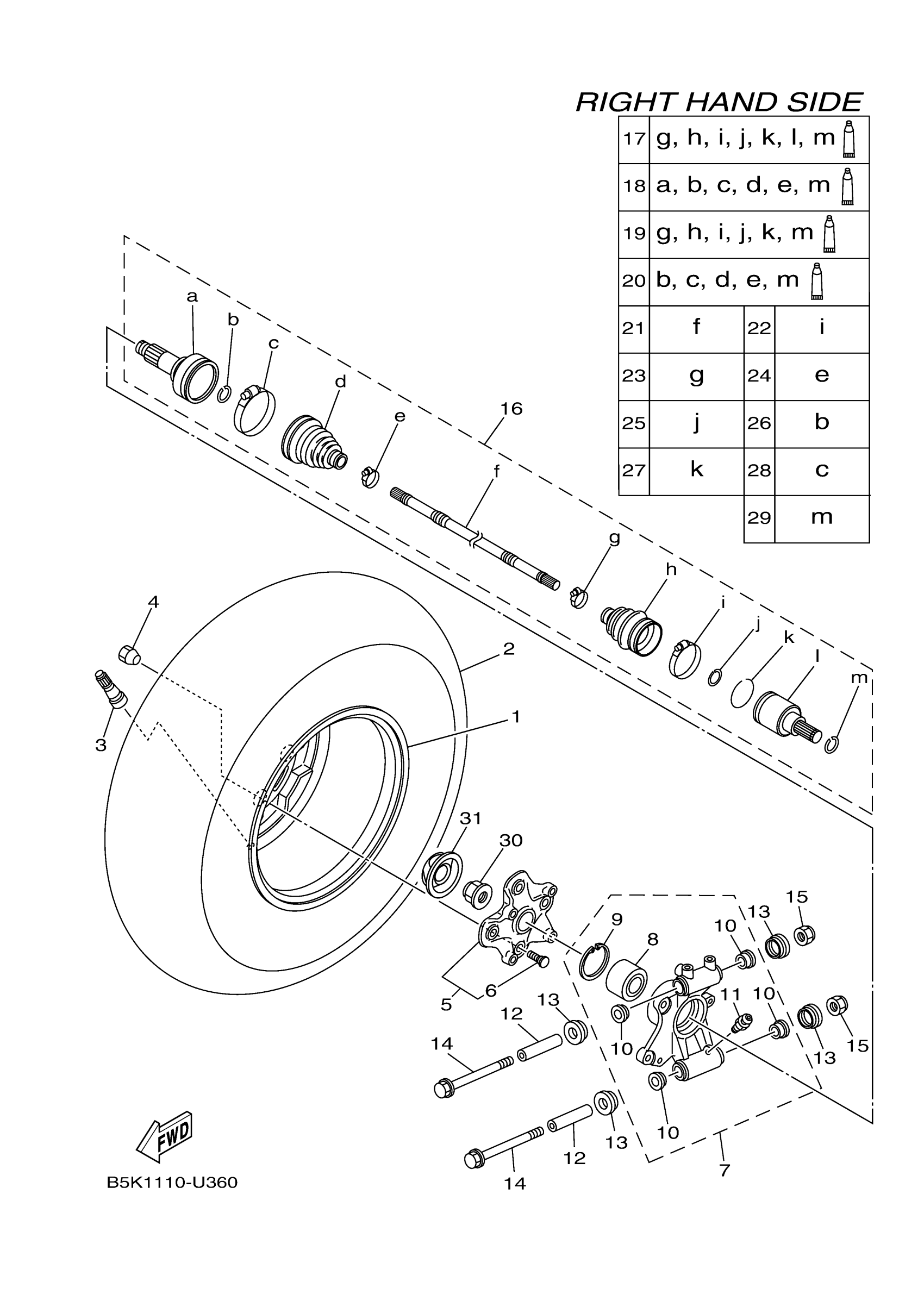

Yamaha YFM70KDXTG (KODIAK 700) B6KV 2026 REAR WHEEL 2 Diagram

#

Description
Price

1

REAR WHEEL COMP.

B16-F5390-00-00

$179.94

2

AT25X10.00-12 MU20

94110-12814-00

$228.43

3

VALVE, RIM

93900-00812-00

$7.49

4

NUT

90179-10020-00

$5.14

5

HUB ASSY 2

B16-F510D-03-00

$51.07

6

BOLT, SERRATION

90114-10014-00

$2.74

7

REAR KNUCKLE ASSY.

2BG-F532F-01-00

$130.67

8

BEARING

93305-00602-00

$98.89

9

CIRCLIP

99009-55500-00

$7.26

10

BUSH, SOLID(2NL)

90381-17067-00

$12.49

11

NIPPLE, GREASE

93700-06M03-00

$7.15

12

SPACER

5KM-23448-00-00

$15.04

13

COVER, THRUST 1

3JN-23517-00-00

$3.92

14

BOLT, FLANGE

90105-10212-00

$5.62

15

NUT, SELF-LOCKING

90185-10012-00

$2.98

16

REAR DRIVE SHAFT A

B16-2531H-01-00

$237.59

17

DOUBLE OFF SET JOI

B16-2530V-01-00

$172.84

18

BALL JOINT SET

28P-2510F-10-00

$416.38

19

BOOT SET(DOUBLE OF

B16-2510H-01-00

$66.45

20

BOOT SET (BALL JOI

28P-2510G-10-00

$52.34

21

SHAFT

B16-2518E-10-00

$87.80

22

BOOT BAND(DOUBLE O

B16-2511H-00-00

$10.02

23

BOOT BAND (SMALL)

B16-2512G-00-00

$7.02

24

BOOT BAND (SMALL)

28P-2512G-00-00

$14.25

25

SNAP RING

B16-2512J-00-00

$3.25

26

CIRCLIP

3B4-2512H-00-00

$5.12

27

CIRCLIP

B16-25182-00-00

$3.11

28

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

$13.06

29

CLIP, SPRING

3B4-2536E-00-00

$6.43

30

NUT

90179-20016-00

$11.20

31

CAP, WHEEL

1HP-F512A-00-00

$1.74
