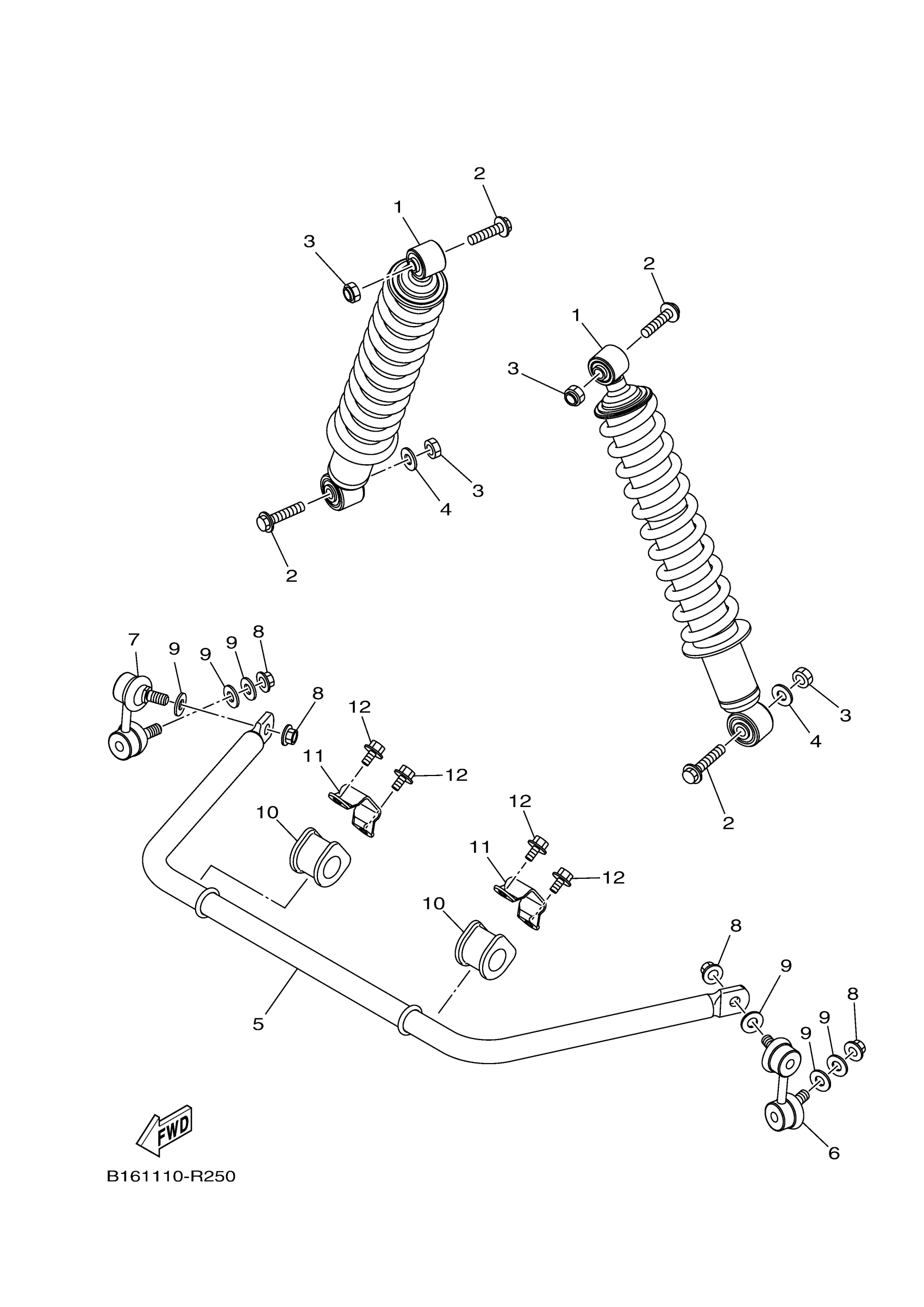

Yamaha YFM70KDXTG (KODIAK 700) B6KV 2026 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

B16-F2210-00-00

$192.06

2

BOLT, FLANGE

90105-10131-00

$5.14

3

NUT, SELF-LOCKING

90185-10012-00

$2.98

4

WASHER, PLATE

90201-10035-00

$3.56

5

BAR, STABILIZER

1HP-G7491-01-00

$56.18

6

JOINT, STABILIZER 1

16B-2385L-10-00

$62.01

7

JOINT, STABILIZER 2

16B-2385M-10-00

$62.95

8

NUT, S/L FLANGE

95602-10200-00

$2.29

9

WASHER, PLATE

90201-10035-00

$3.56

10

BUSH, STABILIZER F

1HP-F386G-00-00

Unavailable

11

COVER, STABILIZER

1HP-F386H-00-00

$3.91

12

BOLT, FLANGE

95817-08014-00

$1.94
