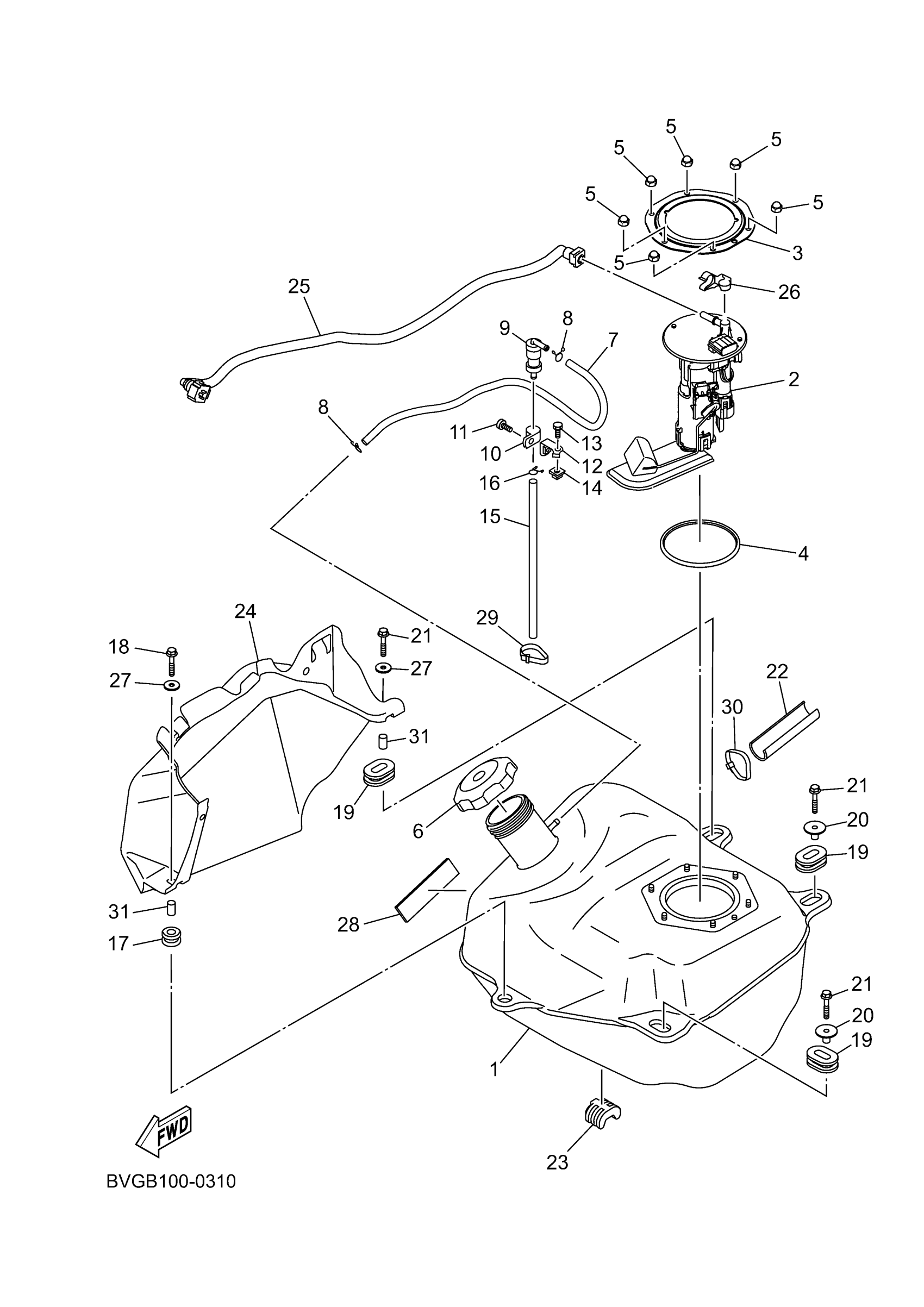

Yamaha YFM70KDXTG (KODIAK 700) B6KV 2026 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

B16-F4110-00-00

$193.85

2

FUEL PUMP COMP.

BDW-13907-00-00

$542.77

3

BRACKET, FUEL PUMP

3B4-24491-00-00

$18.97

4

O-RING

1S3-24486-00-00

$15.04

5

NUT (J17)

95380-06800-00

$6.74

6

CAP ASSY

BVG-24610-00-00

$26.60

7

HOSE (L495)

90445-09841-00

$10.92

8

CLIP

90467-090A2-00

$2.51

9

ROLL OVER VALVE AS

BFE-F4180-00-00

$15.92

10

CLAMP

90464-15014-00

$1.91

11

SCREW, BINDING

98907-05012-00

$6.18

12

BRACKET, CANISTOR

BFE-F419F-00-00

$5.60

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.91

14

NUT, SPRING

90183-061A3-00

$7.12

15

HOSE (L380)

90445-09840-00

$5.46

16

CLIP

90467-090A2-00

$2.51

17

GROMMET (4V1)

90480-18290-00

$7.02

18

BOLT, FLANGE DEEP RECESS

95D32-06035-00

$0.42

19

GROMMET(38W)

90480-01400-00

$10.06

20

COLLAR

90387-07021-00

$6.26

21

BOLT, FLANGE DEEP RECESS

95D32-06035-00

$0.42

22

DAMPER, LOCATING 2

B16-F4182-04-00

$2.75

23

DAMPER, LOCATING 1

B16-F4181-00-00

$1.72

24

PROTECTOR, FUEL TA

B16-F4141-00-00

$10.55

25

PIPE, FUEL 1

B16-13971-01-00

$88.88

26

CLAMP

90464-14004-00

$5.40

27

WASHER, PLATE

90201-06036-00

$6.26

28

DAMPER 1

2PA-21541-00-00

$1.54

29

CLAMP

90464-25003-00

$0.80

30

CLAMP

90464-32801-00

$1.38

31

COLLAR

90387-06M19-00

$3.77
