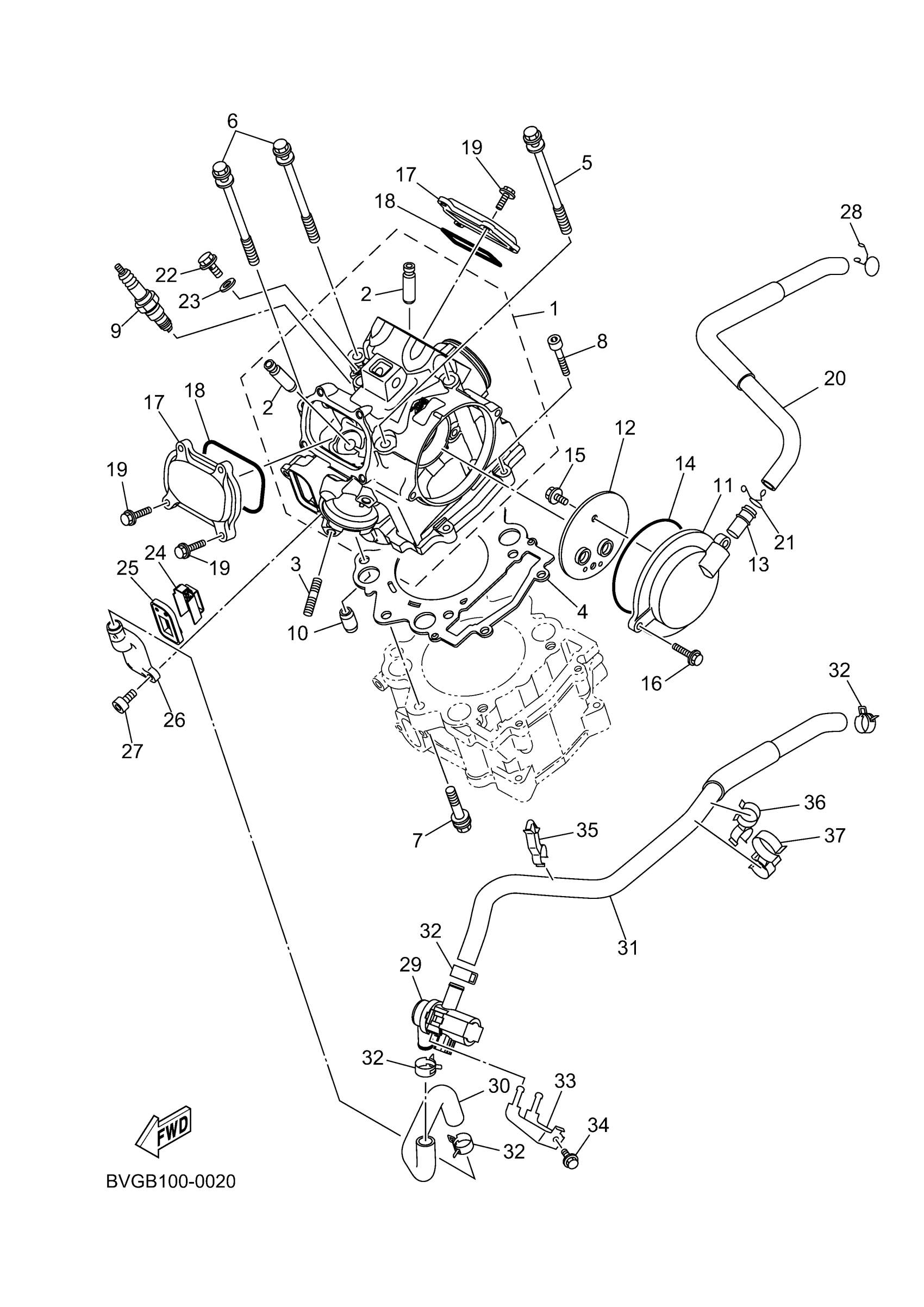

Yamaha YFM70KDXTG (KODIAK 700) B6KV 2026 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

2BG-11102-00-00

$714.37

2

GUIDE, INTAKE VALVE

4G0-11133-11-00

$45.32

3

BOLT, STUD

95612-08625-00

$4.69

4

GASKET, CYLINDER HEAD 1

3B4-11181-00-00

$47.74

5

BOLT

90109-09003-00

$9.10

6

BOLT

90109-09002-00

$9.10

7

BOLT

90109-09005-00

$7.40

8

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.82

9

PLUG, SPARK (NGK CPR7EA)

CPR-7EA90-00-00

$8.77

10

PIN, DOWEL(4XL)

93612-16254-00

$4.37

11

COVER, CYLINDER HEAD SIDE 1

3B4-11185-00-00

$27.89

12

PLATE, BREATHER

3B4-11165-10-00

$5.31

13

PIPE, BREATHER 2

371-11167-01-00

$10.35

14

O-RING (70R)

93210-96601-00

$10.68

15

BOLT, FLANGE

95022-06012-00

$3.00

16

BOLT, FLANGE

95022-06020-00

$3.32

17

COVER, CYLINDER HEAD SIDE 2

1S3-11186-00-00

$26.46

18

O-RING (14X)

93210-78544-00

$10.65

19

BOLT, FLANGE

95022-06020-00

$3.32

20

PIPE, BREATHER 1

B4F-E1166-00-00

$9.58

21

CLIP

90467-140A4-00

$8.31

22

BOLT, UNION

90401-08004-00

$6.31

23

GASKET

90430-08119-00

$4.70

24

PLATE

2BG-1482K-00-00

$13.29

25

REED VALVE ASS

5JW-14890-00-00

$58.68

26

CAP, CASE

5JW-14889-00-00

$62.98

27

BOLT,SOCKET HEAD

91314-06020-00

$2.05

28

CLIP

90467-150A2-00

$6.25

29

AIR CUT VALVE ASSY

2MB-14840-00-00

$95.18

30

HOSE, BEND 2

BVG-E4882-00-00

$9.18

31

HOSE, BEND 3

B16-E4883-00-00

$15.95

32

CLIP(3TB)

90467-17128-00

$6.68

33

STAY

2BG-F117A-00-00

Unavailable

34

BOLT, FLANGE

95817-06012-00

$1.49

35

CLAMP

90464-17006-00

$6.69

36

CLAMP

90464-18015-00

$2.42

37

CLAMP(3XC)

90464-28153-00

$2.34
