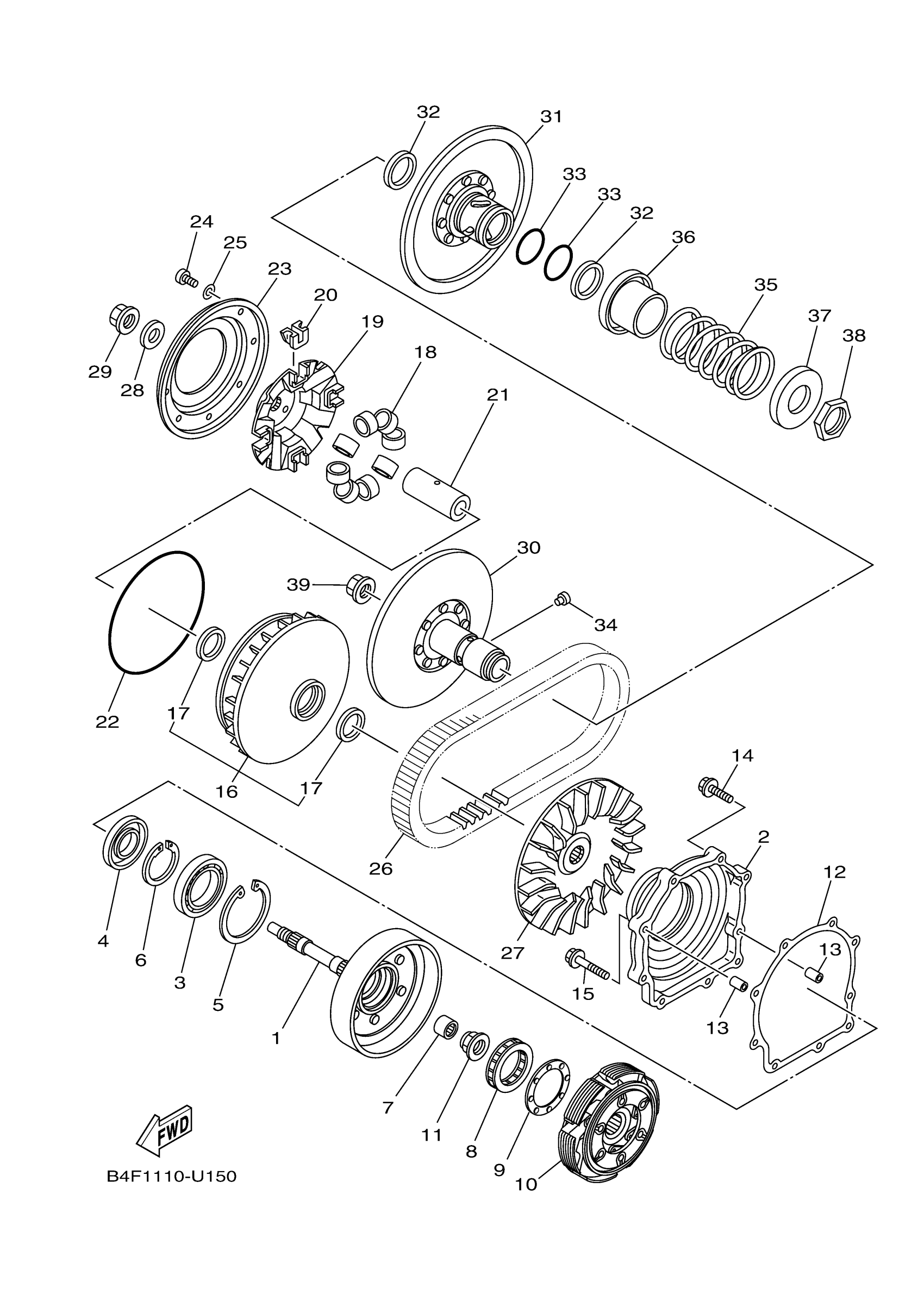

Yamaha YFM70KDXTG (KODIAK 700) B6KV 2026 CLUTCH Diagram

#

Description
Price

1

CLUTCH HOUSING COMP.

1HP-16611-00-00

$279.57

2

HOUSING, BEARING 1

3B4-15163-00-00

$97.02

3

BEARING

93316-01003-00

$91.41

4

OIL SEAL

93102-35004-00

$19.11

5

CIRCLIP (70R)

93420-80066-00

$11.82

6

CIRCLIP

93410-46079-00

$5.42

7

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$31.48

8

BEARING, ONE WAY

4SH-16664-00-00

$123.47

9

RING, SEAL

1HP-16717-00-00

$27.28

10

CLUTCH CARRIER ASS

2PG-16620-00-00

$280.07

11

NUT

90179-22021-00

$22.37

12

GASKET, COVER PINION 2

3B4-15463-00-00

$11.12

13

PIN, DOWEL(2VG)

99530-10116-00

$3.37

14

BOLT, FLANGE

95022-06030-00

$1.40

15

BOLT, FLANGE

95022-06040-00

$2.93

16

PRIMARY SLIDING SHEAVE COMP.

3B4-17606-00-00

$251.05

17

OIL SEAL

93101-35001-00

$18.97

18

WEIGHT

B5K-17632-00-00

$8.11

19

CAM

3B4-17623-02-00

$44.08

20

SLIDER

16B-17653-00-00

$8.93

21

COLLAR

3B4-17645-00-00

$84.73

22

O-RING

93211-59001-00

$18.06

23

STOPPER

4WV-17639-10-00

$28.45

24

SCREW, PAN HEAD

90157-04006-00

$4.15

25

WASHER, PLATE(4HC)

90201-047R9-00

$2.38

26

V-BELT

3B4-17641-00-00

$131.18

27

SHEAVE, PRIMARY FIXED

3B4-17611-00-00

$149.68

28

WASHER, PLATE

90201-190T7-00

$7.51

29

NUT

90179-16005-00

$11.06

30

SECONDARY FIXED SHEAVE COMP.

3B4-17660-10-00

$453.00

31

SECONDARY SLIDING SHEAVE

3B4-17670-10-00

$335.83

32

OIL SEAL

93104-41119-00

$14.18

33

O-RING (10L)

93210-44545-00

$11.47

34

PIN, GUIDE

4CW-17664-00-00

$6.72

35

SPRING, COMPRESSION

90501-650A0-00

$39.58

36

SEAT, SECONDARY SPRING

4WV-17684-00-00

$47.77

37

SEAT, SPRING

4WV-17644-00-00

$25.93

38

NUT (5G3)

90170-36279-00

$13.51

39

NUT

90179-16005-00

$11.06
