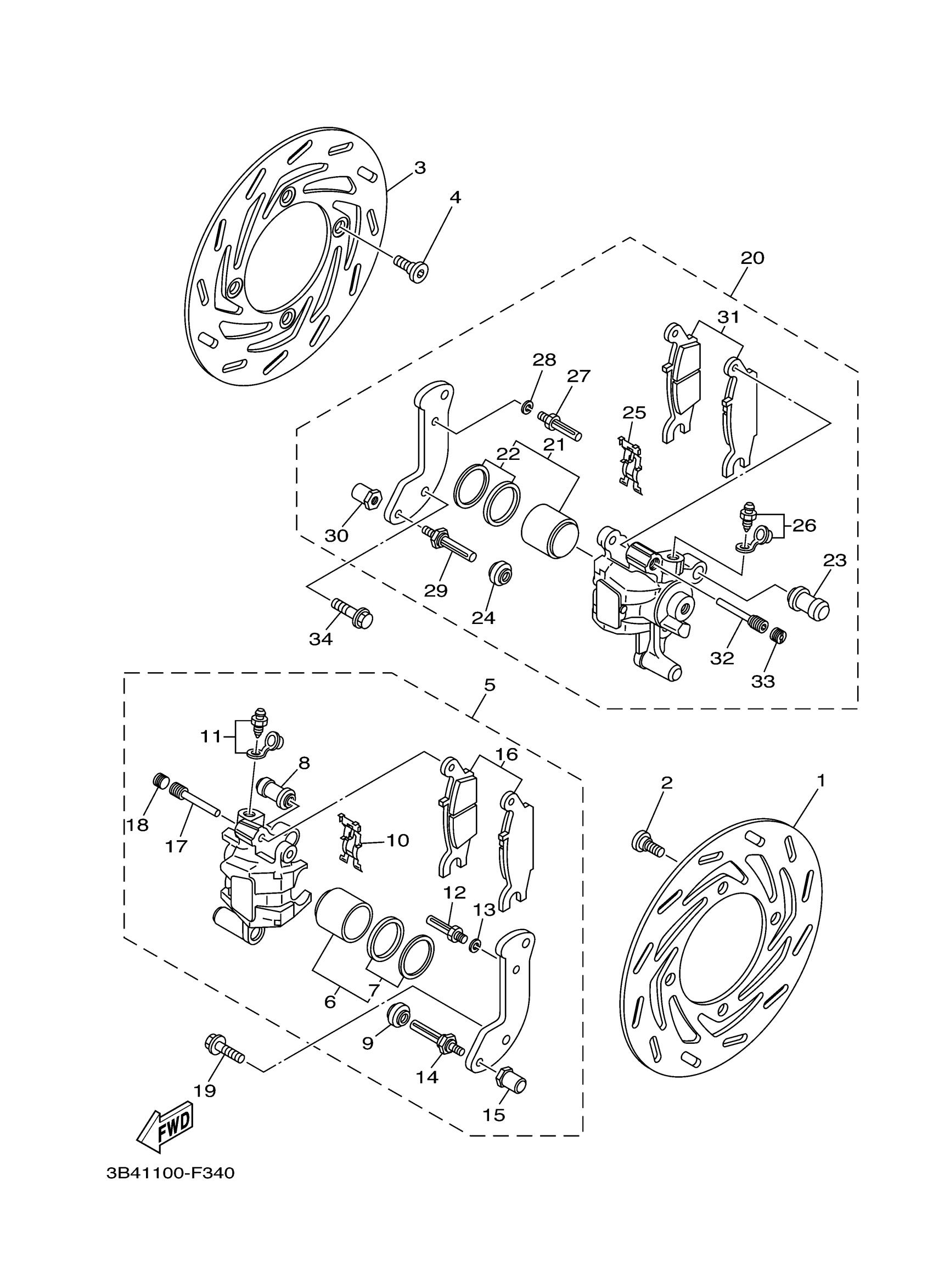

Yamaha YFM70KDXSG (KODIAK 700) B6KS 2025 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

1HP-F582T-00-00

Unavailable

2

BOLT

90109-08087-00

$2.47

3

DISC, BRAKE (LEFT)

1HP-F582T-00-00

Unavailable

4

BOLT

90109-08087-00

$2.47

5

CALIPER ASSY LEFT

3B4-2580T-02-00

$246.97

6

PISTON ASSY, CALIPER

3B4-W0057-00-00

$66.68

7

CALIPER SEAL KIT

3B4-W0047-00-00

$11.69

8

BOOT 2

1UY-25937-51-00

$11.48

9

BOOT, CALIPER

3JD-25917-00-00

$7.03

10

SUPPORT, PAD

5DH-25919-00-00

$16.55

11

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

12

BOLT

1UY-25926-51-00

$3.11

13

WASHER, SPRING

1UY-25938-51-00

Unavailable

14

BOLT

3JD-25926-00-00

$5.99

15

NUT

3JD-25961-00-00

$6.46

16

BRAKE PAD KIT

3B4-W0045-00-00

Unavailable

17

PIN, PAD

5DH-25933-00-00

Unavailable

18

PLUG

5DH-25916-00-00

Unavailable

19

BOLT, FLANGE

90105-08161-00

Unavailable

20

CALIPER ASSY (RIGHT)

3B4-2580U-02-00

Unavailable

21

PISTON ASSY, CALIPER

3B4-W0057-00-00

$66.68

22

CALIPER SEAL KIT

3B4-W0047-00-00

$11.69

23

BOOT 2

1UY-25937-51-00

$11.48

24

BOOT, CALIPER

3JD-25917-00-00

$7.03

25

SUPPORT, PAD

5DH-25919-00-00

$16.55

26

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

27

BOLT

1UY-25926-51-00

$3.11

28

WASHER, SPRING

1UY-25938-51-00

Unavailable

29

BOLT

3JD-25926-00-00

$5.99

30

NUT

3JD-25961-00-00

$6.46

31

BRAKE PAD KIT

3B4-W0045-10-00

Unavailable

32

PIN, PAD

5DH-25933-00-00

Unavailable

33

PLUG

5DH-25916-00-00

Unavailable

34

BOLT, FLANGE

90105-08161-00

Unavailable
