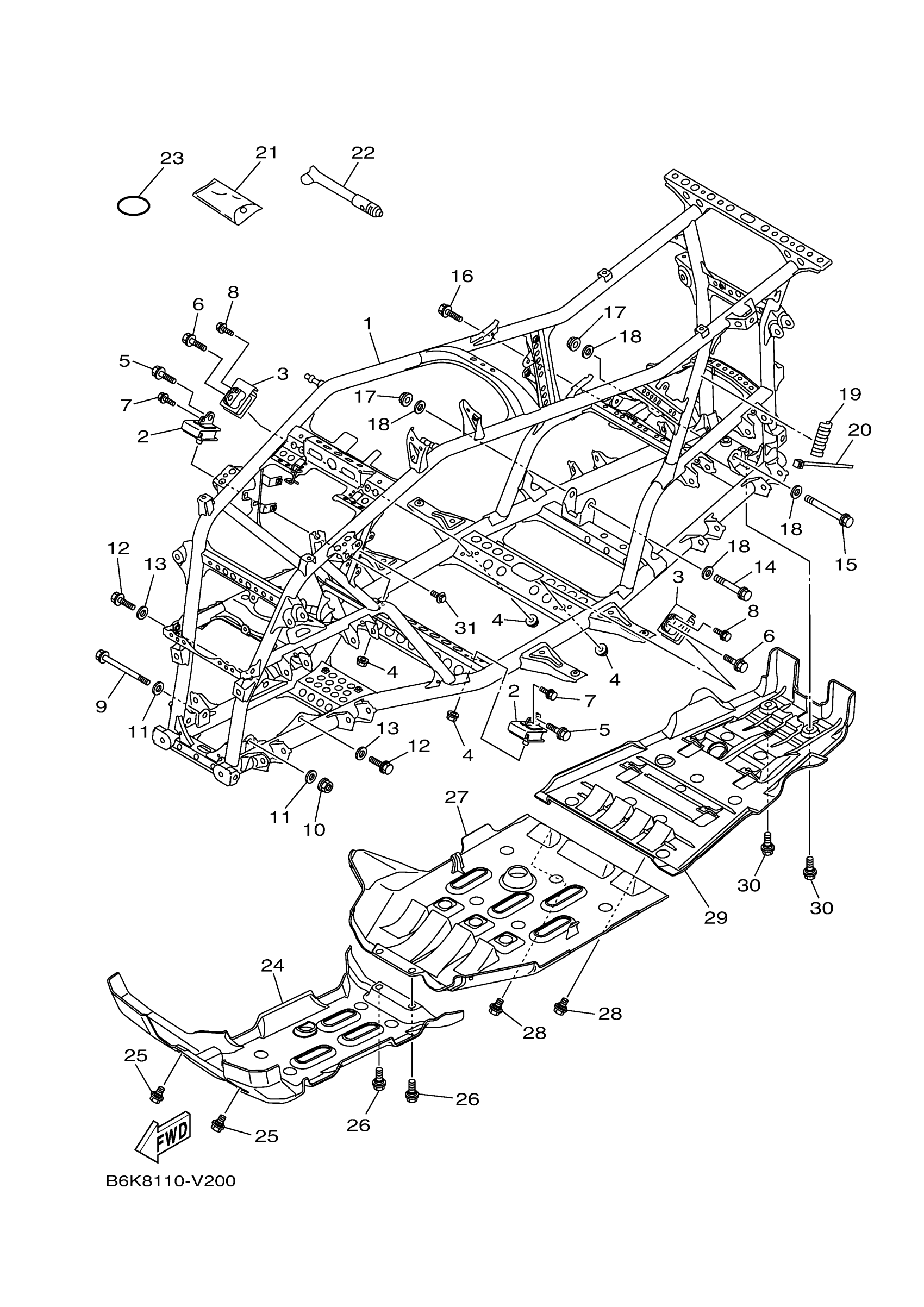

Yamaha YFM70KDXLR (KODIAK 700 4WD) B6K81 2020 FRAME Diagram
#
Description
Price
1
FRAME
B16-F1110-11-00
Unavailable
17
NUT, SELF-LOCKING
90185-12002-00
Unavailable
18
WASHER (6E9)
90201-12361-00
Unavailable
19
DAMPER
3B4-2113B-01-00
Unavailable
20
CLAMP(JN6)
90464-40825-00
Unavailable
21
TOOL KIT
2BG-F8100-00-00
Unavailable
22
GAUGE, AIR
1NV-2811A-01-00
Unavailable
23
O-RING (583 OIL CLEANER)
93210-64297-00
Unavailable
24
GUARD, ENGINE 1
B16-F147A-00-00
Unavailable
25
BOLT
90109-06202-00
Unavailable
26
BOLT
90109-06214-00
Unavailable
27
GUARD, ENGINE 2
1HP-F147E-02-00
Unavailable
28
BOLT
90109-06214-00
Unavailable
29
GUARD, ENGINE 3
B16-F147F-01-00
Unavailable
30
BOLT
90109-06202-00
Unavailable
31
BOLT, FLANGE
95817-06012-00
Unavailable
