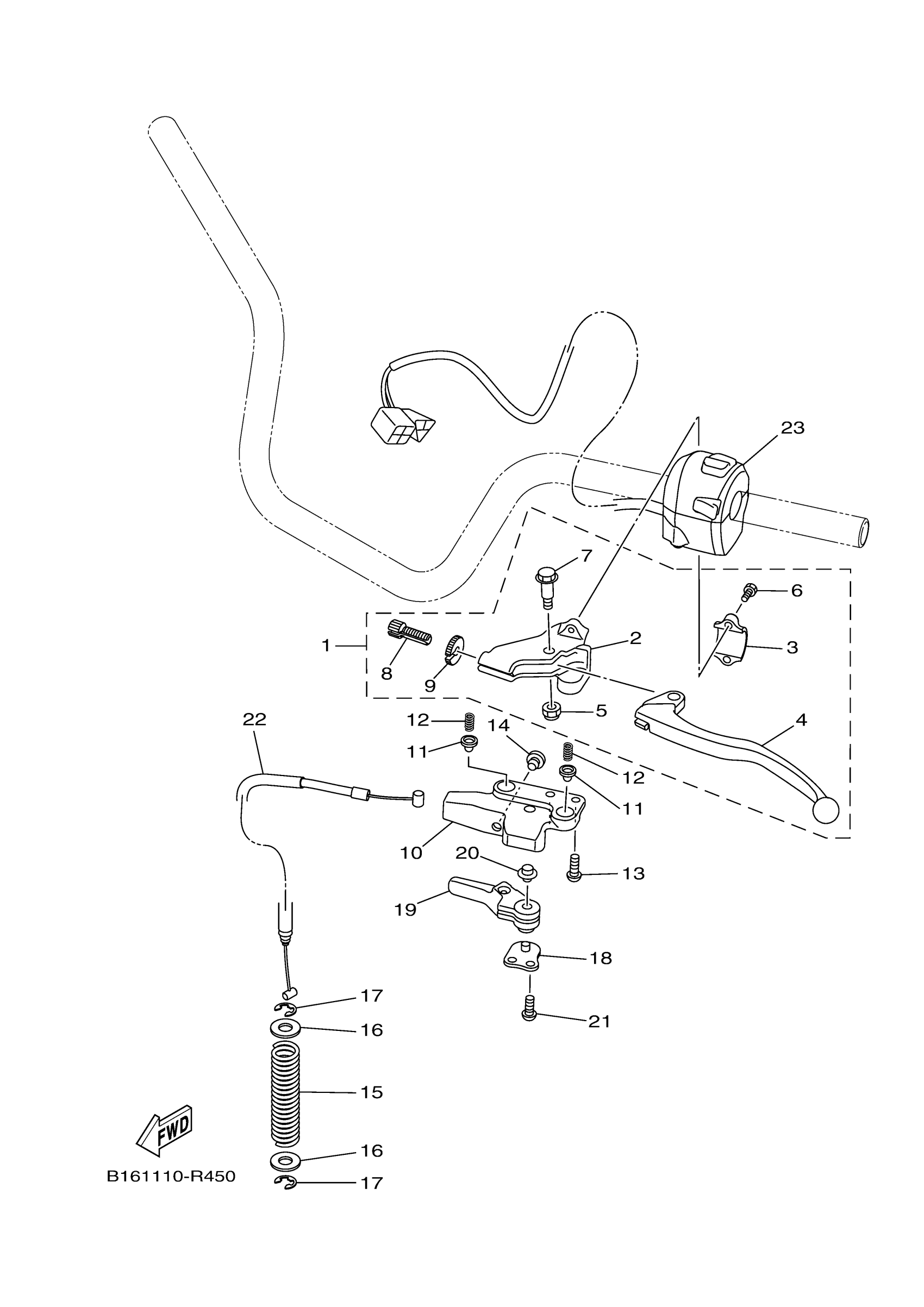

Yamaha YFM70KDXJR (KODIAK 700) B16G1 2018 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSY

B16-82910-01-00

Unavailable

2

HOLDER, LEVER 1

B16-82911-00-00

Unavailable

3

HOLDER, LEVER LOWER 1

5TG-82913-00-00

$9.99

4

LEVER 1

2HT-83912-01-00

$39.99

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

BOLT

90101-05033-00

$2.39

7

BOLT(1FG)

90109-06798-00

$8.49

8

BOLT

90123-08002-00

$10.49

9

NUT

90179-08030-00

$5.49

10

BRACKET, LEVER

B16-25727-00-00

Unavailable

11

STOPPER, LEVER

B16-26154-00-00

$3.40

12

SPRING, COMPRESSION (22N)

90501-12743-00

$4.14

13

BOLT, BUTTON HEAD

92012-06016-00

$8.49

14

PLUG

90338-07007-00

$3.35

15

SPRING, COMPRESSIO

90501-300A1-00

Unavailable

16

WASHER, PLATE

90201-10035-00

Unavailable

17

CIRCLIP(2R6)

99001-08600-00

Unavailable

18

PLATE, GUIDE

5D3-25689-00-00

Unavailable

19

LEVER 1

B16-26164-00-00

Unavailable

20

COLLAR, LEVER 2

5TG-83923-00-00

Unavailable

21

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

22

CABLE, CONTROL 1

B16-2637E-00-00

Unavailable

23

SWITCH, HANDLE 3

1S3-83973-12-00

Unavailable
