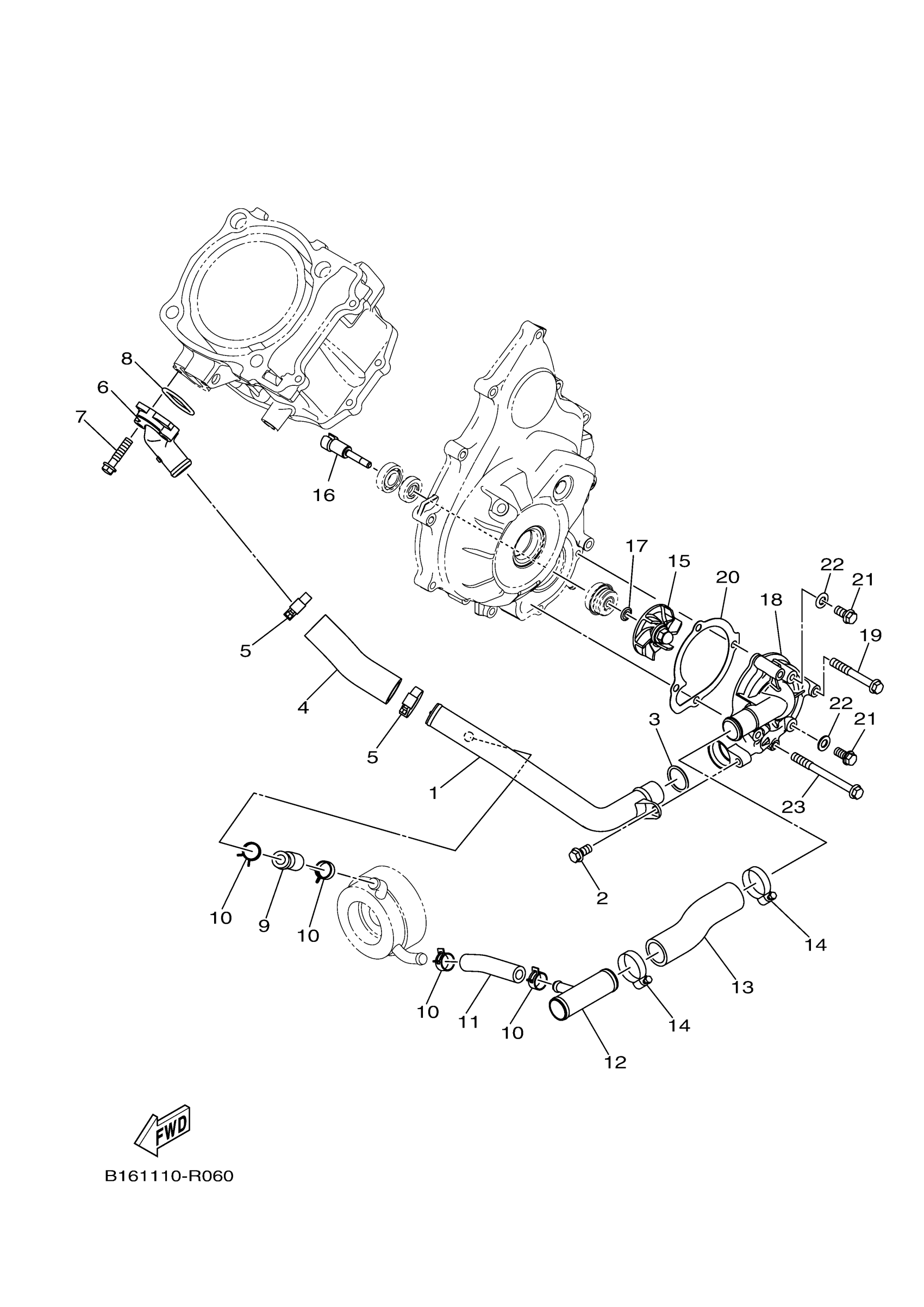

Yamaha YFM70KDXJG (KODIAK 700) B16G 2018 WATER PUMP Diagram

#

Description
Price

1

PIPE 1

B16-E2481-00-00

$39.82

2

BOLT 1

2MB-E5481-60-00

$0.94

3

O-RING

2MB-E2439-00-00

$4.35

4

HOSE,3

B16-E243F-00-00

$45.34

5

CLAMP, HOSE 1

2MB-E1387-00-00

$10.37

6

JOINT 1

2MB-E2469-00-00

$28.38

7

BOLT 1

2MB-E5481-20-00

$0.95

8

O-RING

2MB-E2843-00-00

$3.84

9

HOSE, 4

B16-E244G-00-00

$8.97

10

CLIP

B16-E2486-00-00

$2.15

11

HOSE 2

B16-E243E-00-00

$10.25

12

PIPE 4

B16-E2484-00-00

$45.92

13

HOSE 6

B16-E244J-00-00

$28.37

14

CLAMP, HOSE 1

2MB-E1387-00-00

$10.37

15

IMPELLER, WATER PU

2MB-E2451-00-00

$32.50

16

SHAFT, IMPELLER

2MB-E2458-00-00

$44.34

17

SEAL, WATER PUMP

2MB-E243M-00-00

$5.93

18

COVER, HOUSING

B16-E2422-00-00

$79.48

19

BOLT 1

2MB-E5481-B0-00

$1.66

20

GASKET, HOUSING CO

2MB-E2428-00-00

$1.23

21

BOLT 1

2MB-E5481-60-00

$0.94

22

GASKET

2MB-E2435-00-00

$2.09

23

BOLT 1

2MB-E5481-70-00

$2.37
